Prelude Type-SH L4-2157cc 2.2L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

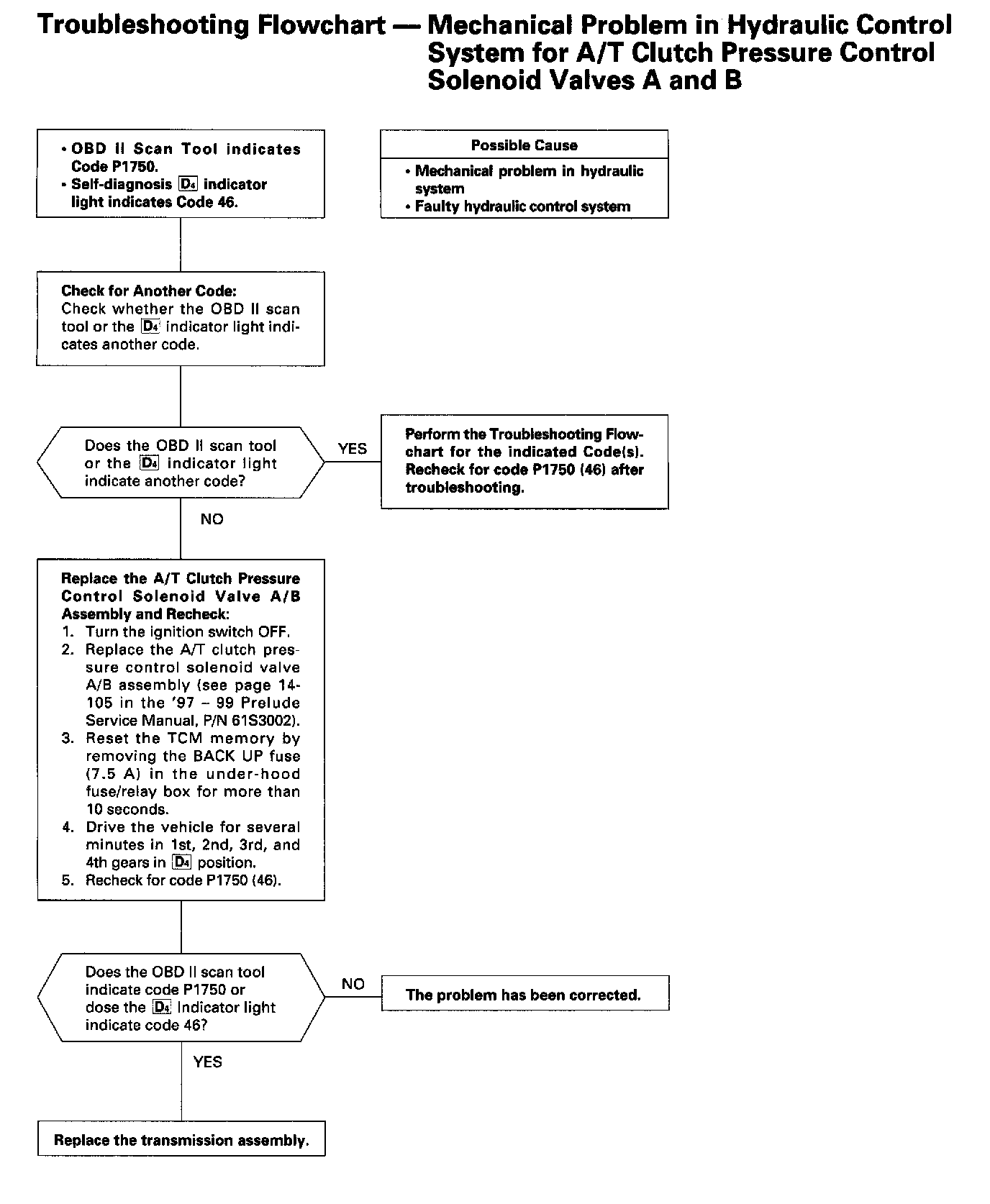

Trouble Shooting Flow Chart:
Trouble Shooting Flow Chart:
Trouble Shooting Flow Chart:
