Pinout Values and Diagnostic Parameters

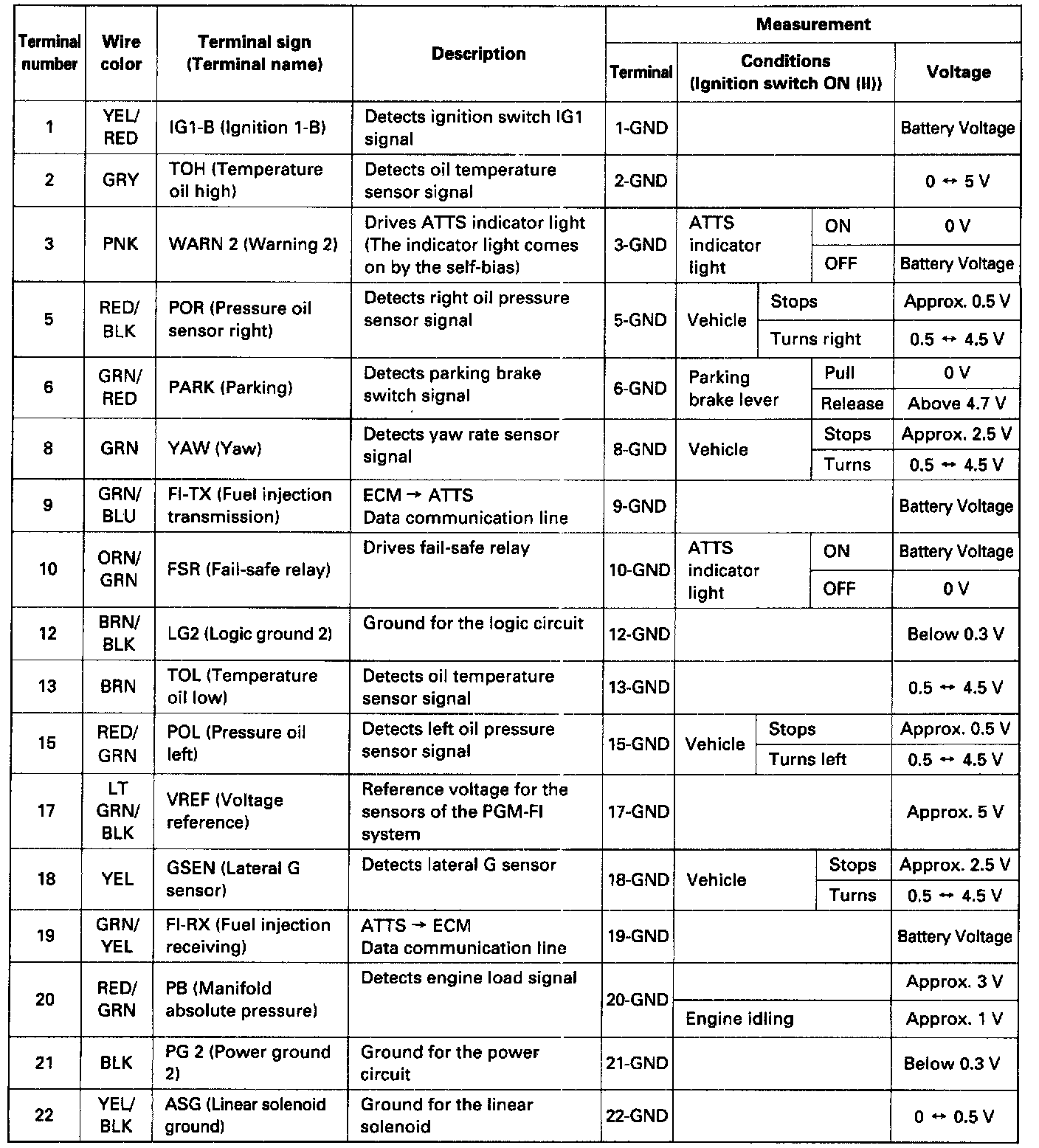

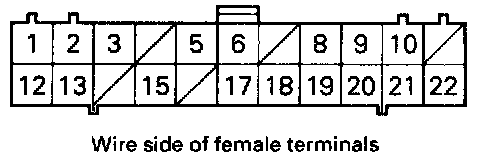

ATTS
CONTROL UNIT
22P CONNECTION

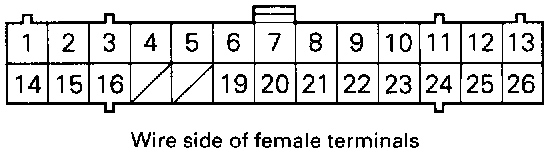

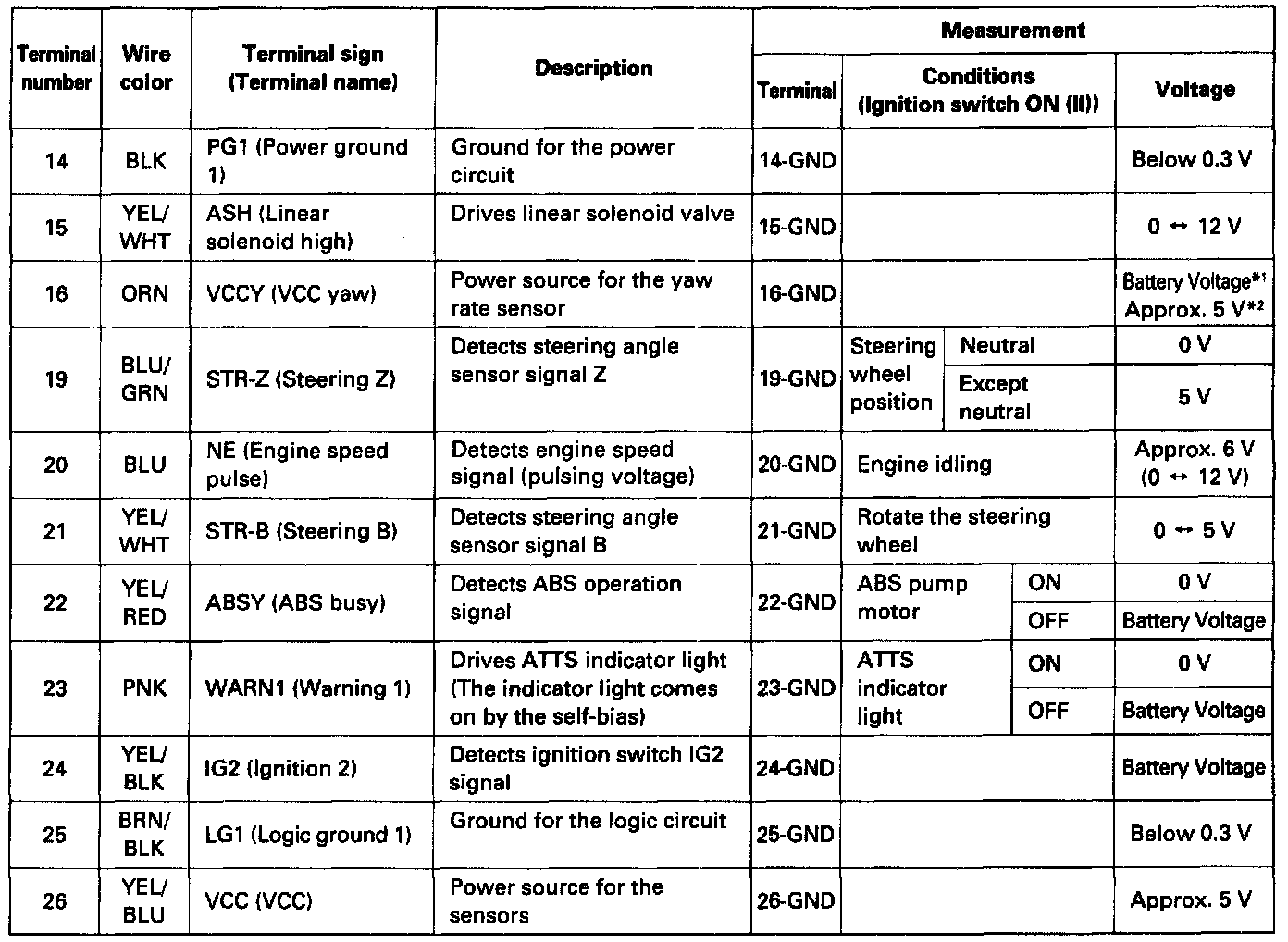

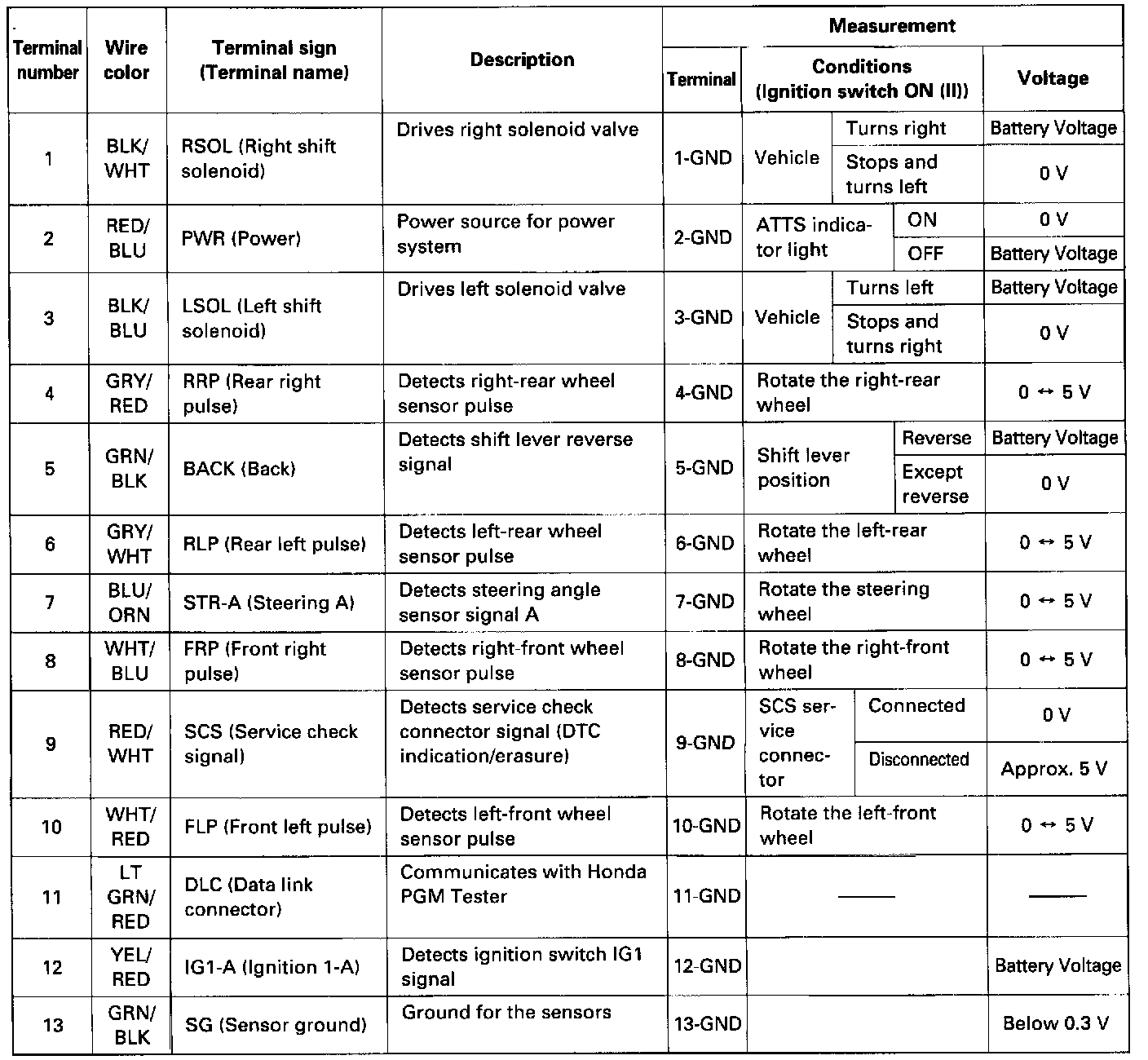

ATTS
CONTROL UNIT
26P CONNECTION
*1: '97 model
*2: '98 model
