P0325
DTC P0325: Malfunction in Knock Sensor Circuit1. Reset the ECM.
2. Start the engine. Hold the engine at 3,000 rpm with no load (in neutral) until the radiator fan comes on, then let it idle.
3. Hold the engine at 3,000 - 4,000 rpm for at least 60 seconds.
Is DTC P0325 indicated?
YES - Go to step 4.
NO - Intermittent failure, system is OK at this time. Check for poor connections or loose terminals at the knock sensor and at the ECM.
4. Turn the ignition switch OFF.
5. Disconnect the starter subharness 6P connector.

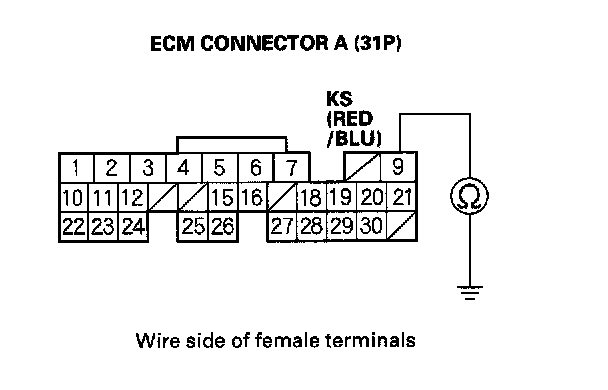

6. Check for continuity between ECM connector terminal A9 and body ground.
Is there continuity?
YES - Repair short in the wire between the ECM (A9) and the starter subharness 6P connector.
NO - Go to step 7.
7. Connect starter subharness 6P connector terminal No.5 to body ground with a jumper wire.
8. Check for continuity between body ground and ECM connector terminal A9.
Is there continuity?
YES - Go to step 9.
NO - Repair open in the wire between the ECM (A9) and the starter subharness 6P connector.
9. Check the starter subharness between the 6P connector and the knock sensor for an open or short. If it's OK, substitute a known-good knock sensor and recheck.
Is DTC P0325 indicated?
YES - Update the ECM if it does not have the latest software, or substitute a known-good ECM, then recheck. If the symptom/indication goes away with a known-good ECM, replace the original ECM.
NO - Replace the original knock sensor and/or starter subharness.
