Antenna: Service and Repair

Roof Antenna Replacement

1. Remove the rear part of headliner.

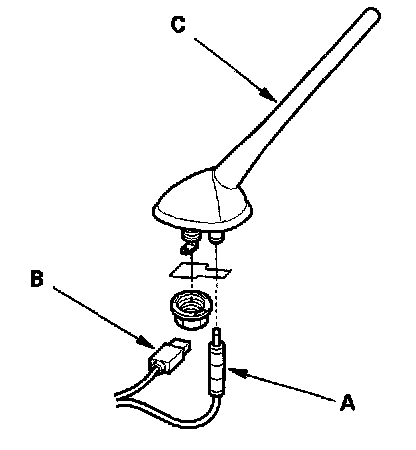

2. Disconnect the antenna lead connector (A) and 1P connector (B) from the roof antenna (C).
3. Remove the mounting nut and the antenna.
