Cruise Control Servo Cable: Service and Repair

Cruise Control Actuator/Cable Replacement

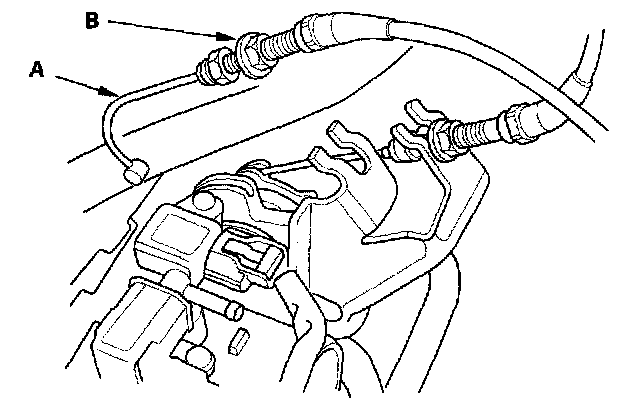

1. Fully open the cruise control link by hand, then remove the cruise control cable (A) from the link. Loosen the locknut (B), and remove the cable from the bracket.

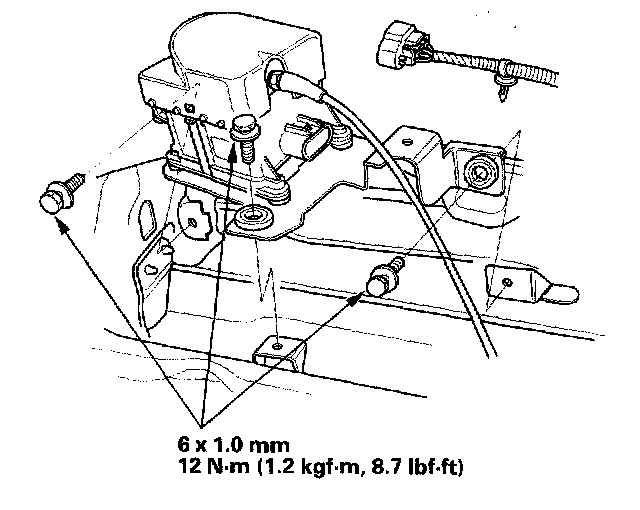

2. Disconnect the 4P connector, and remove the three bolts securing the cruise control actuator.

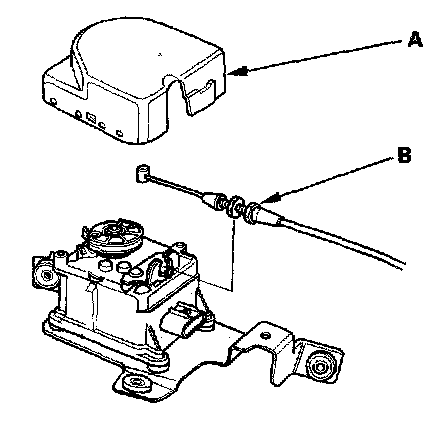

3. Remove the actuator cover (A), then remove the actuator cable (B) from the cruise control actuator.
4. Install in the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable.
