Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2002
>>
Civic Si L4-1998cc 2.0L DOHC (i-VTEC) PGM FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

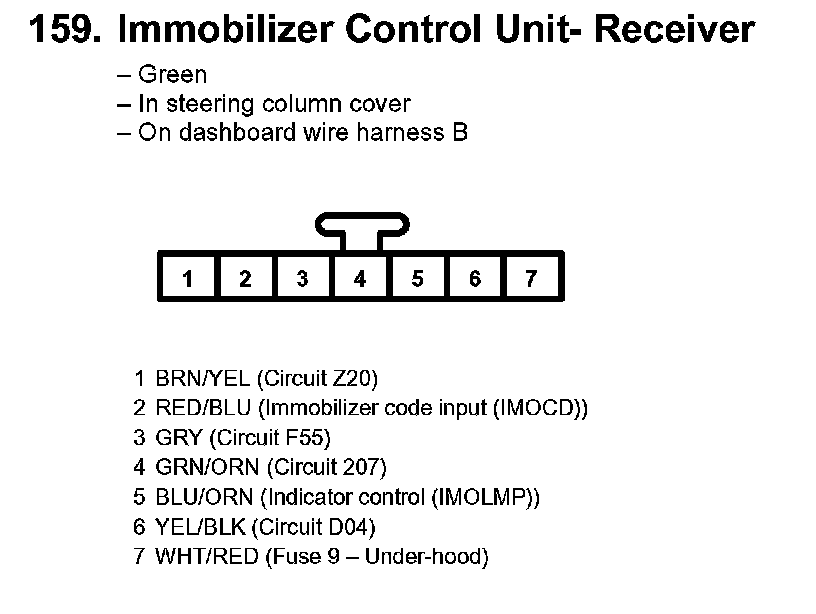

159. Immobilizer Control Unit-Receiver:

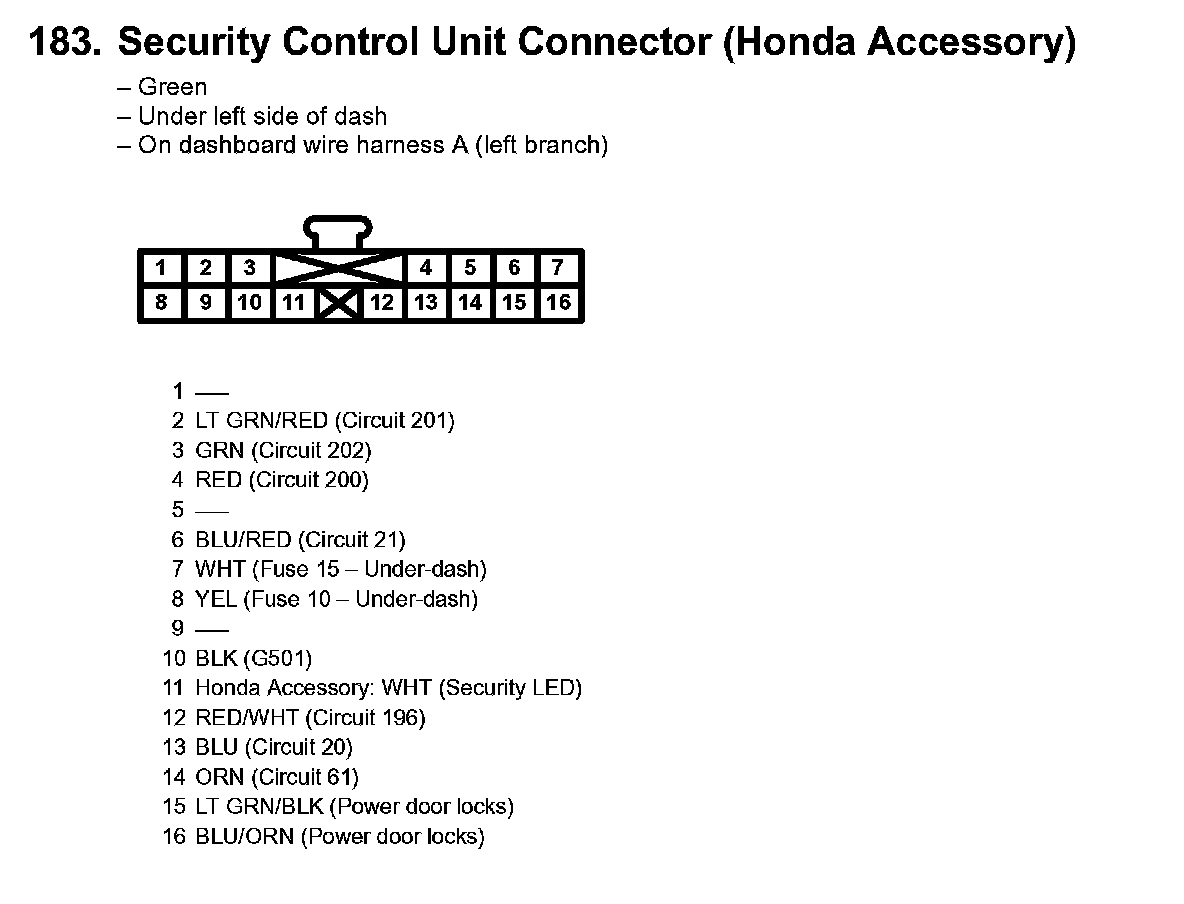

183. Security Control Unit Connector (Honda Accessory):
