Civic Si L4-1998cc 2.0L DOHC (i-VTEC) PGM FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

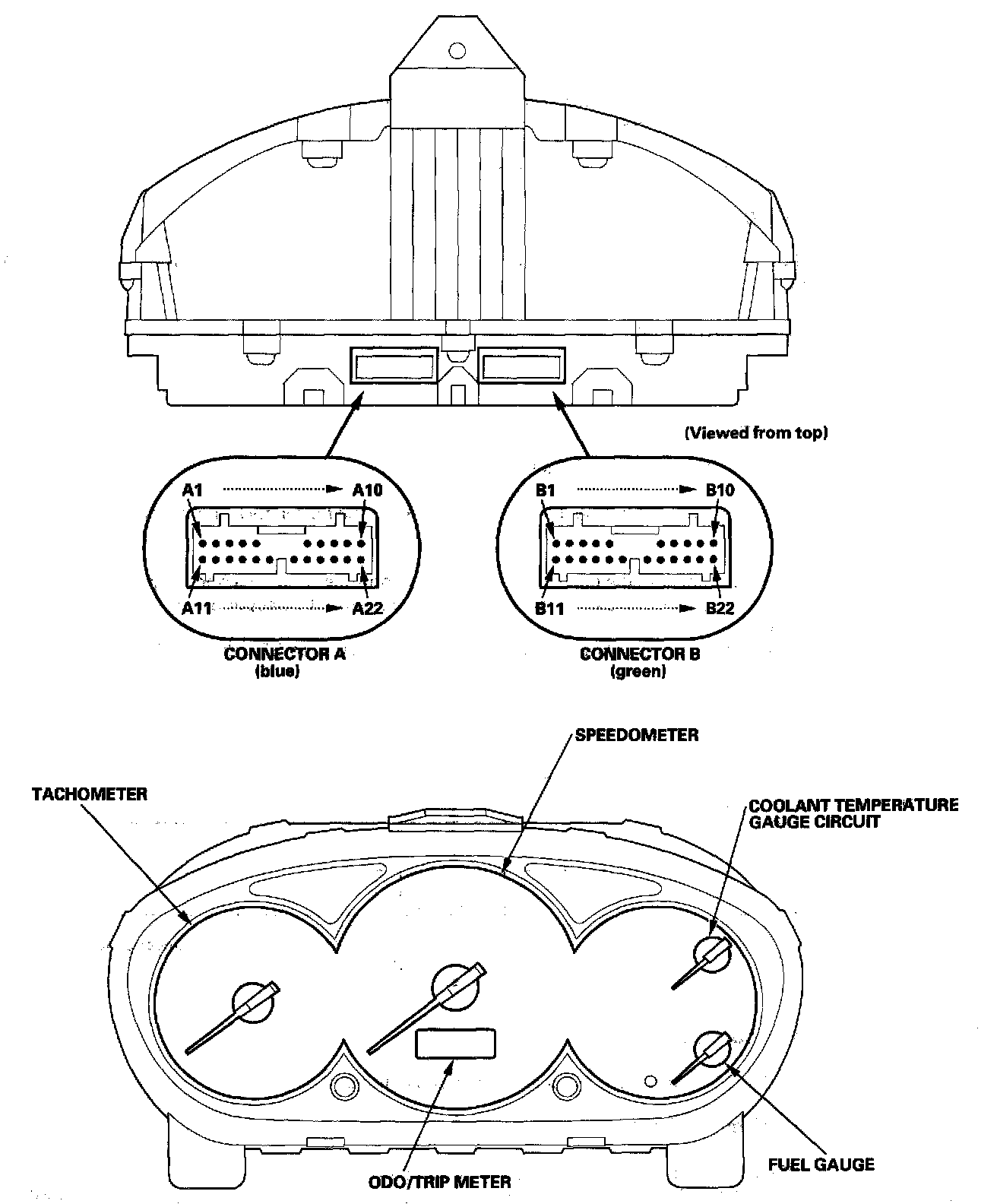

Instrument Cluster / Carrier
Instrument Cluster / Carrier

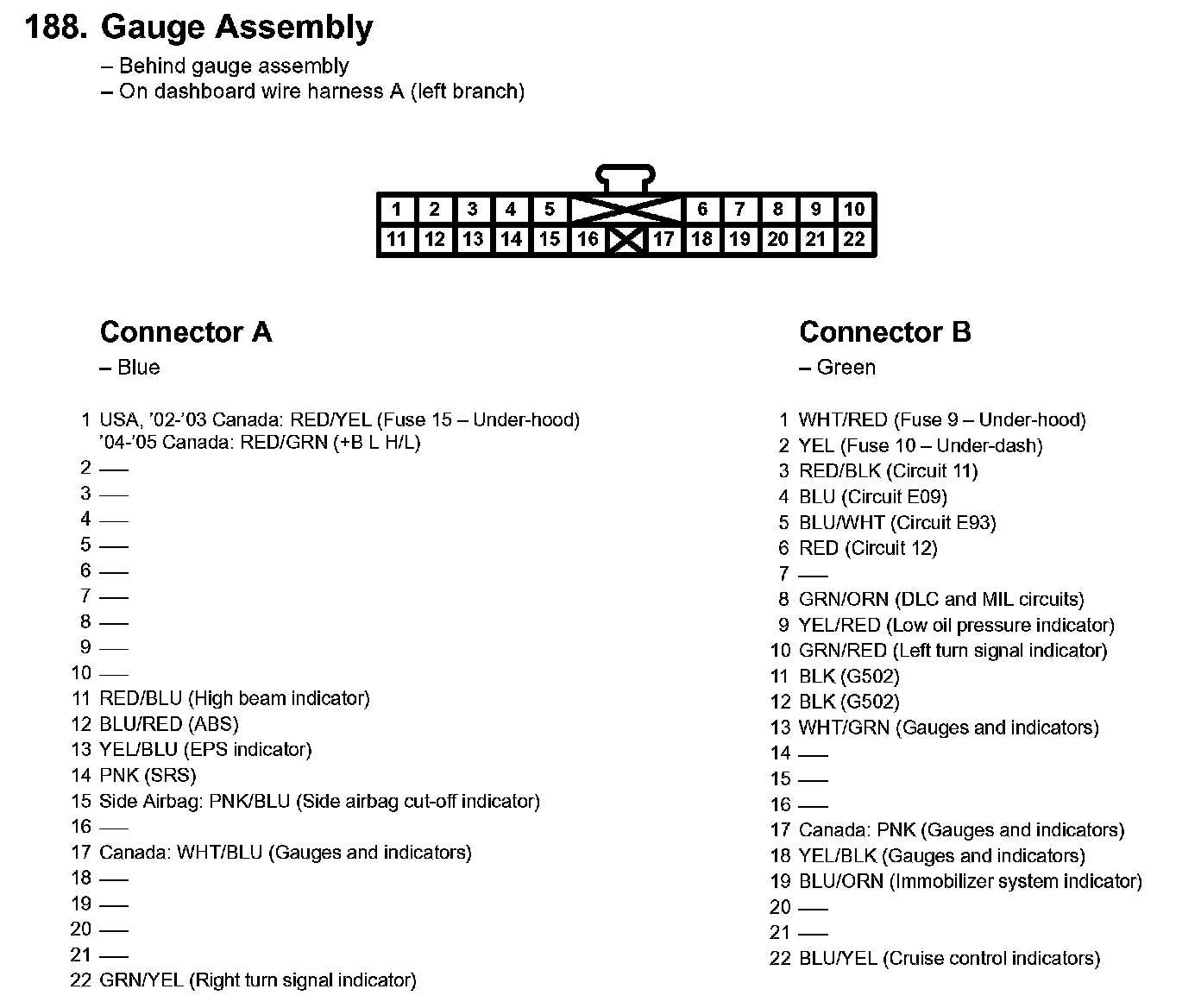

188. Gauge Assembly:

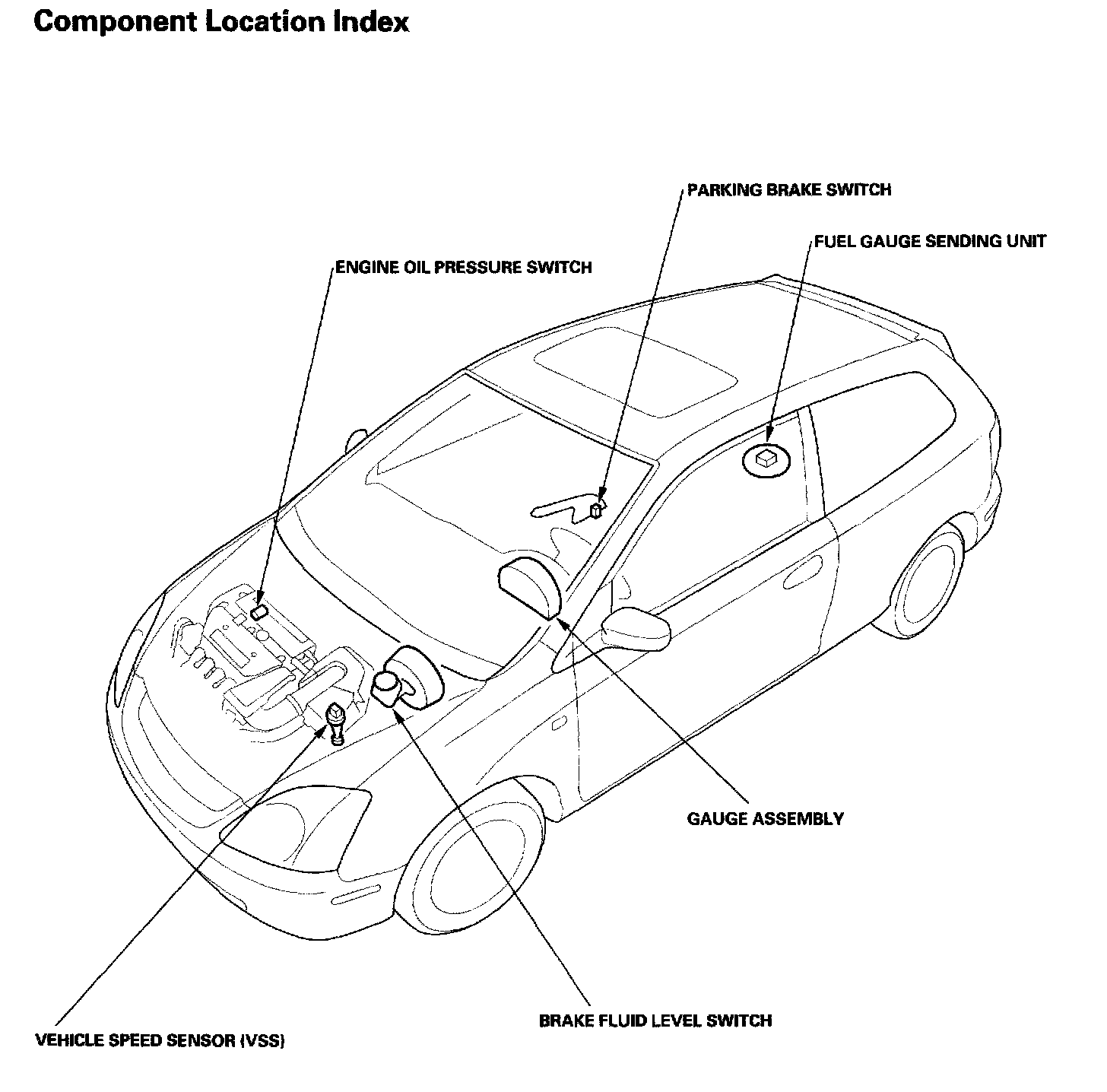

Gauges - Component Location Index:
Gauges - Component Location Index:
