Seat Belt Tensioner
Seat Belt Tensioner

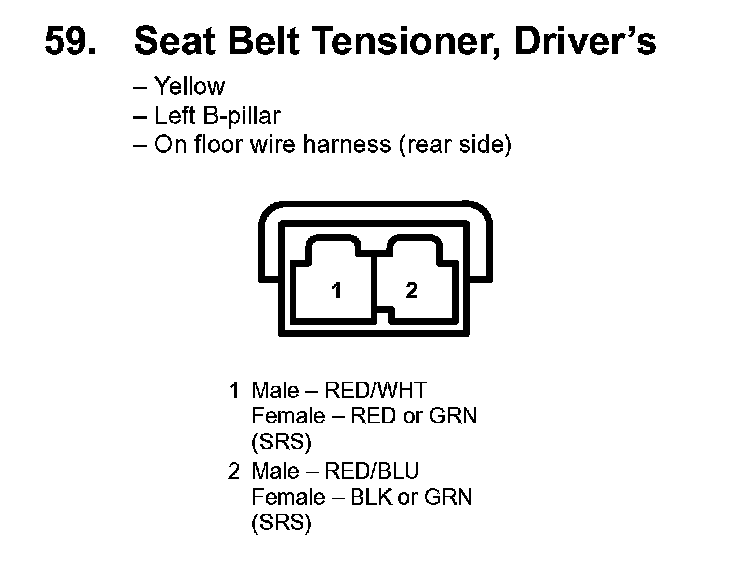

59. Seat Belt Tensioner, Driver's:

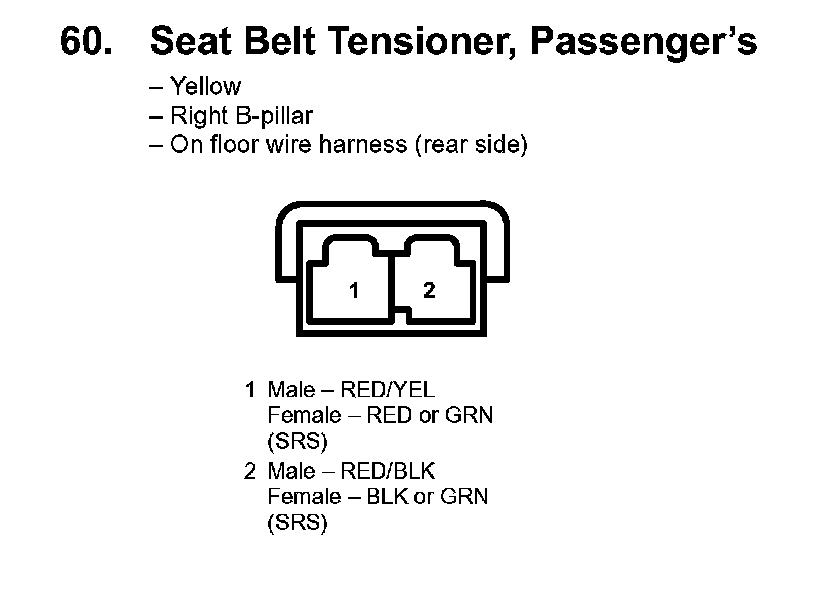

60. Seat Belt Tensioner, Passengers's:

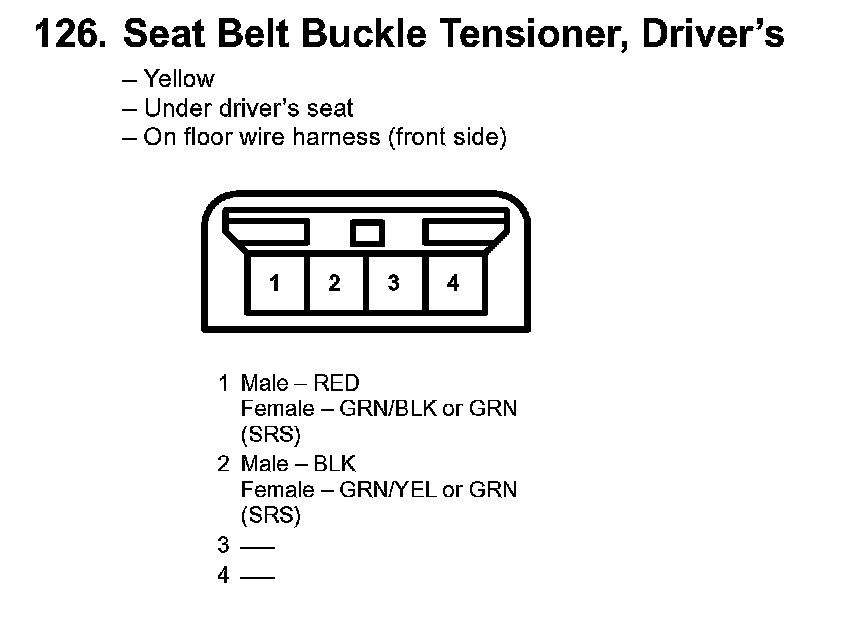

126. Seat Belt Buckle Tensioner, Driver's:

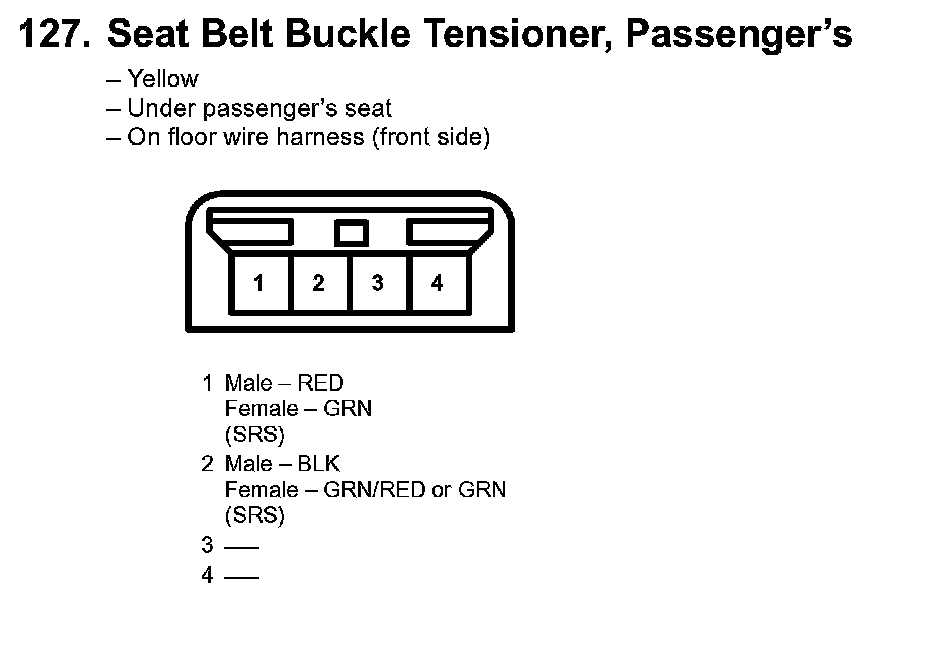

127. Seat Belt Buckle Tensioner, Passenger's:
