Turn Signal Lamp

74. Turn Signal Light, Left Front:

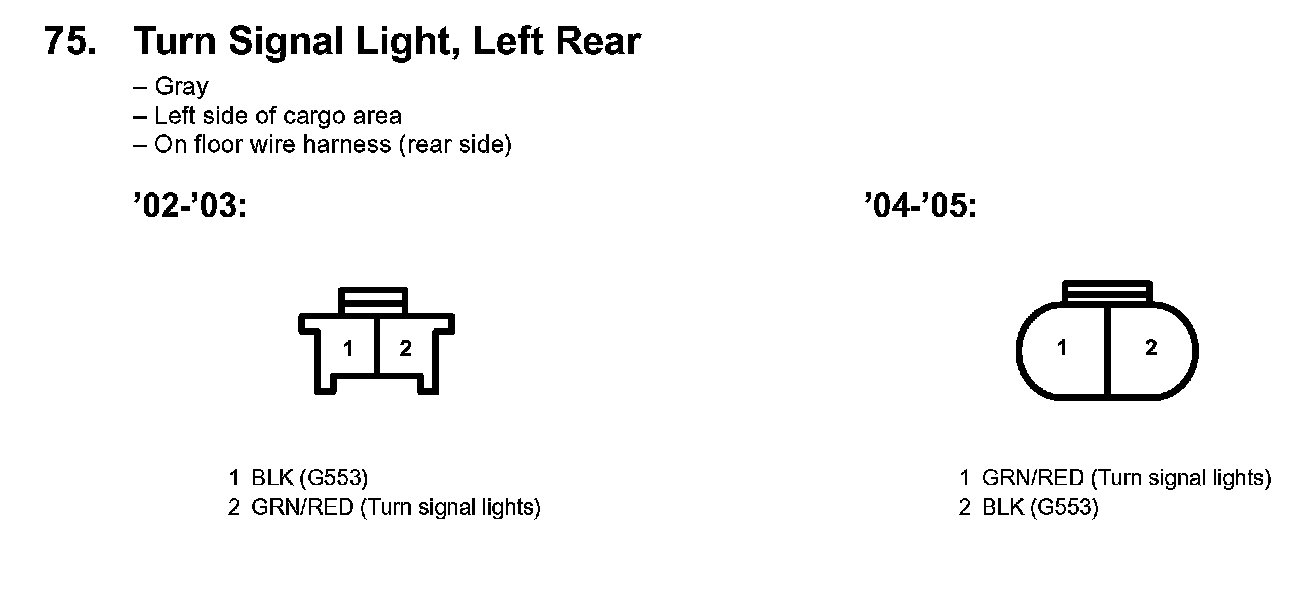

75. Turn Signal Light, Left Rear:

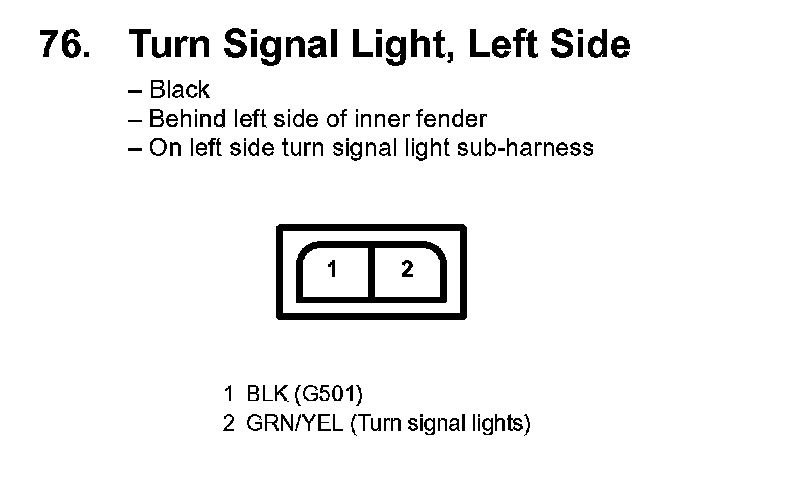

76. Turn Signal Light, Left Side:

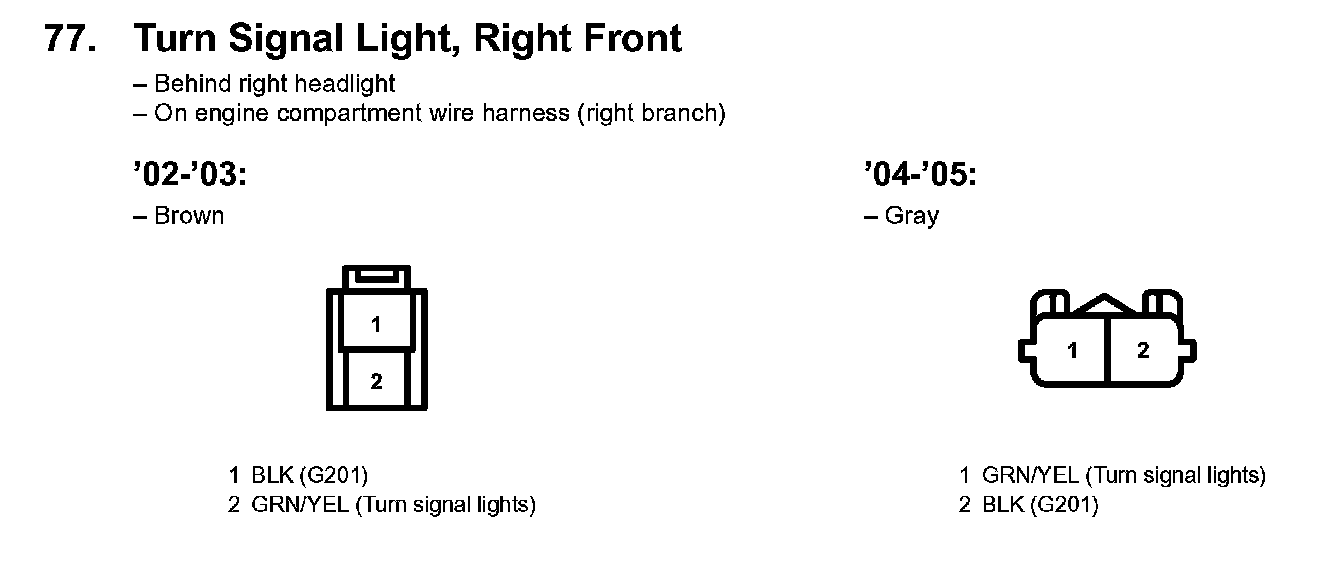

77. Turn Signal Light, Right Front:

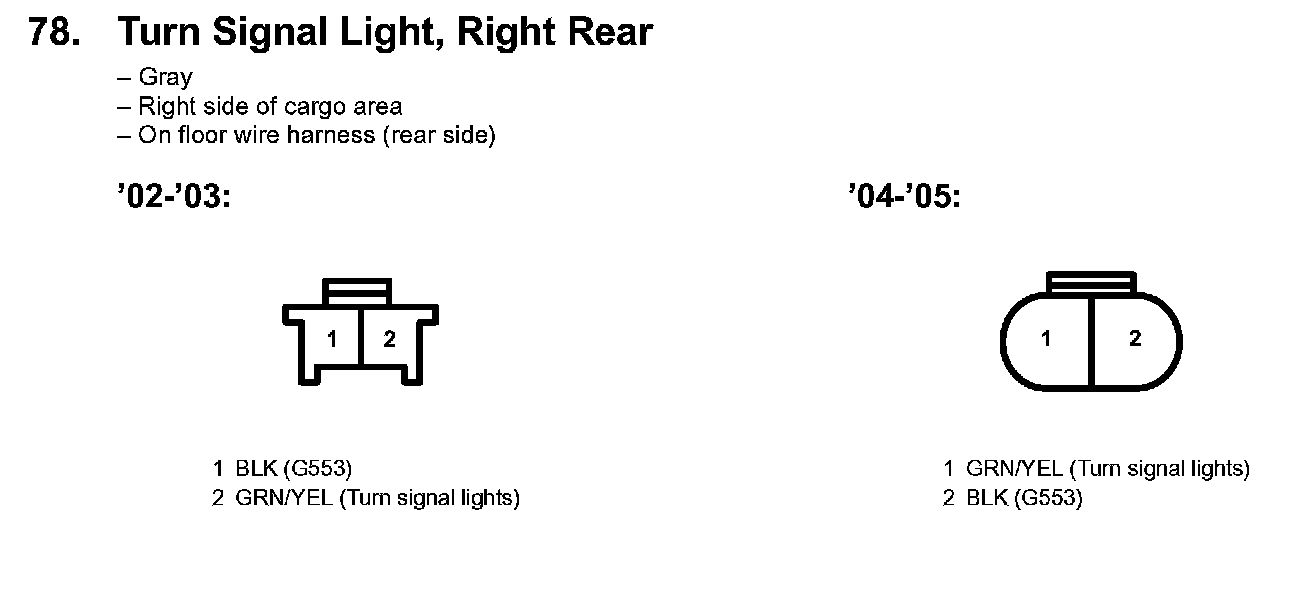

78. Turn Signal Light, Right Rear:

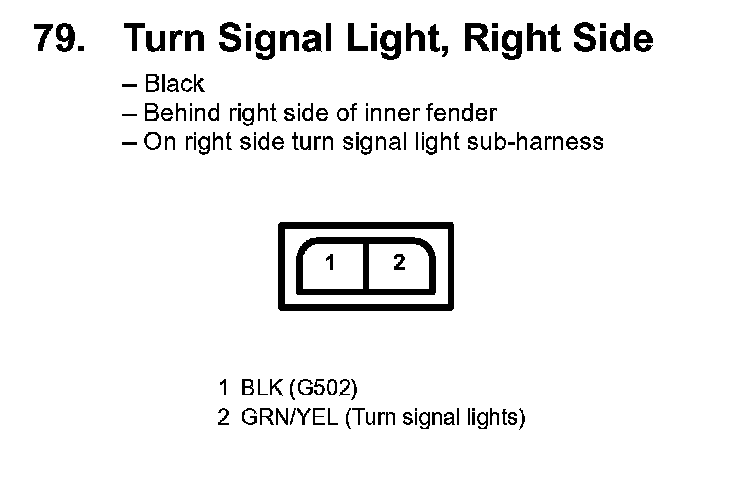

79. Turn Signal Light, Right Side:
