Wheel Speed Sensor

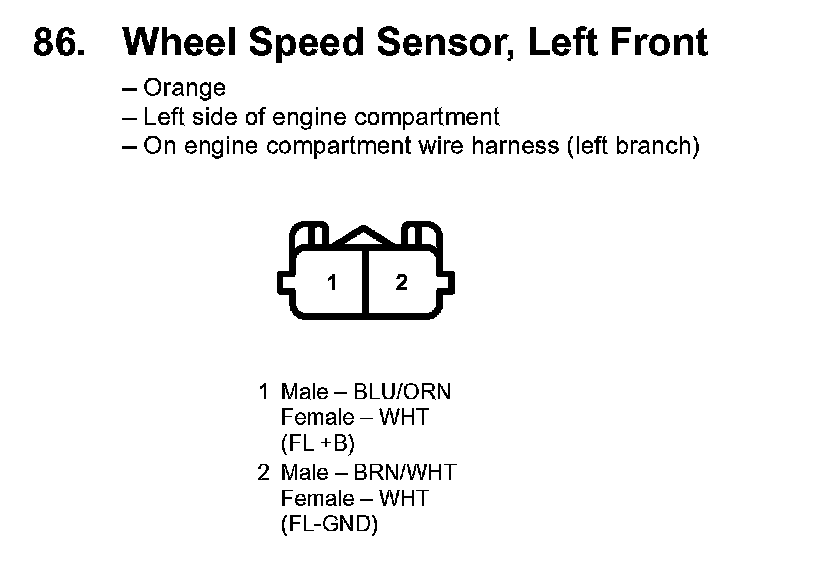

86. Wheel Speed Sensor, Left Front:

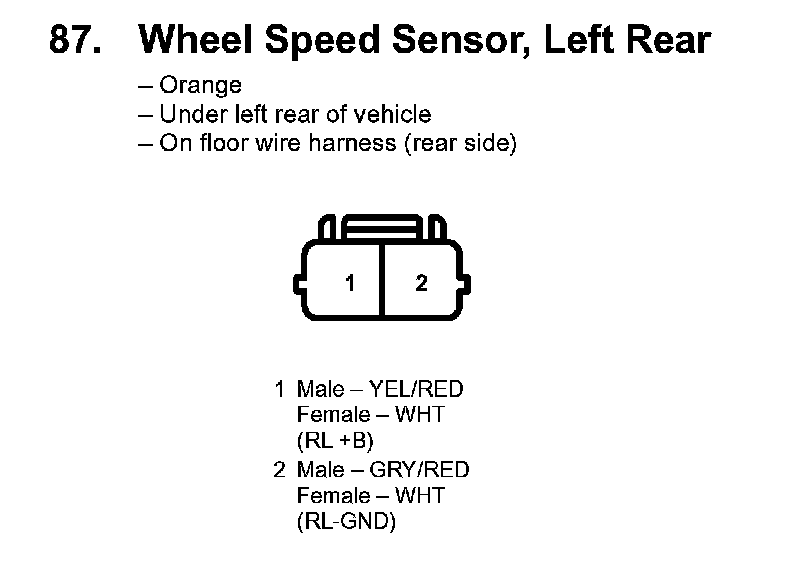

87. Wheel Speed Sensor, Left Rear:

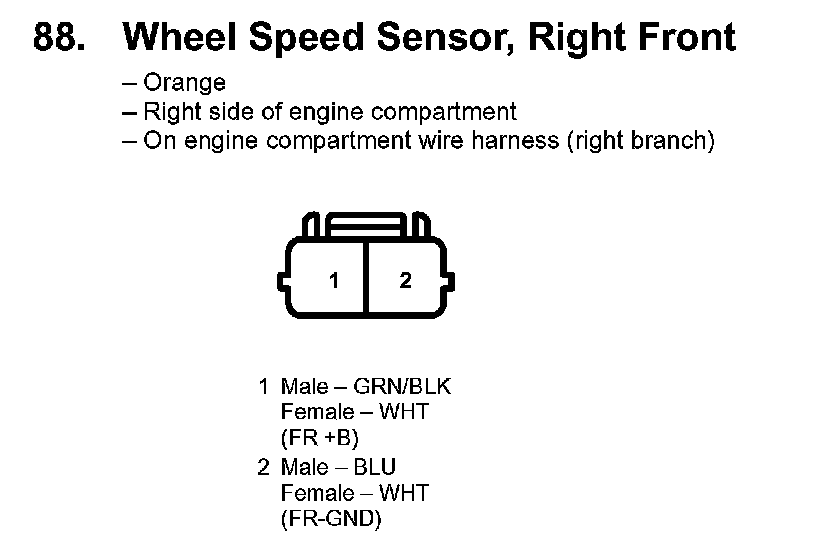

88. Wheel Speed Sensor, Right Front:
89. Wheel Speed Sensor, Right Rear:
