General Module

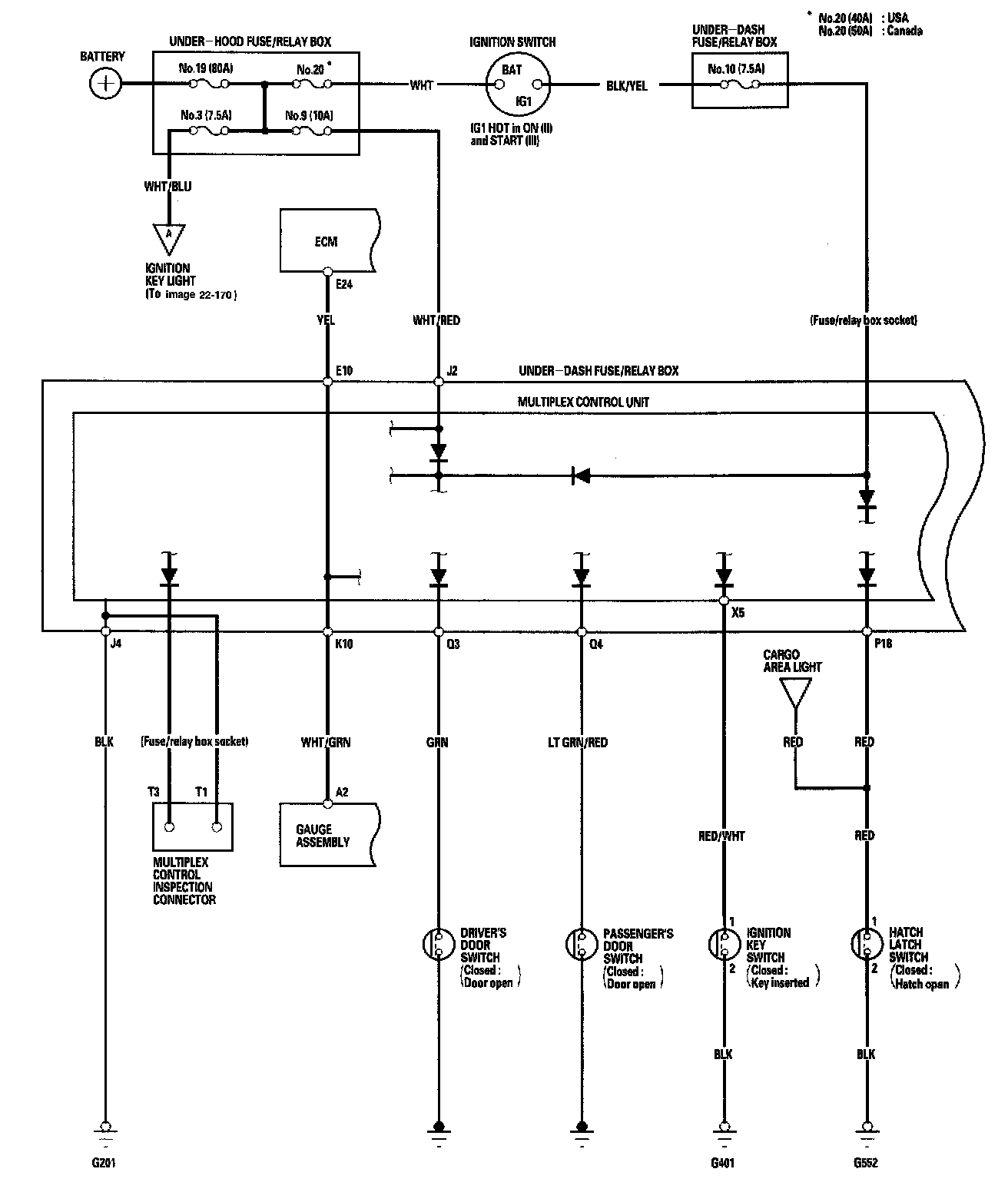

Multiplex Control System - Circuit Diagram Image 22-169:

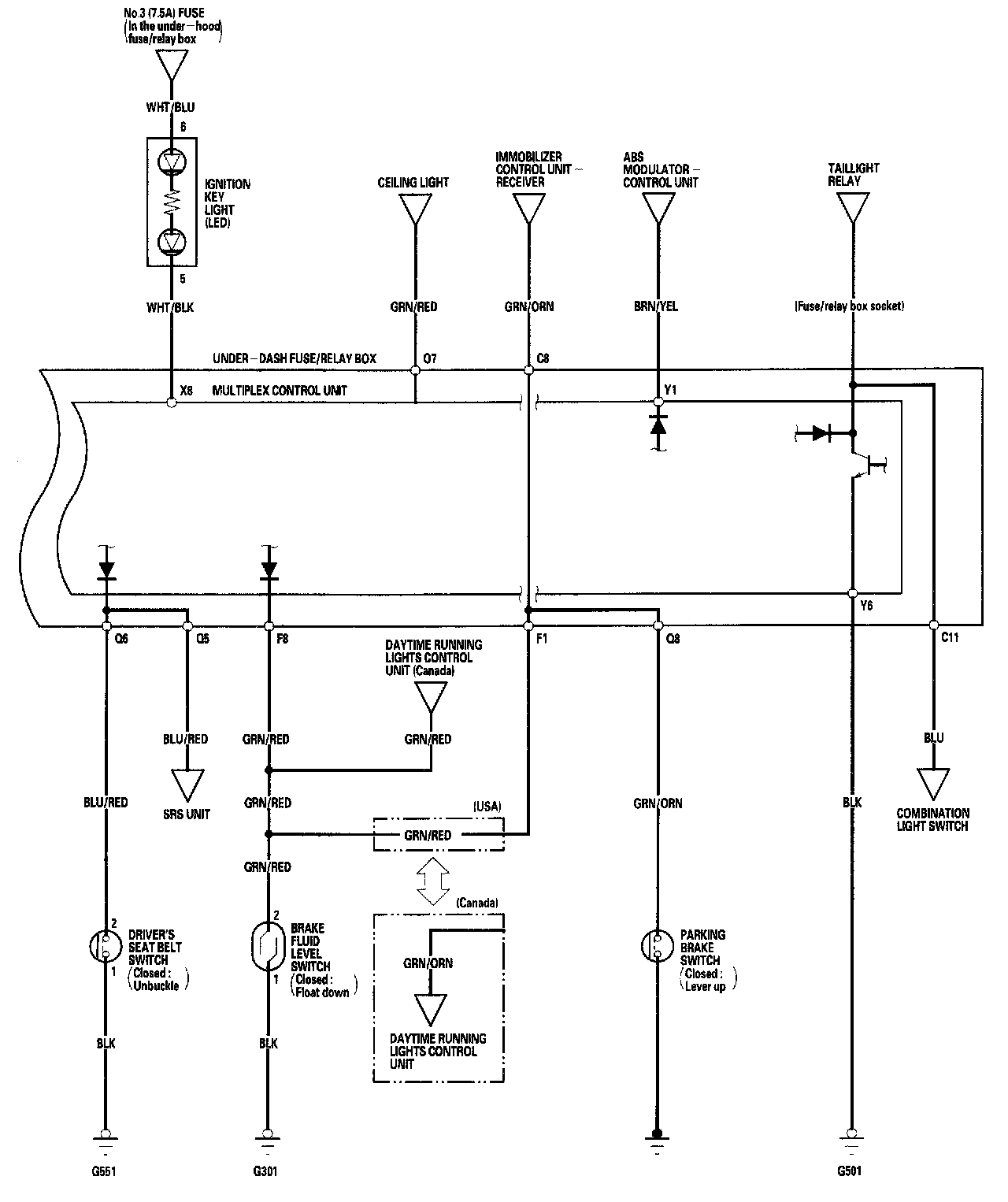

Multiplex Control System - Circuit Diagram Image 22-170:
