Audio Unit Antenna Jumper 2
Audio Unit Antenna Jumper 2

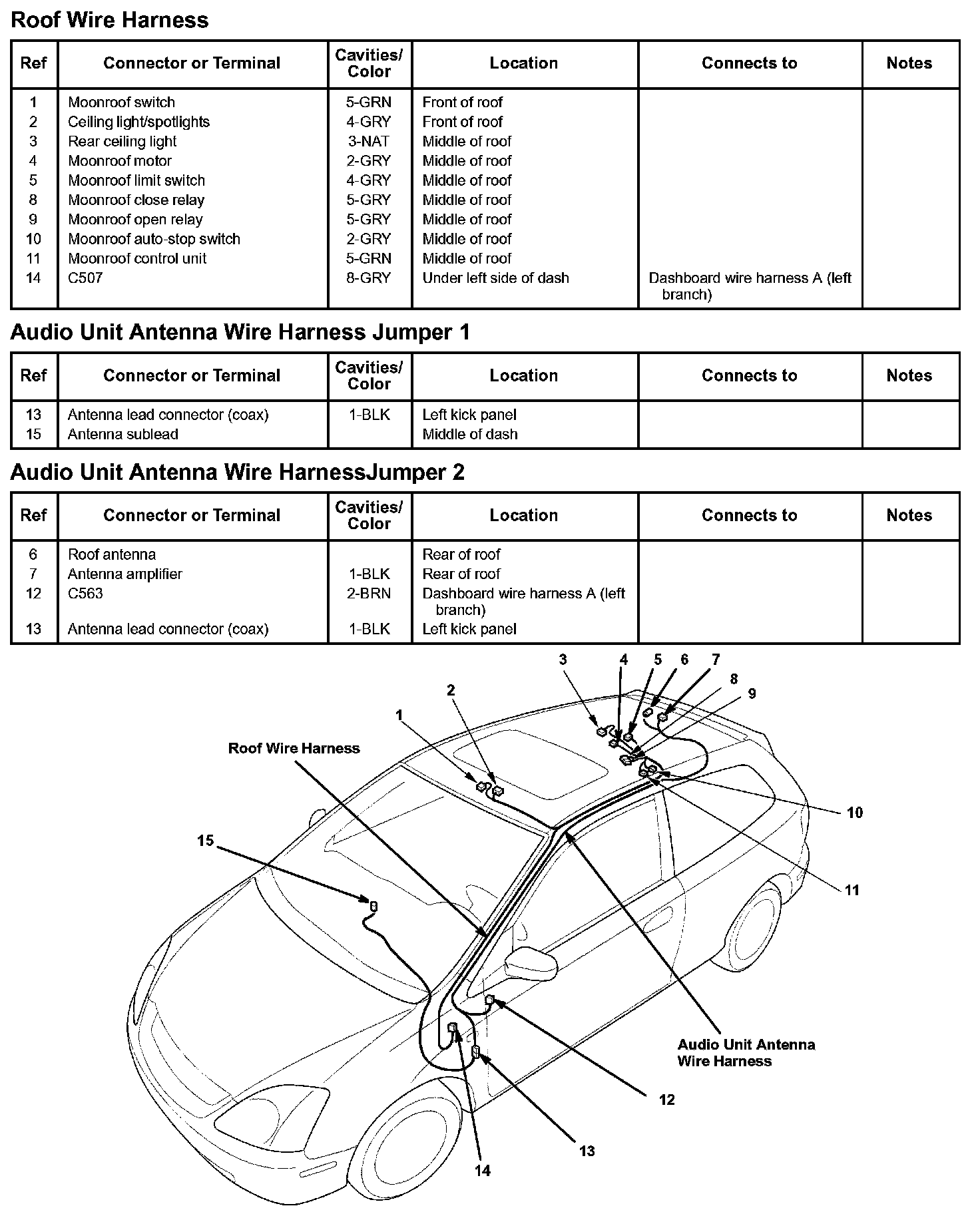

Roof Wire Harness/Audio Unit Antenna Wire Harness Jumper 1/Audio Unit Antenna Wire Harness Jumper 2:
