Dashboard Wire Harness B
Dashboard Wire Harness B

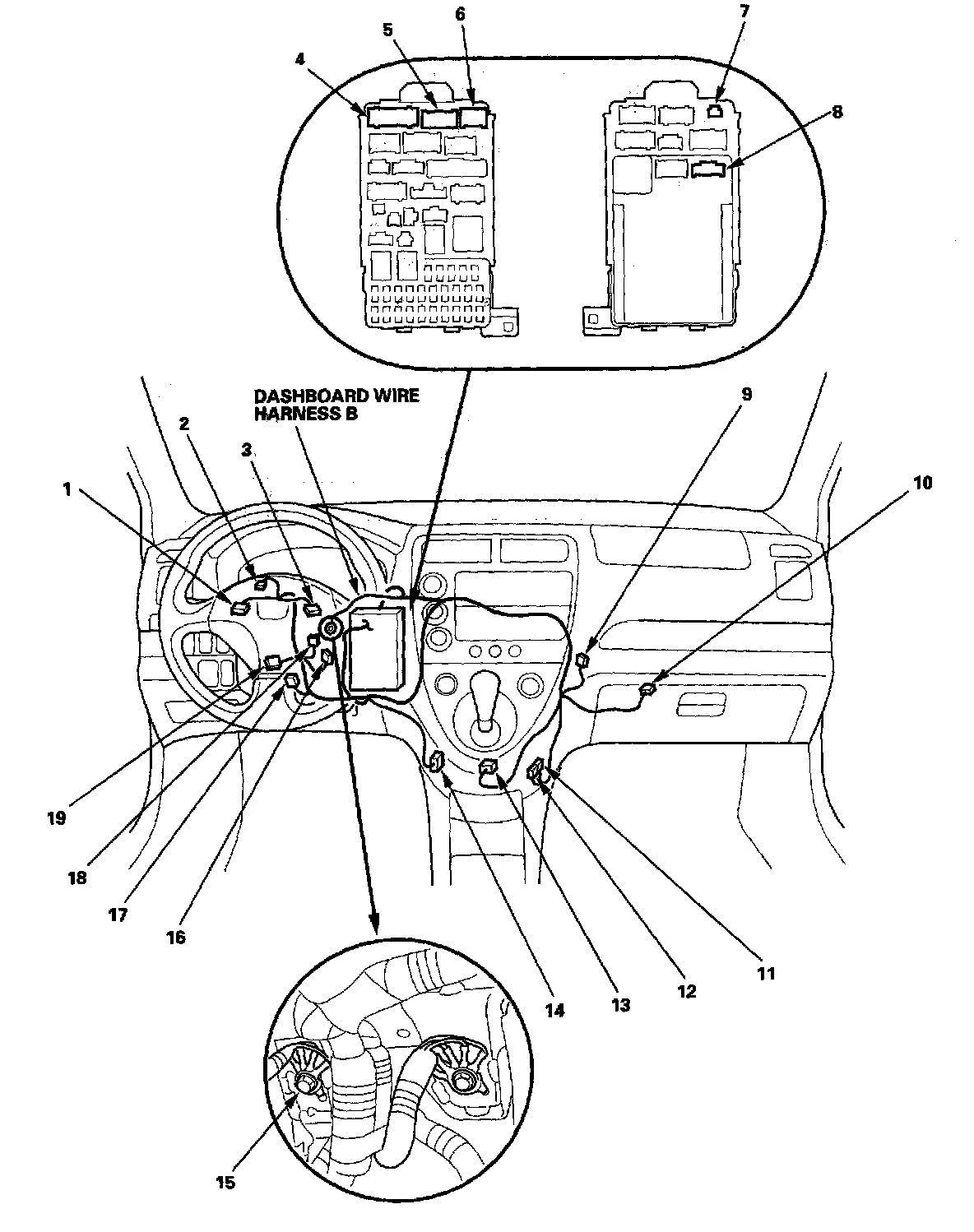

Harness Location View:

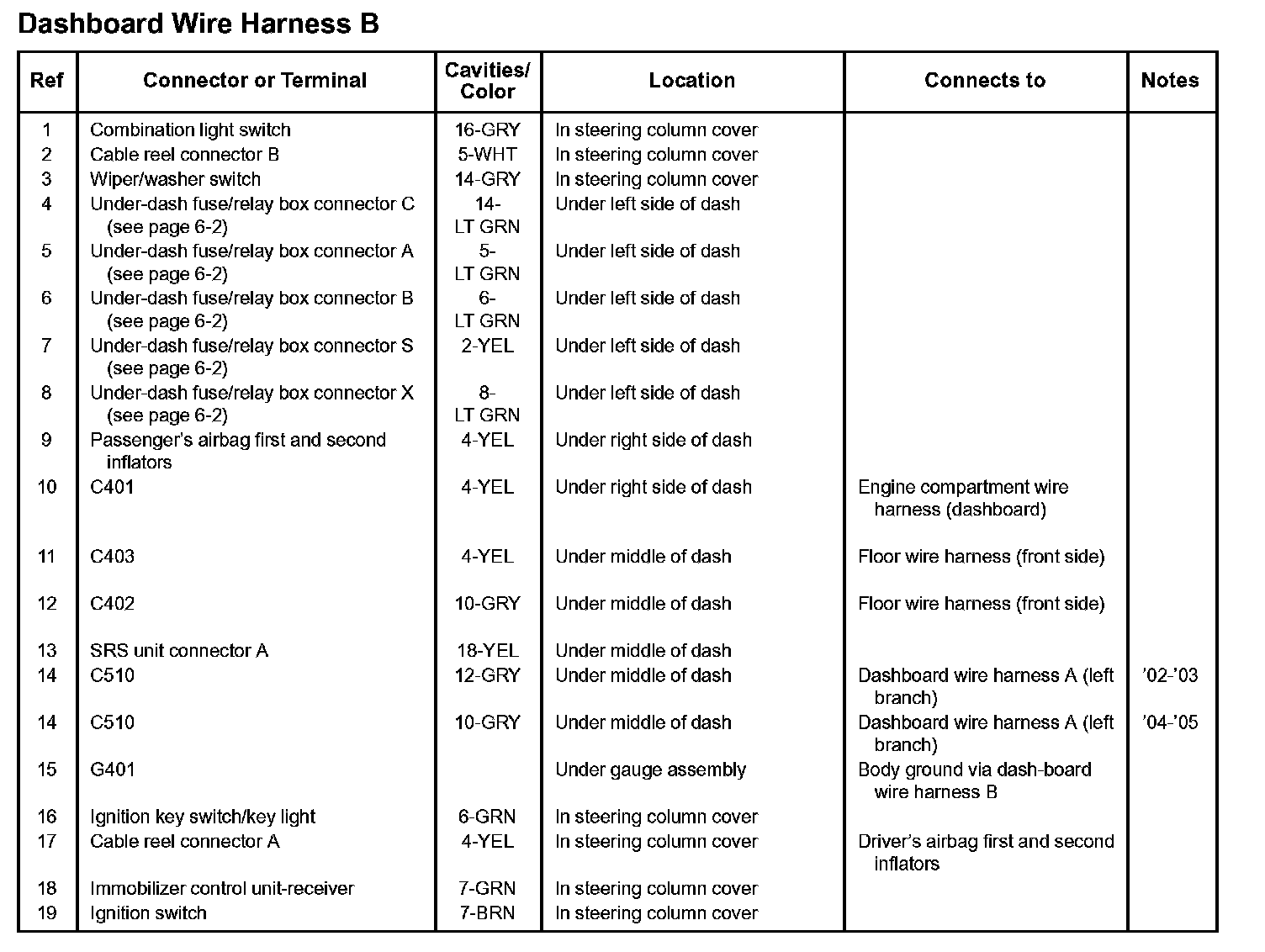

Dashboard Wire Harness B:

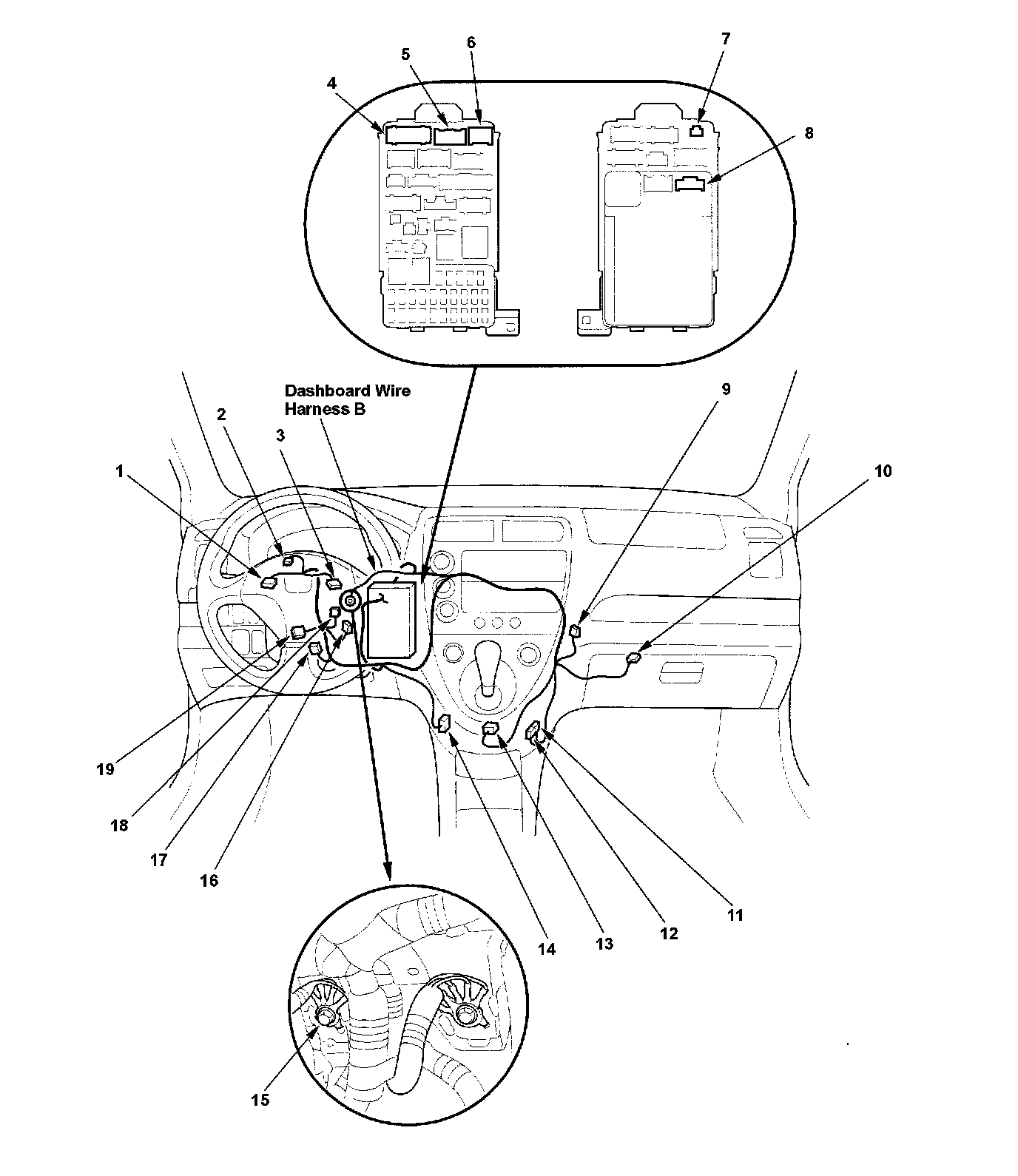

Harness Location View:
Dashboard Wire Harness B:
