Right Side Turn Signal Light Subharness
Right Side Turn Signal Light Subharness

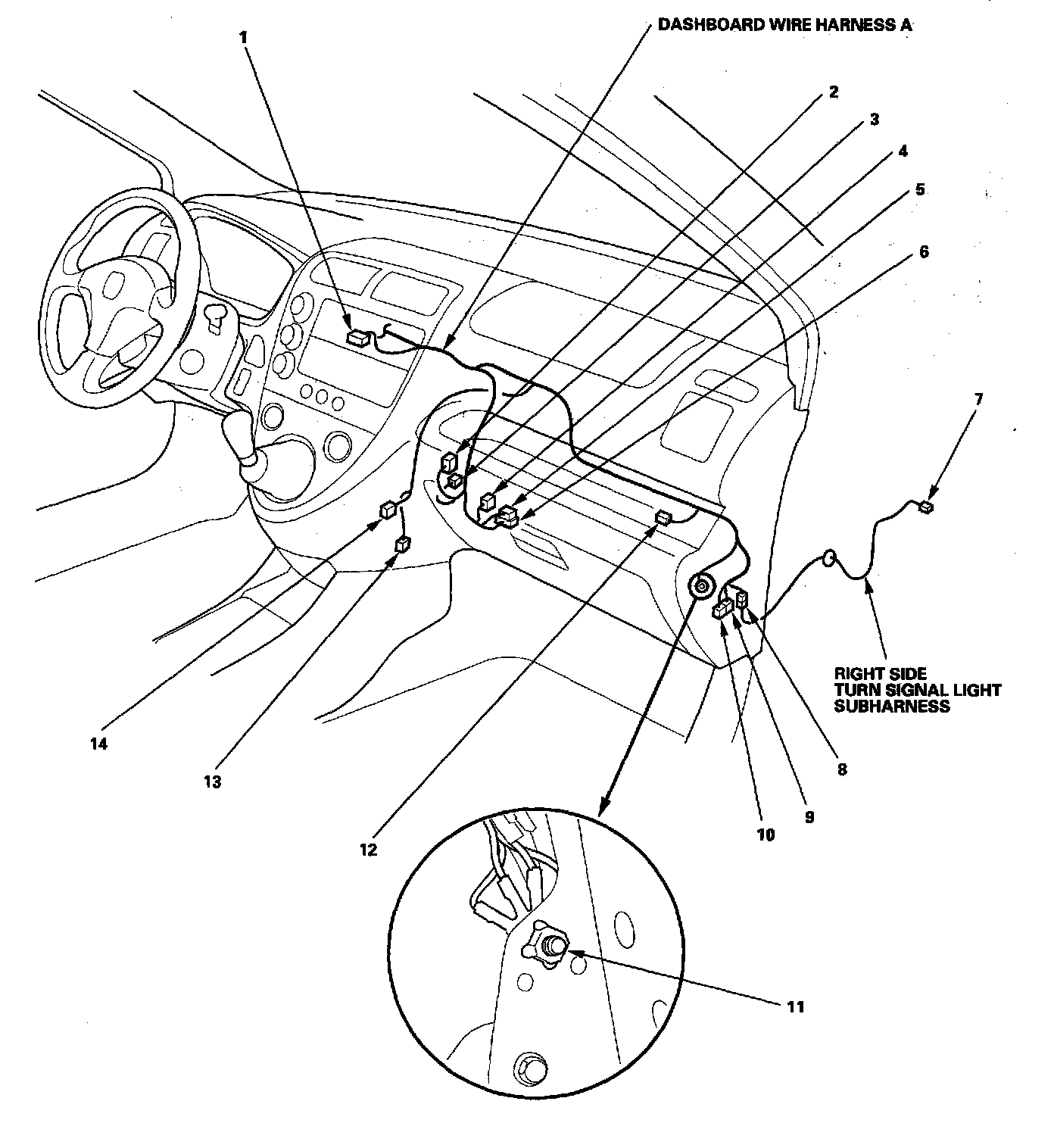

Harness Location View:

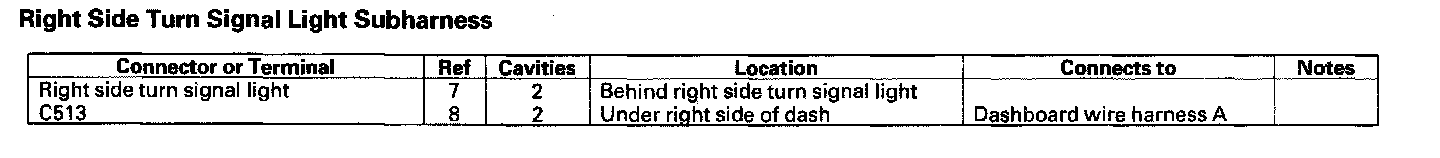

Right Side Turn Signal Light Subharness:

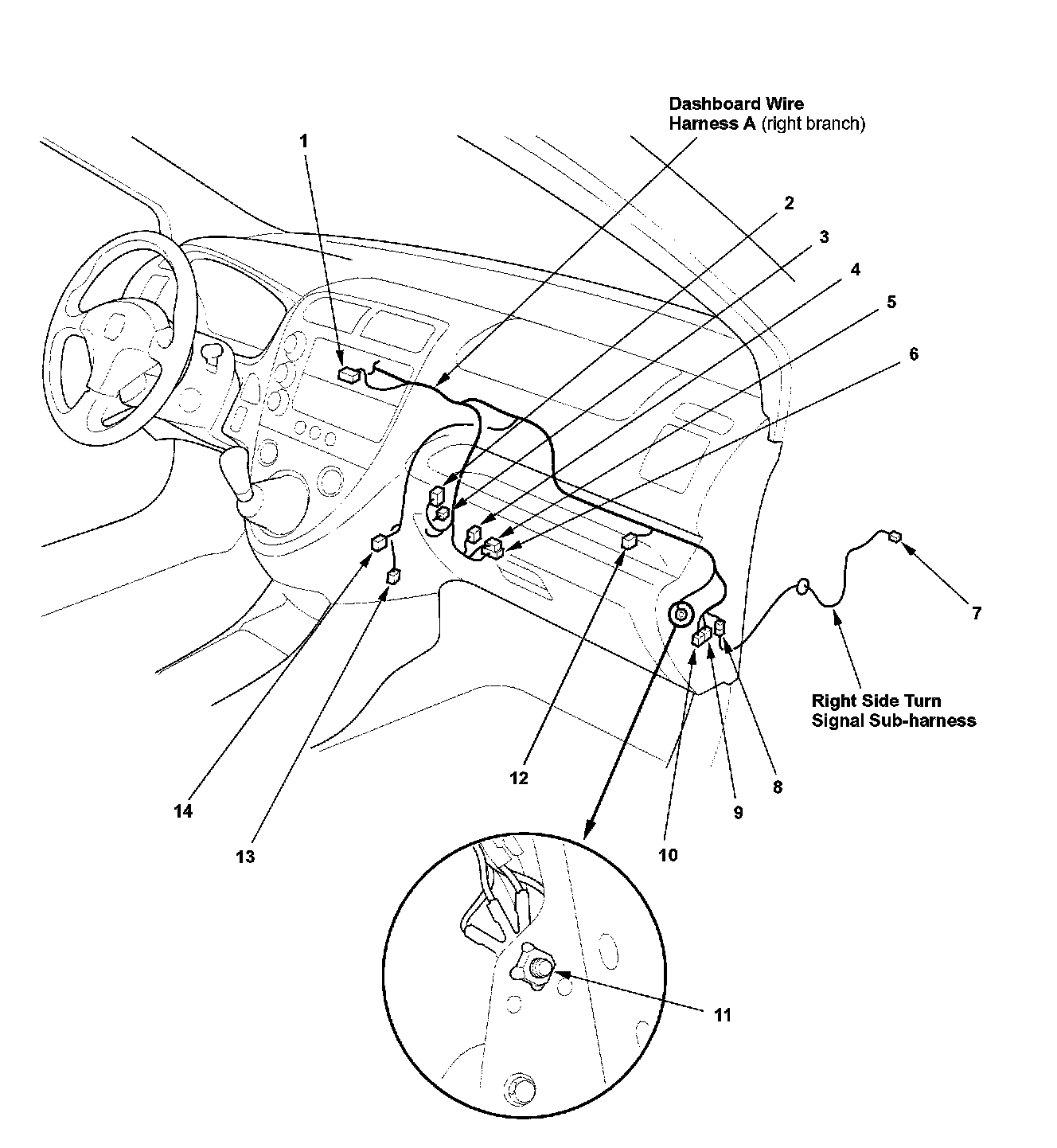

Harness Location View:

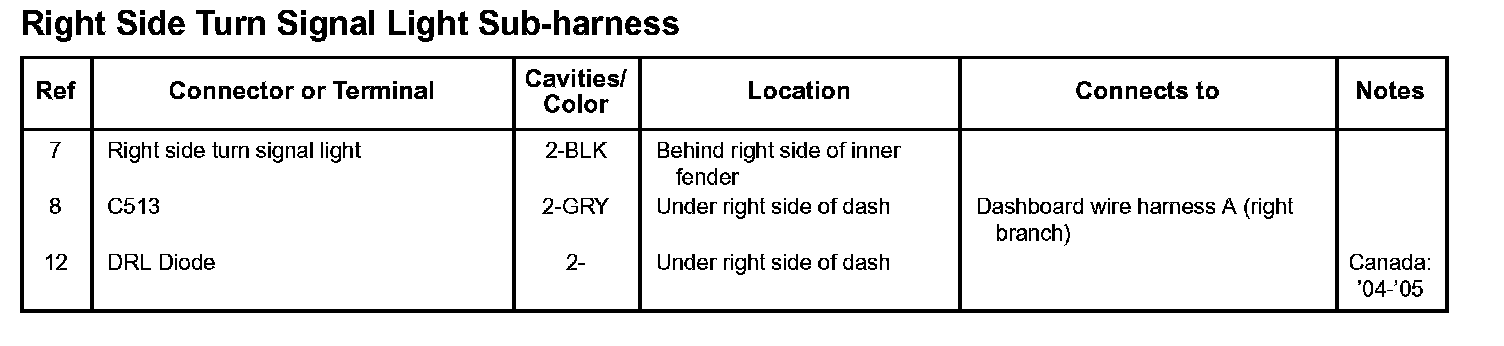

Right Side Turn Signal Light Sub-harness:
