Home >> Honda >> 2002 >> Civic Si L4-1998cc 2.0L DOHC (i-VTEC) PGM FI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Locations

Instrument Cluster / Carrier: Locations

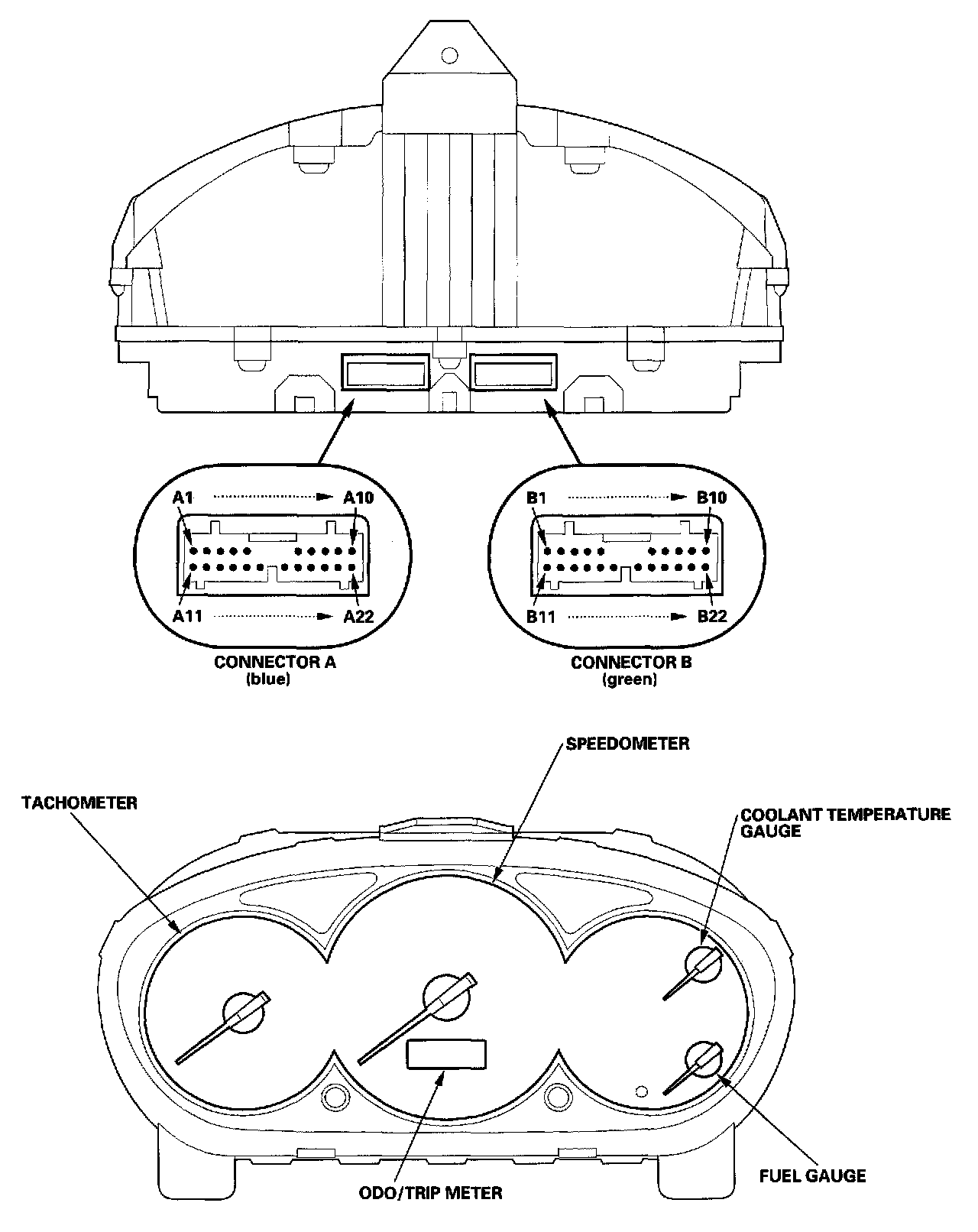

Gauges Component Location Index Part 2:



78. Top of Gauge Assembly:
