Center Mounted Brake Lamp: Service and Repair

High Mount Brake Light Replacement

1. Open the hatch.
2. Remove the plastic trim.

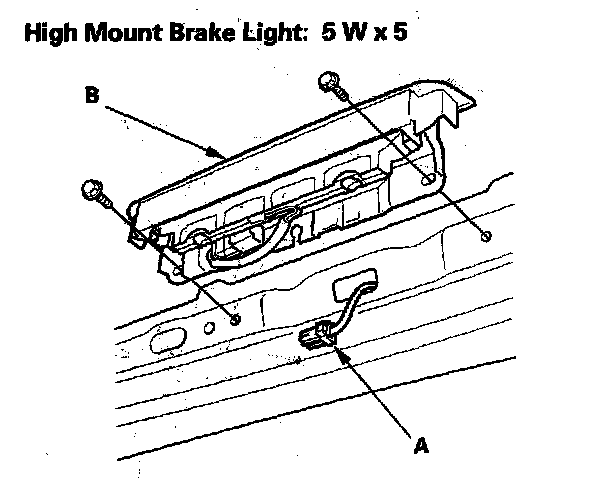

3. Disconnect the 2P connector (A) from the high mount brake light (B).
4. Carefully remove the high mount brake light.




5. Install the light in the reverse order of removal.
