Home >> Honda >> 2002 >> Civic Si L4-1998cc 2.0L DOHC (i-VTEC) PGM FI >> Repair and Diagnosis >> Lighting and Horns >> Interior Lighting Module >> Locations

Interior Lighting Module: Locations

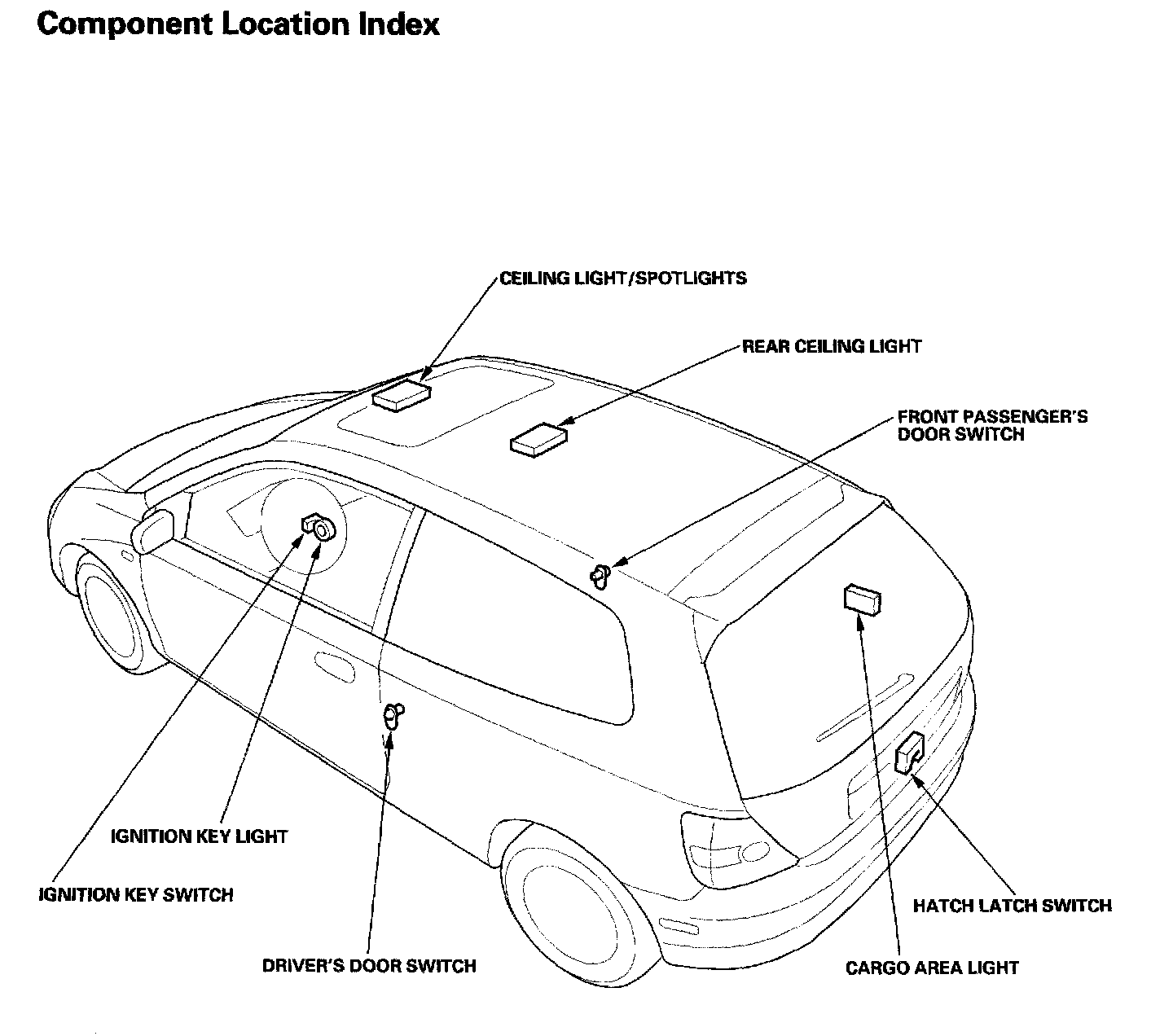

Entry Lights Control System - Component Location Index:

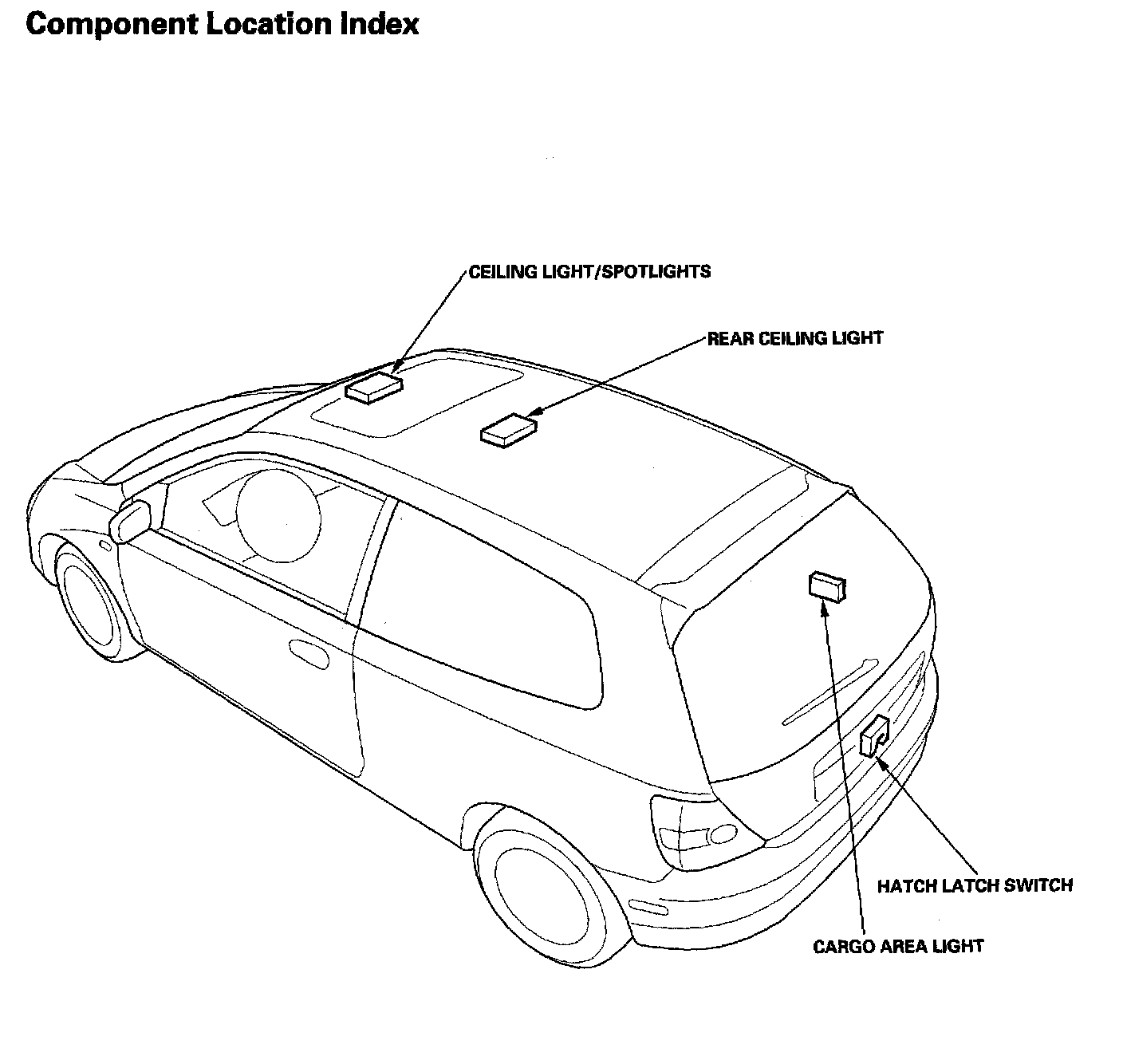

Interior Lights - Component Location Index:

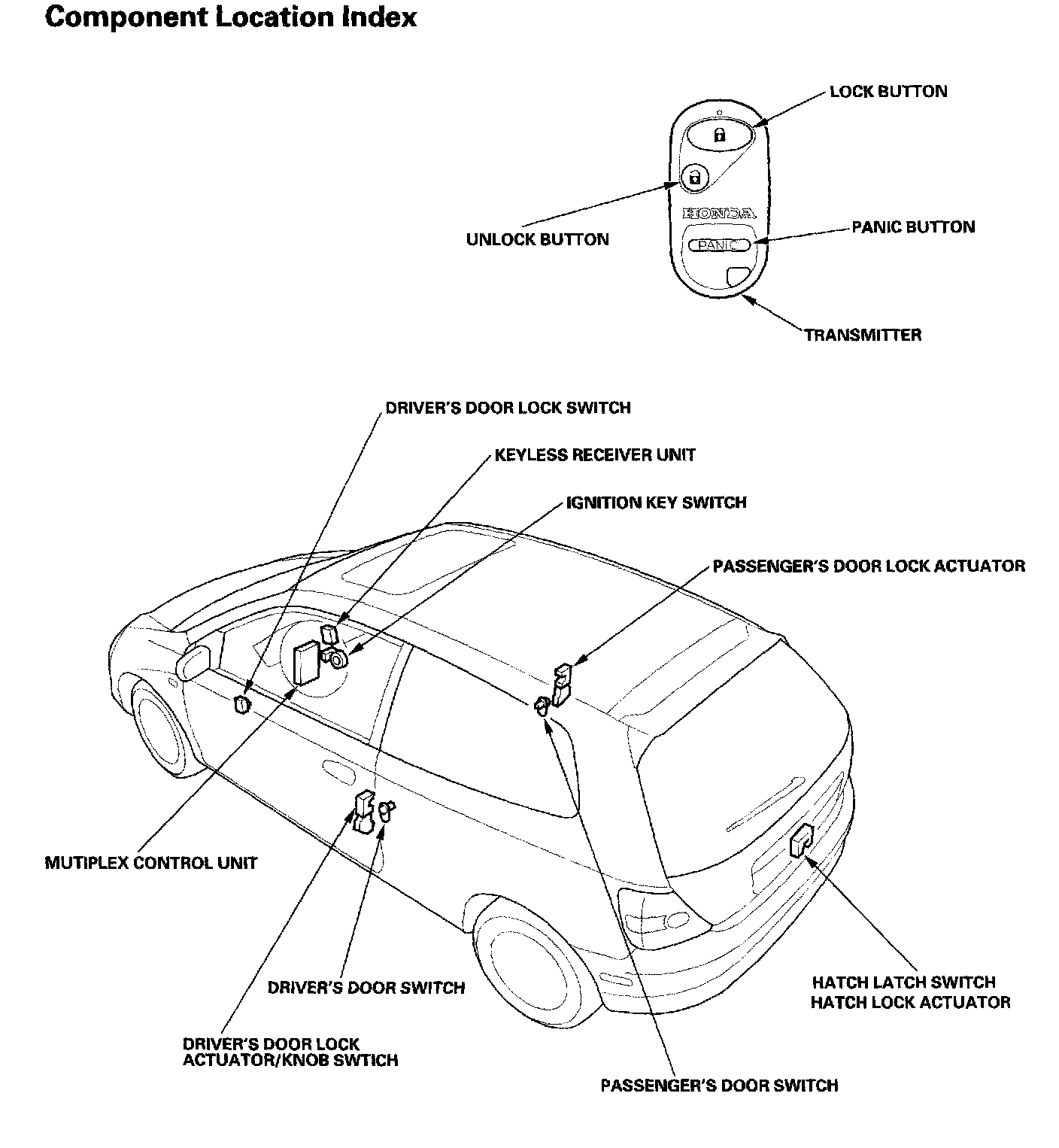

Keyless/Power Door Lock System - Component Location Index:
