Marker Lamp: Service and Repair

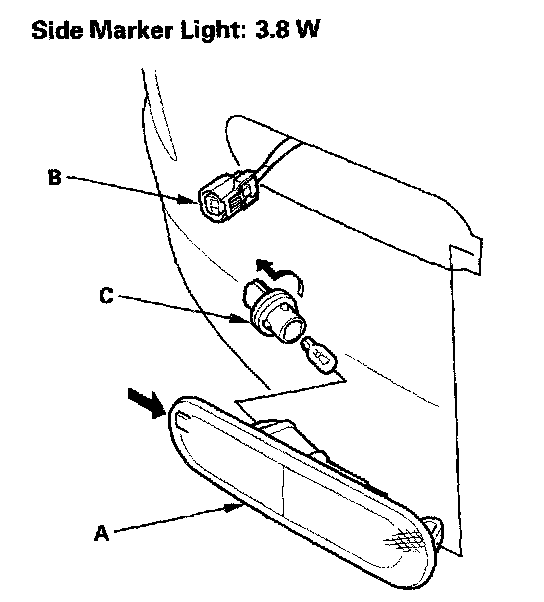

Side Marker Light Replacement




1. Carefully pry the light (A) out of the front or rear bumper, and disconnect the 2P connector (B) from the light. Be careful not to damage the rear bumper.
2. Remove the bulb socket (C) by turning it 45° counterclockwise, then replace the bulb.
