Home >> Honda >> 2002 >> Civic Si L4-1998cc 2.0L DOHC (i-VTEC) PGM FI >> Repair and Diagnosis >> Power and Ground Distribution >> Electronic Noise Suppressor >> Diagrams

Electronic Noise Suppressor: Diagrams

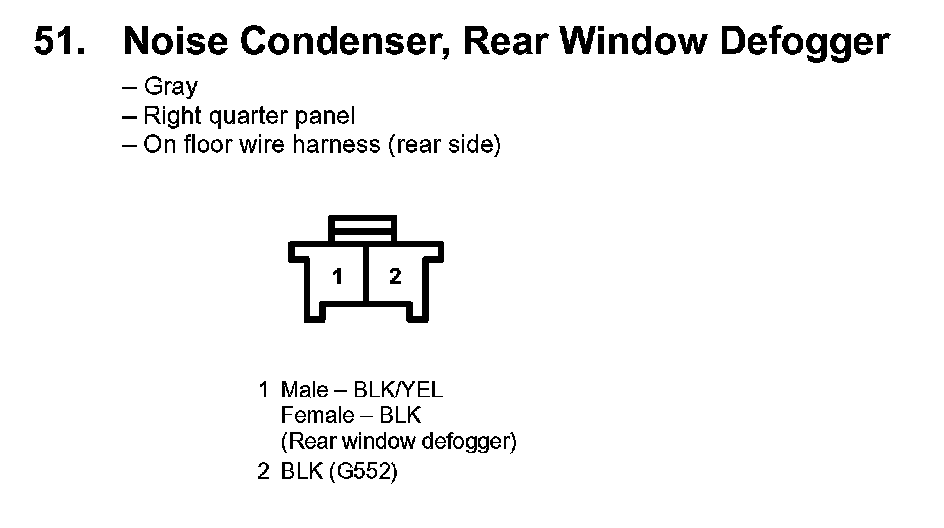

51. Noise Condenser, Rear Window Defogger:



52. Noise Condenser, Rear Window Wiper:
