Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2002
>>
Civic Si L4-1998cc 2.0L DOHC (i-VTEC) PGM FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

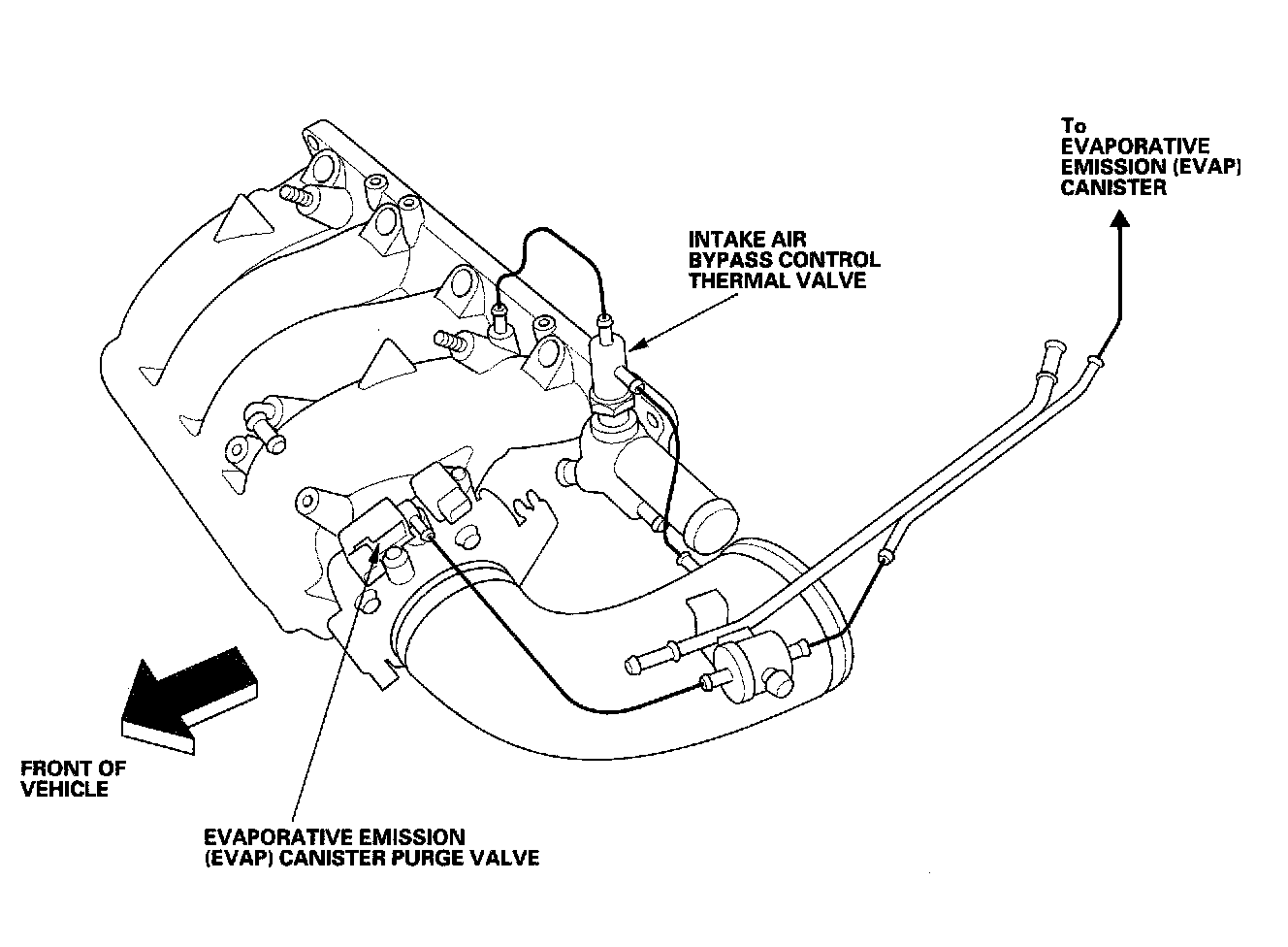

Vacuum Hose Routing Part 1:
Vacuum Hose Routing Part 2:
