Power and Ground Distribution: Locations

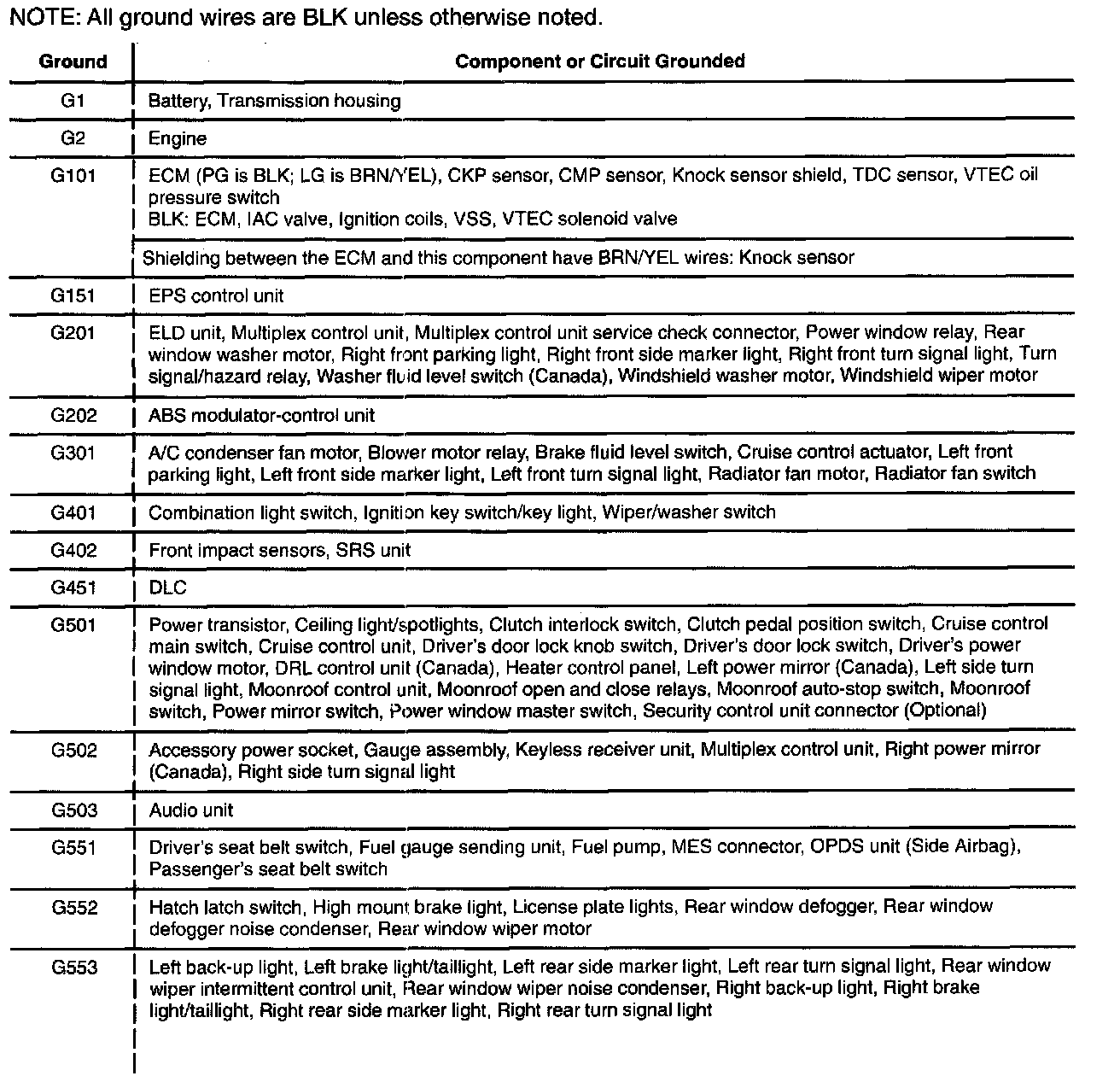

Grou8nd-to-Component Index (G1 - G553) Image 6-5:



Ground To Component Index (G1-G553) Image 48:
