Interior - Center Lower Cover Removal, Manual Revision

SOURCE:
Honda Service News May 2003

TITLE:
Service Manual Fix: Dashboard Center Lower Cover

APPLIES TO:
2001-03 Civic

SERVICE TIP:

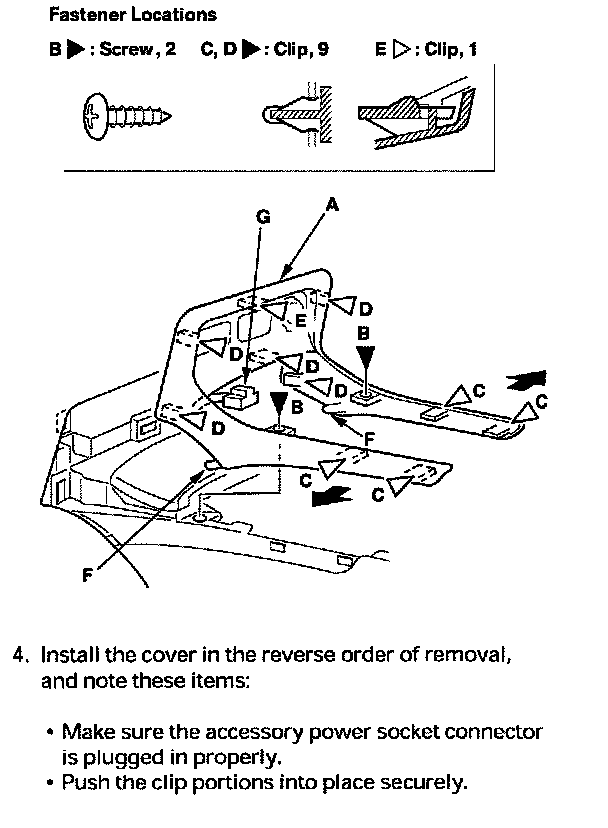

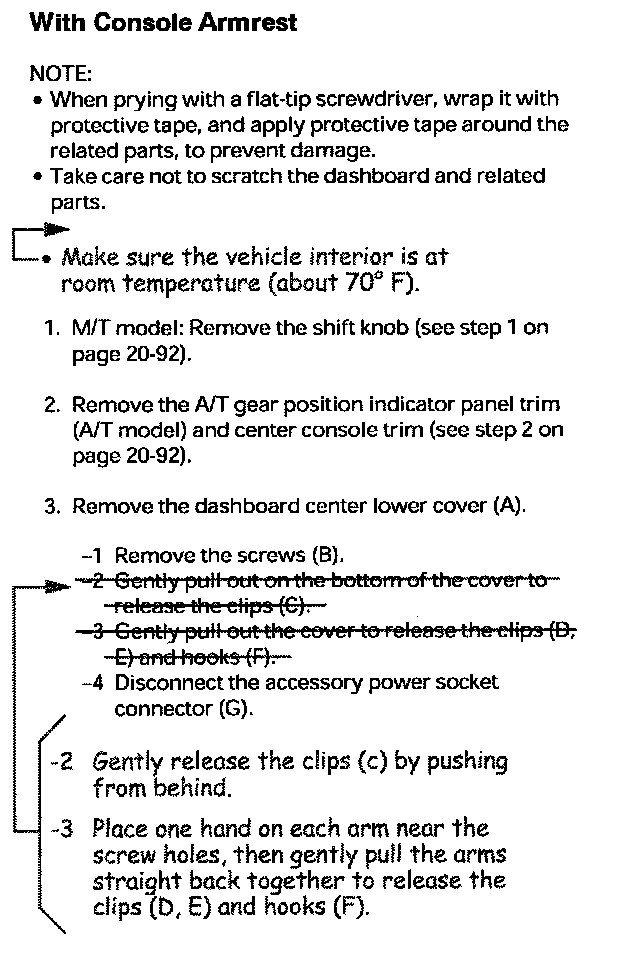

The removal/installation procedure for the dashboard center lower cover on page 20-98 of the 2001-03 Civic S/M needs some fine-tuning. This cover is new for 2003 models and applies only to the LX and EX trim levels. The two cover arms could break if you don't remove the cover properly or if you try removing it in cold weather. Mark up your copies of the S/M to look like this.
