Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Partially remove the right inner fender.

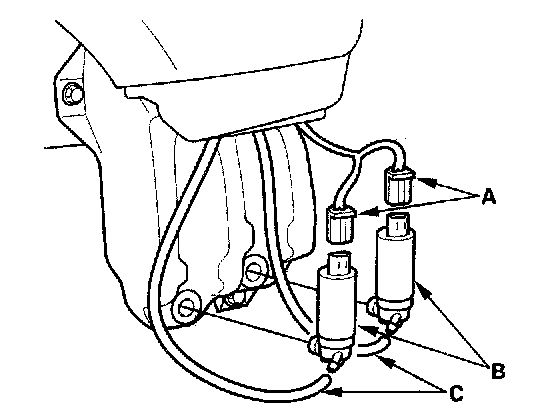

2. Disconnect the 2P connectors (A) from the washer motors (B) and level switch (Canada).
3. Disconnect the tubes (C) from the washer motors.

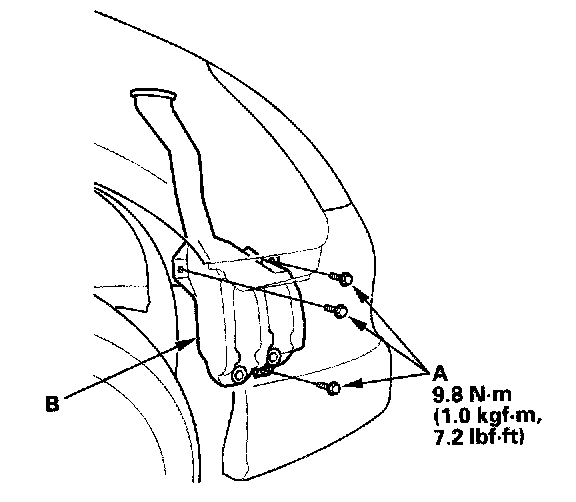

4. Remove the three bolts (A) and the washer reservoir (B).
