Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2002
>>
Insight L3-1.0L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate Relay
Trunk / Liftgate Relay

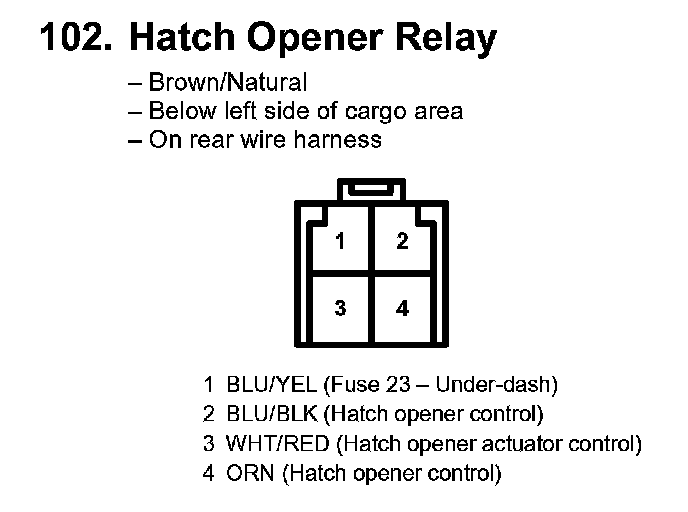

102. Hatch Opener Relay:
