Audio Unit Connector
Audio Unit Connector Replacement

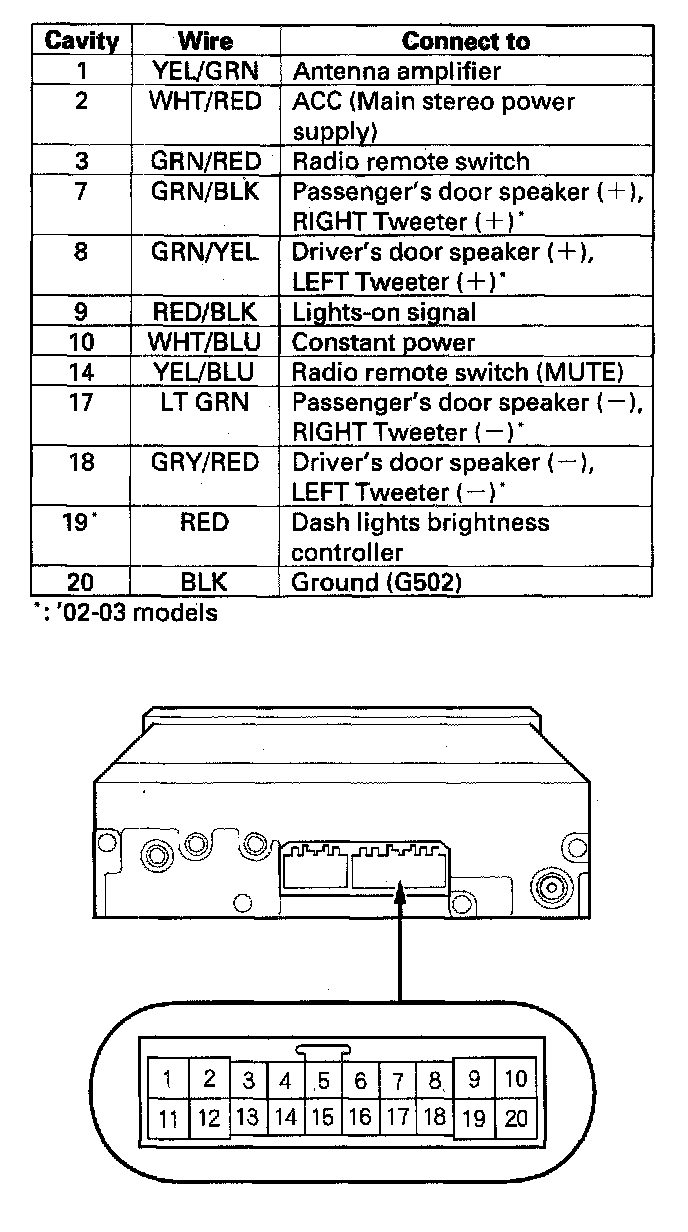

When replacing an audio unit connector, match the wires to the cavities listed in the given table. Cavities 4, 5, 6, 11, 12, 13, 15 and 16 are not used.
Audio Unit Connector Replacement
When replacing an audio unit connector, match the wires to the cavities listed in the given table. Cavities 4, 5, 6, 11, 12, 13, 15 and 16 are not used.
