Diagram Set 80 (Gauges and Indicators)

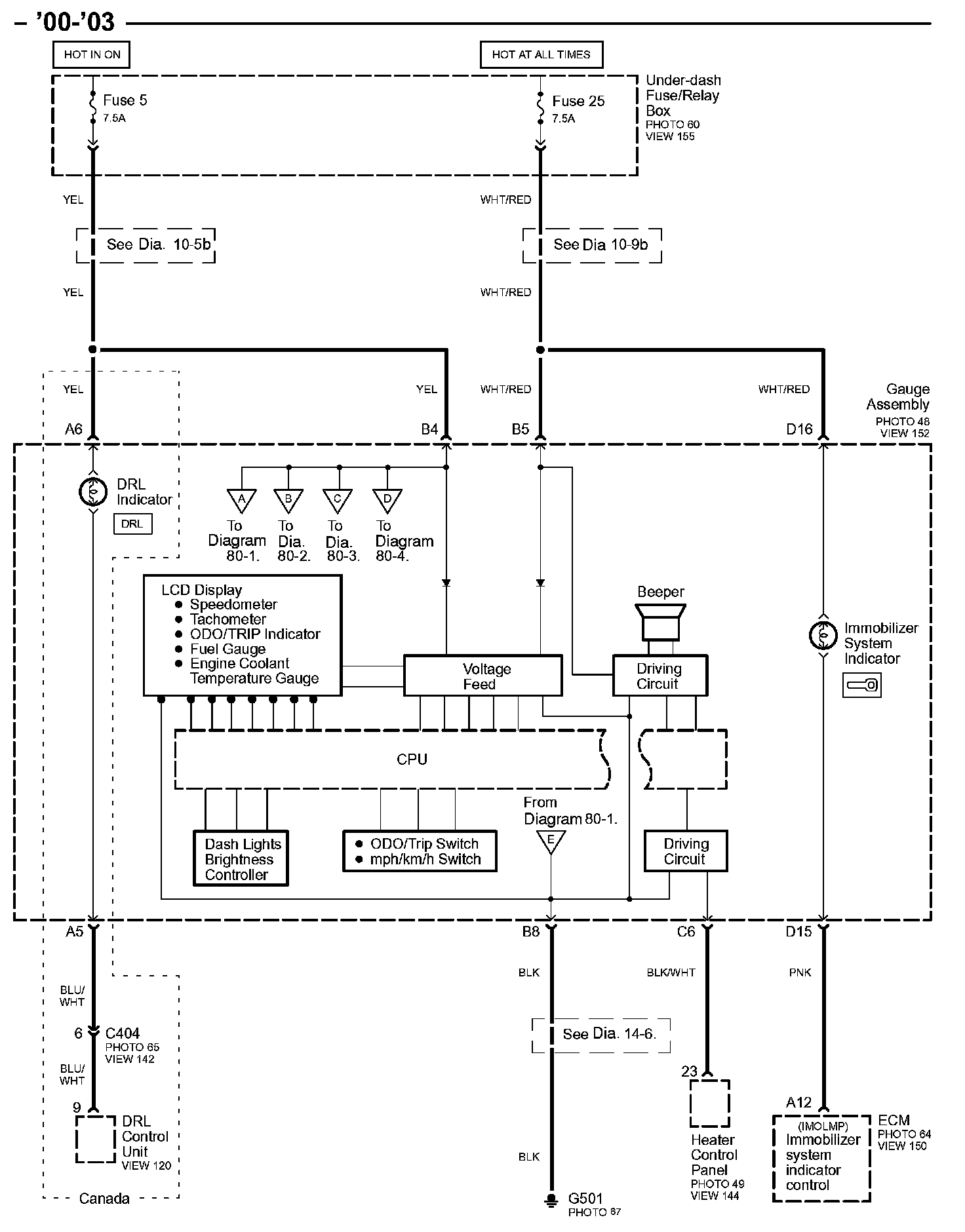

Diagram 80-0:

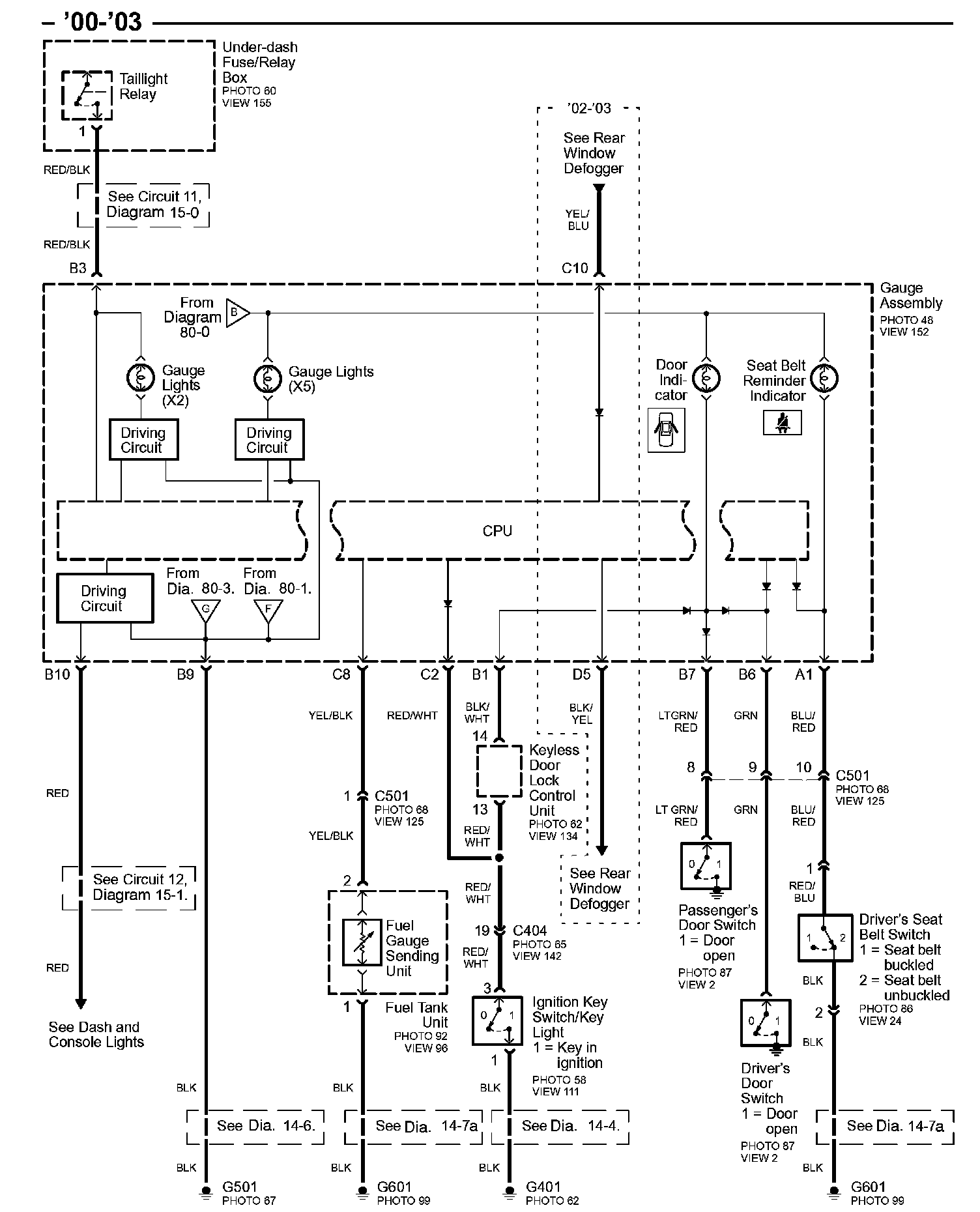

Diagram 80-1:

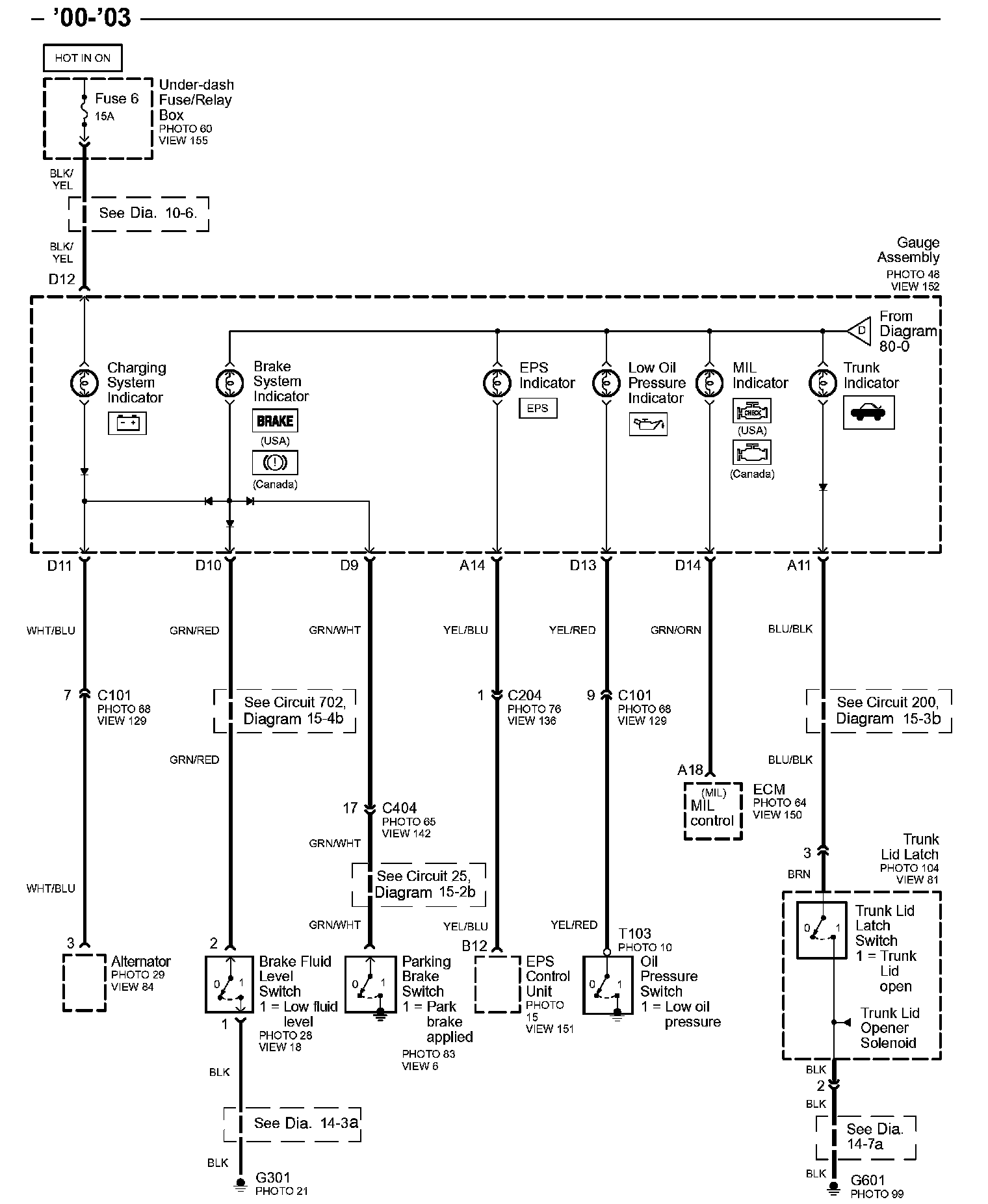

Diagram 80-2:
Diagram 80-3:
Diagram 80-4:
