Daytime Running Lamp

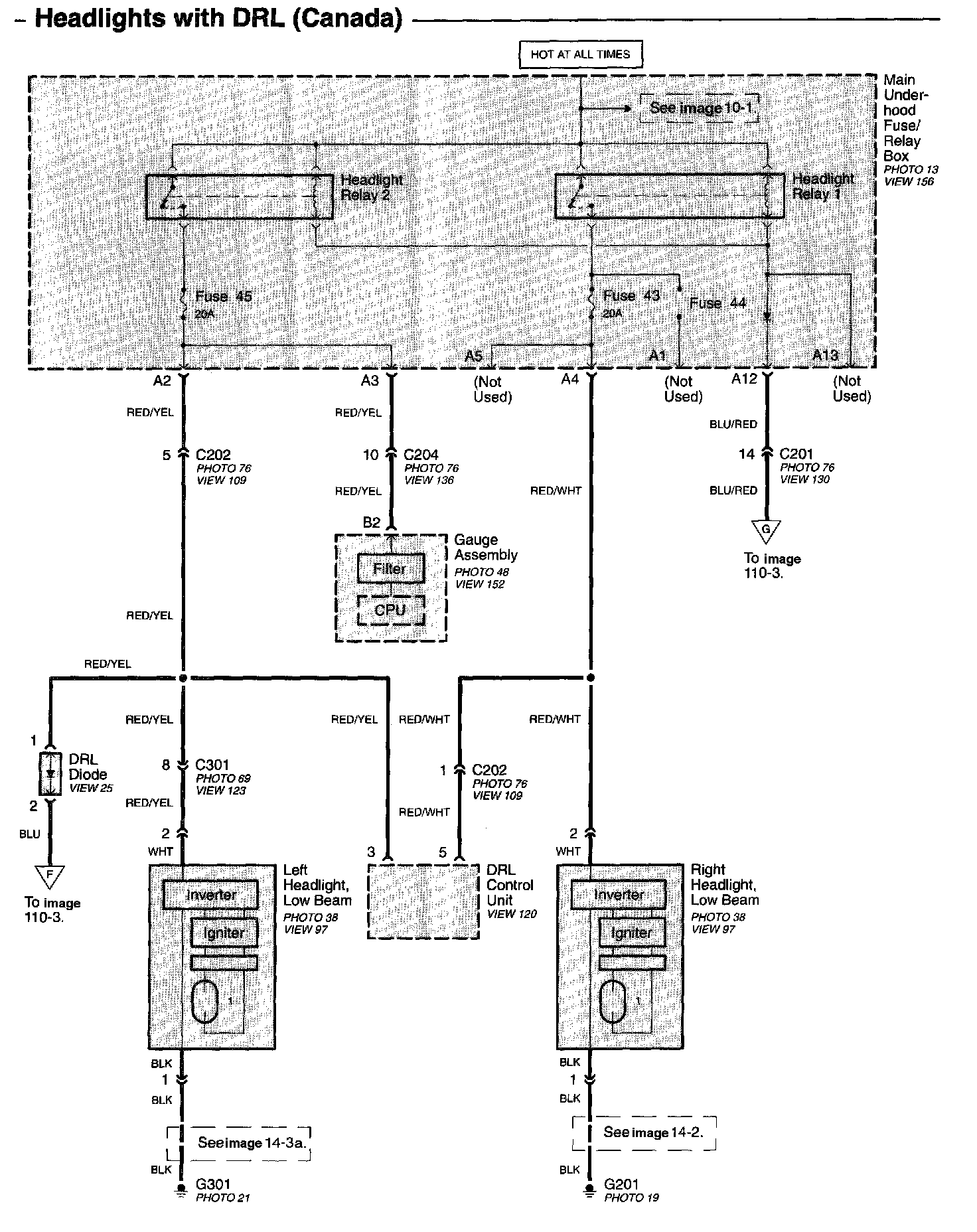

Exterior Lights (Headlights With DRL (Canada)) Image 110-2:

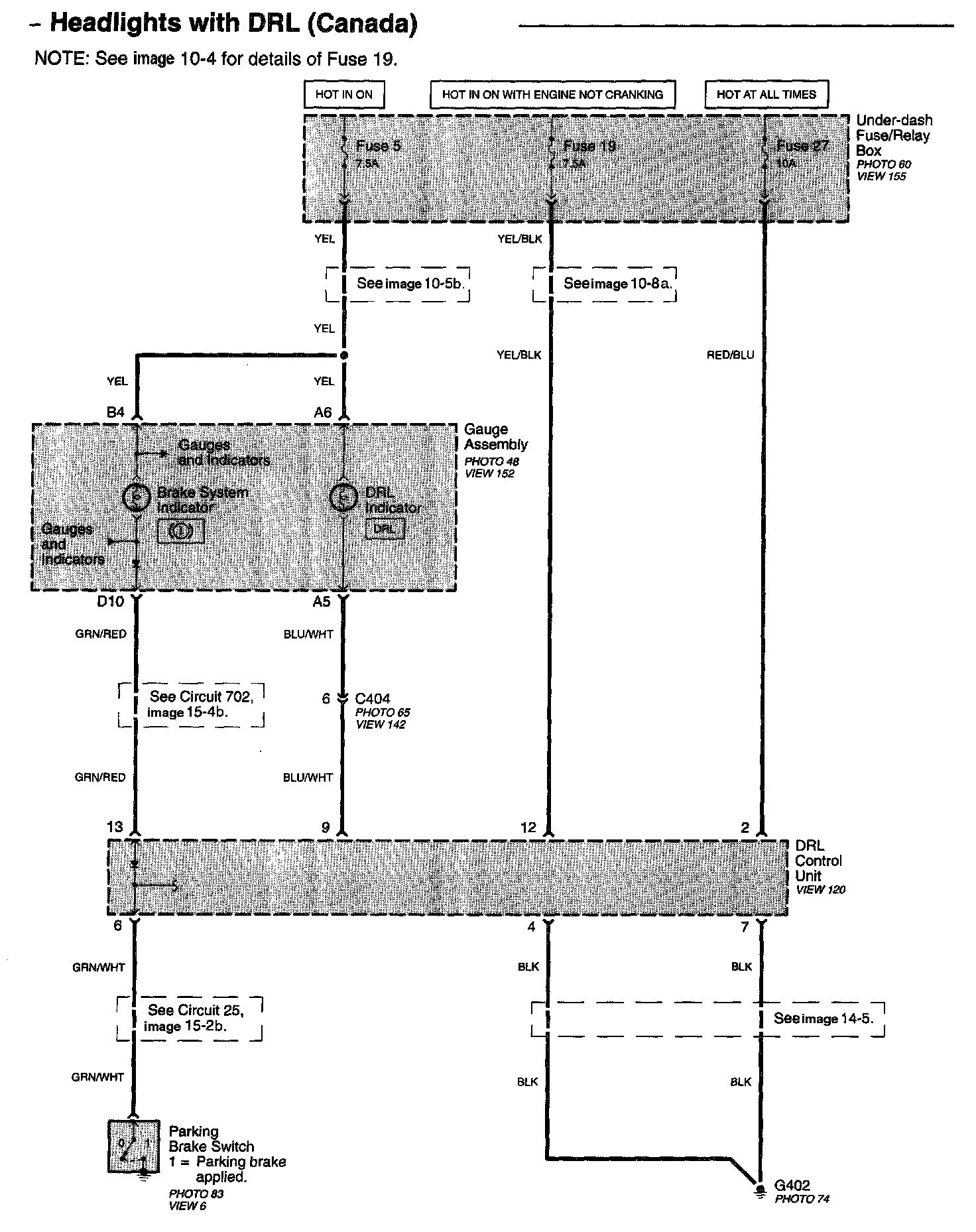

Exterior Lights (Headlights With DRL (Canada)) Image 110-3:
Exterior Lights (Headlights With DRL (Canada)) Image 110-4:
