Turn Signal Lamp: Service and Repair

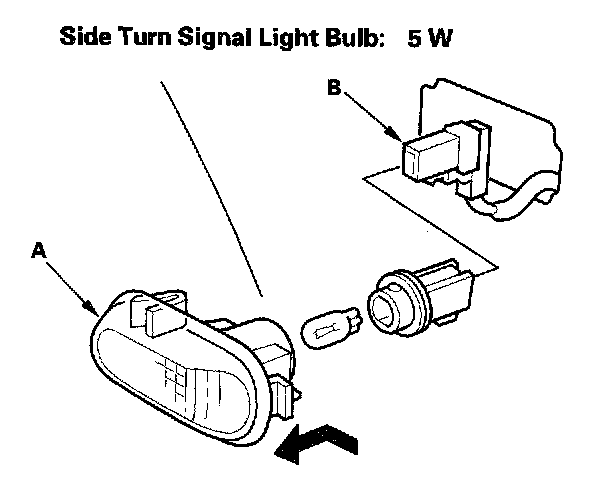

Side Turn Signal Light Replacement




1. Push the side turn signal light (A) forward, then remove it from the fender.
2. Disconnect the 2P connector (B) from the light.
