Home >> Honda >> 2002 >> S2000 L4-1997cc 2.0L DOHC (VTEC) MFI >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

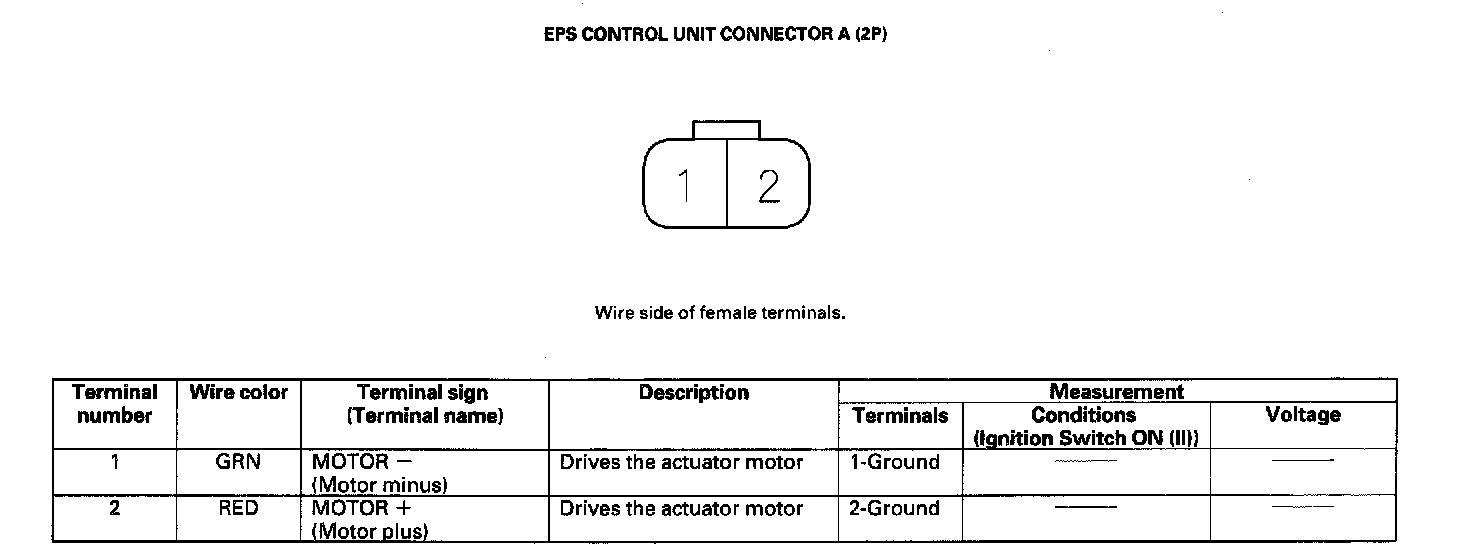

EPS Control Unit Inputs and Outputs for Connector A (2P)

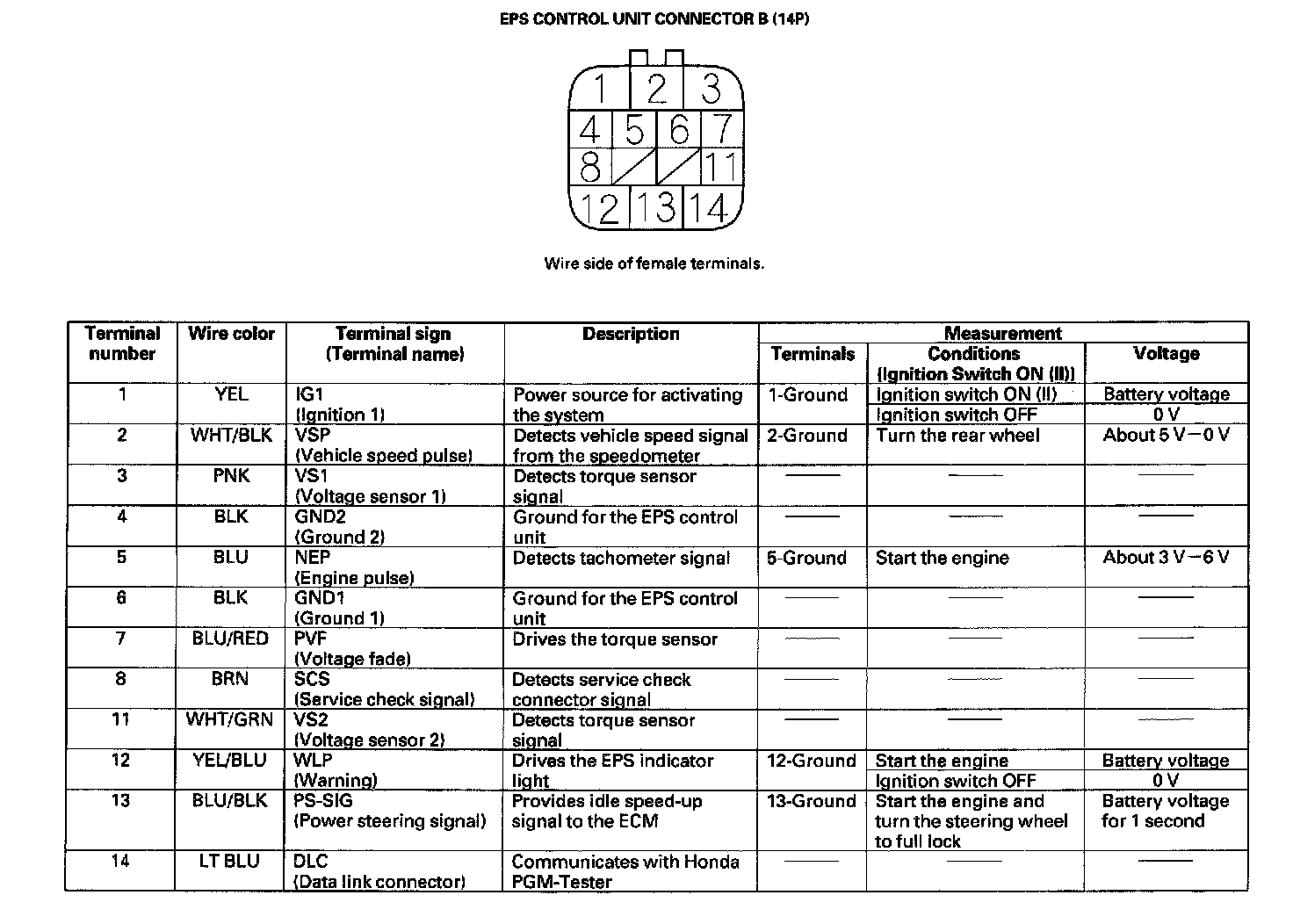

EPS Control Unit Inputs and Outputs for Connector B (14P)





EPS Control Unit Inputs and Outputs for Connector C (2P)
