Oil Seal Replacement

Replacement

Special Tools Required
^ Driver, 40 mm I.D. 07746-0030100

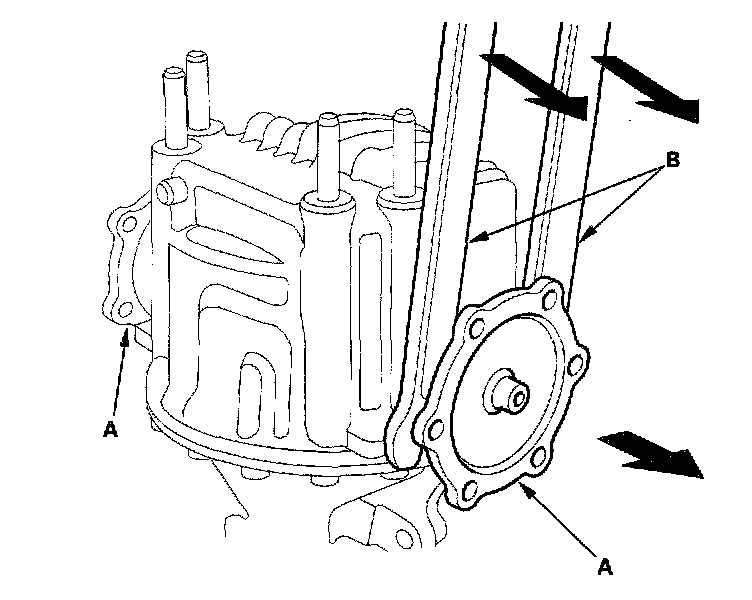

1. Remove the output shafts (A) from the differential case assembly using the pry bars (B).





2. Remove the oil seal from the differential case assembly.

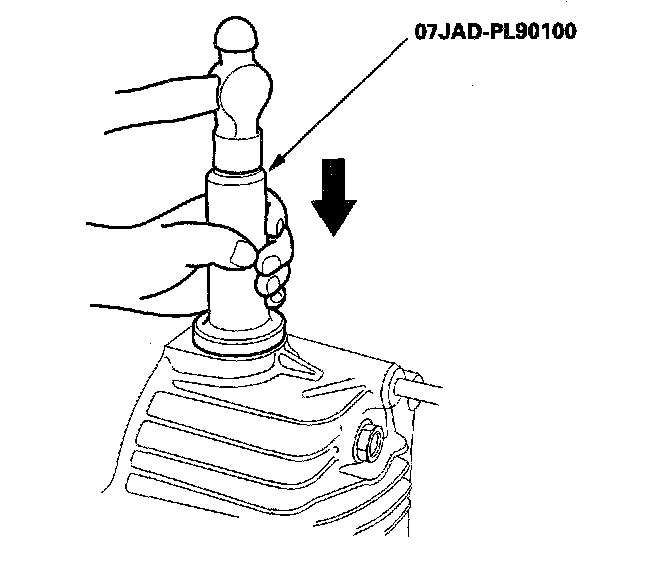

3. Install the oil seal using the special tools as shown.
4. Repeat steps 1 through 3 for the other side.
