Home
>>
Honda
>>
2003
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Clockspring Assembly / Spiral Cable, Air Bag
Clockspring Assembly / Spiral Cable, Air Bag

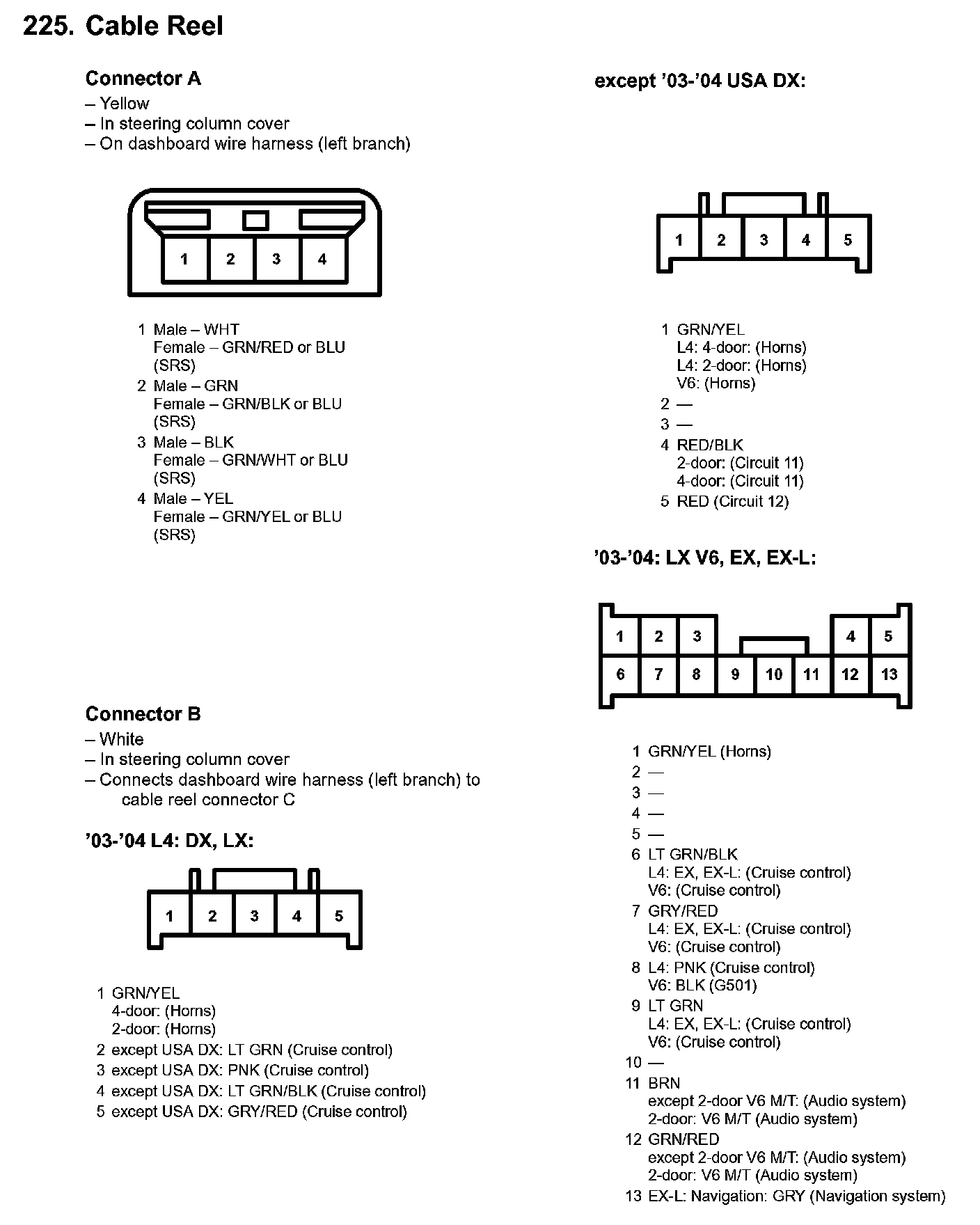

225. Cable Reel Part 1:

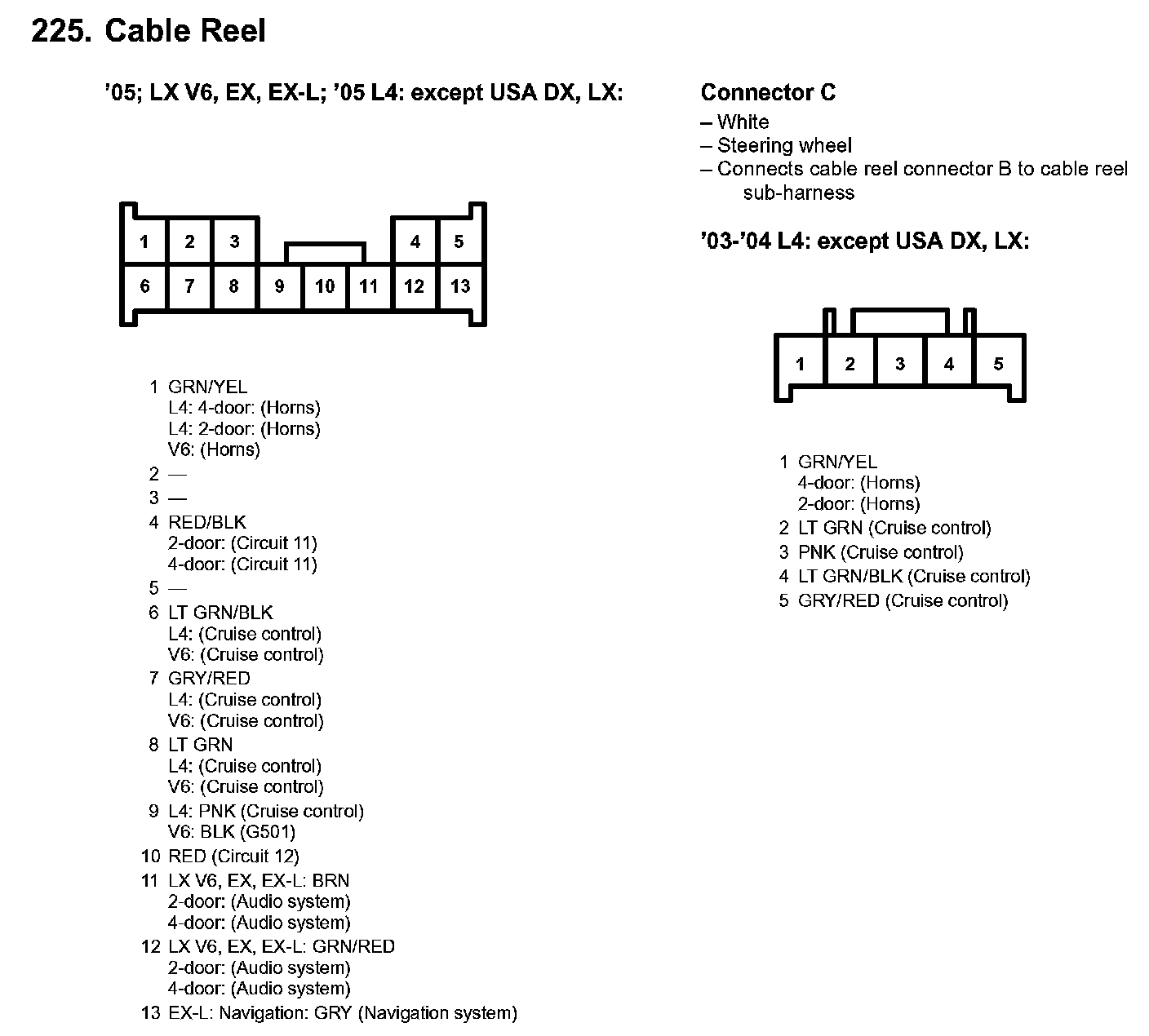

225. Cable Reel Part 2:
225. Cable Reel Part 3:
