Transmission Range Switch Subharness
Transmission Range Switch Subharness

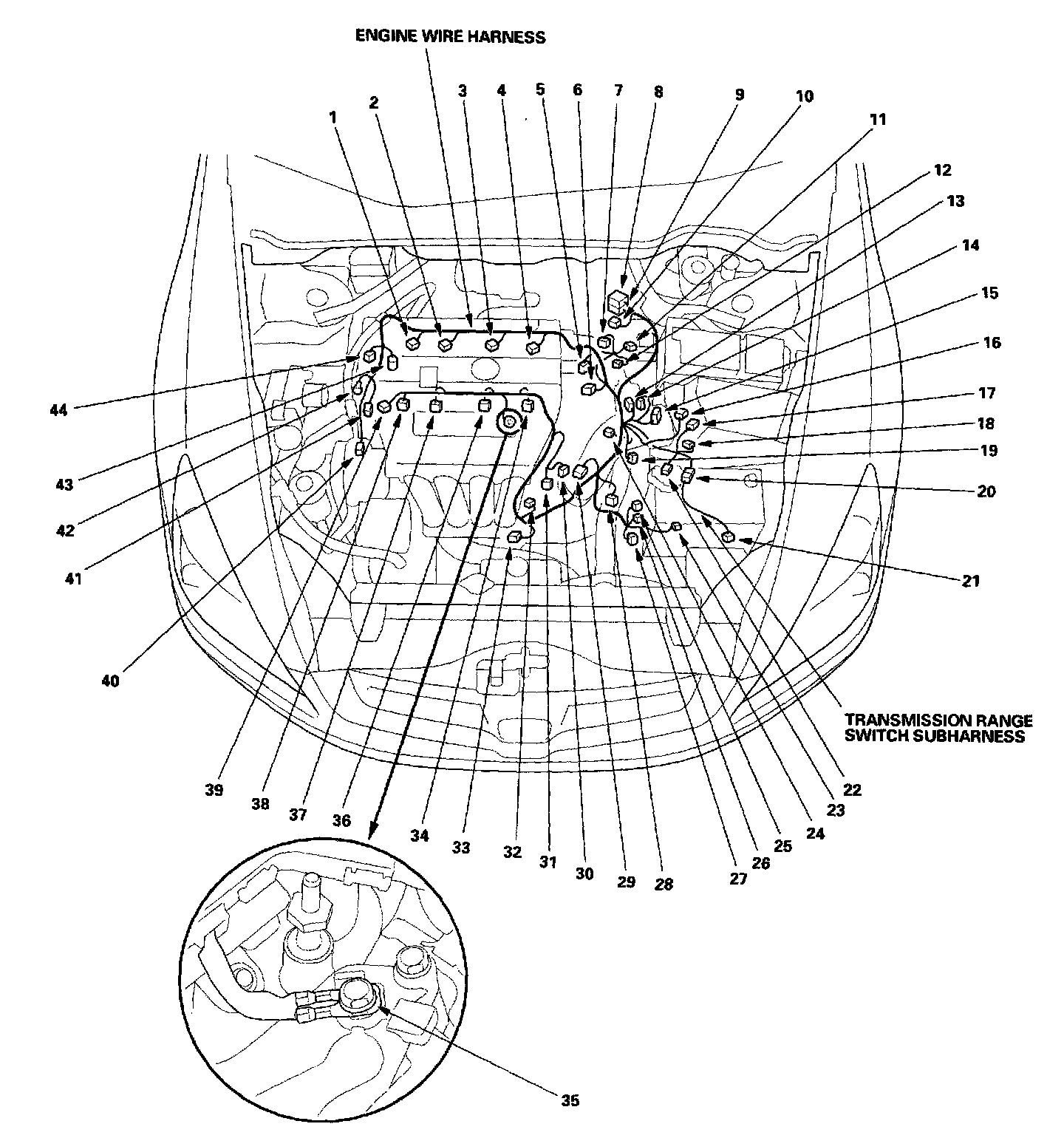

Harness Location View:

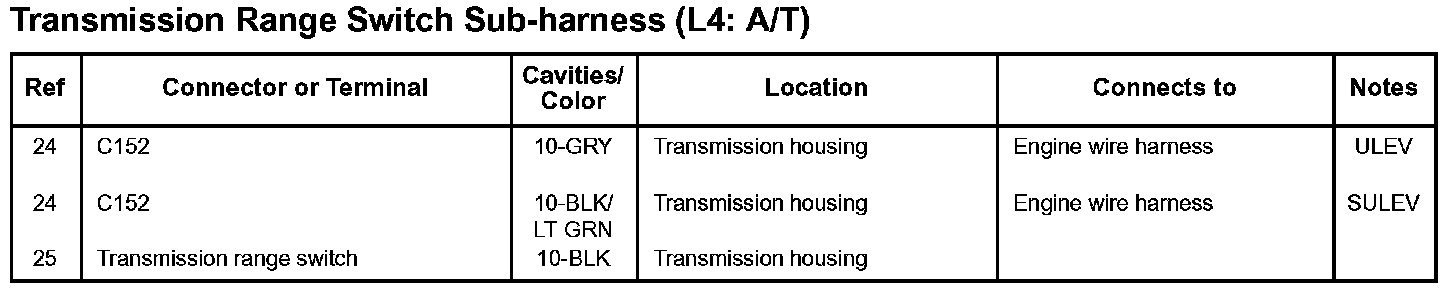

Transmission Range Switch Sub-harness (L4: A/T):
Location Harness View:

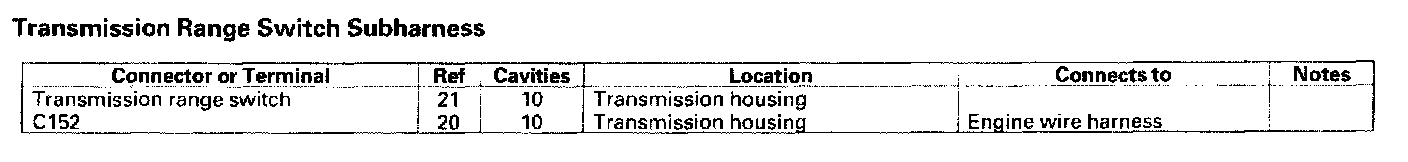

Transmission Range Switch Subharness:
