Vacuum and Vapor Hose Diagrams

Vacuum Distribution (Except SULEV Model):

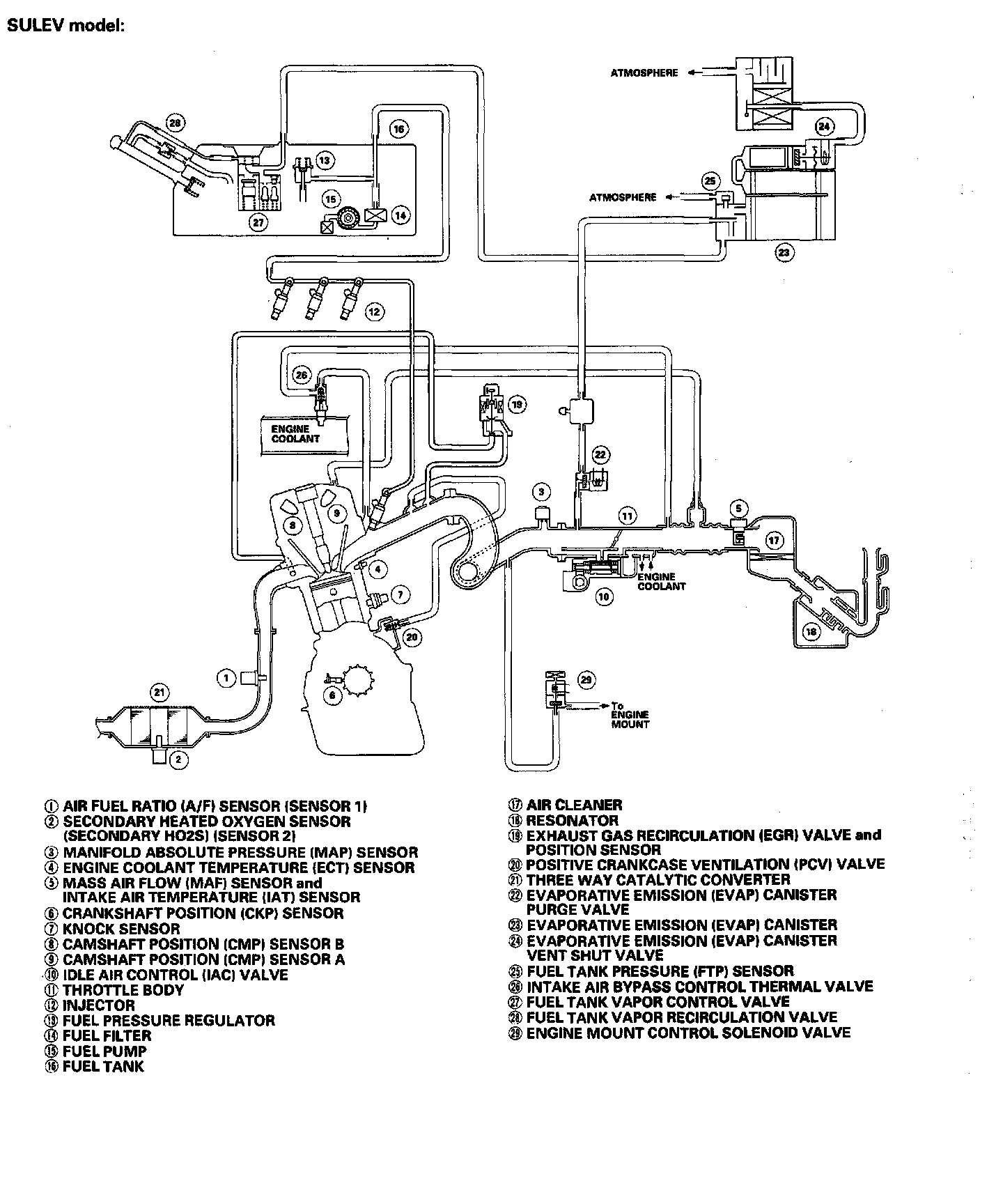

Vacuum Distribution (SULEV Model):
