Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2003
>>
Accord V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Crankshaft Position Sensor
Crankshaft Position Sensor

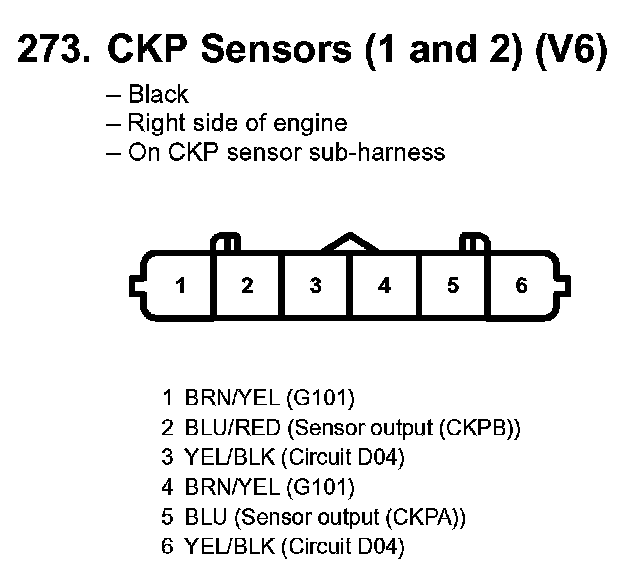

273. CKP Sensors (1 And 2):
