Electronic Throttle Actuator Relay
Electronic Throttle Actuator Relay

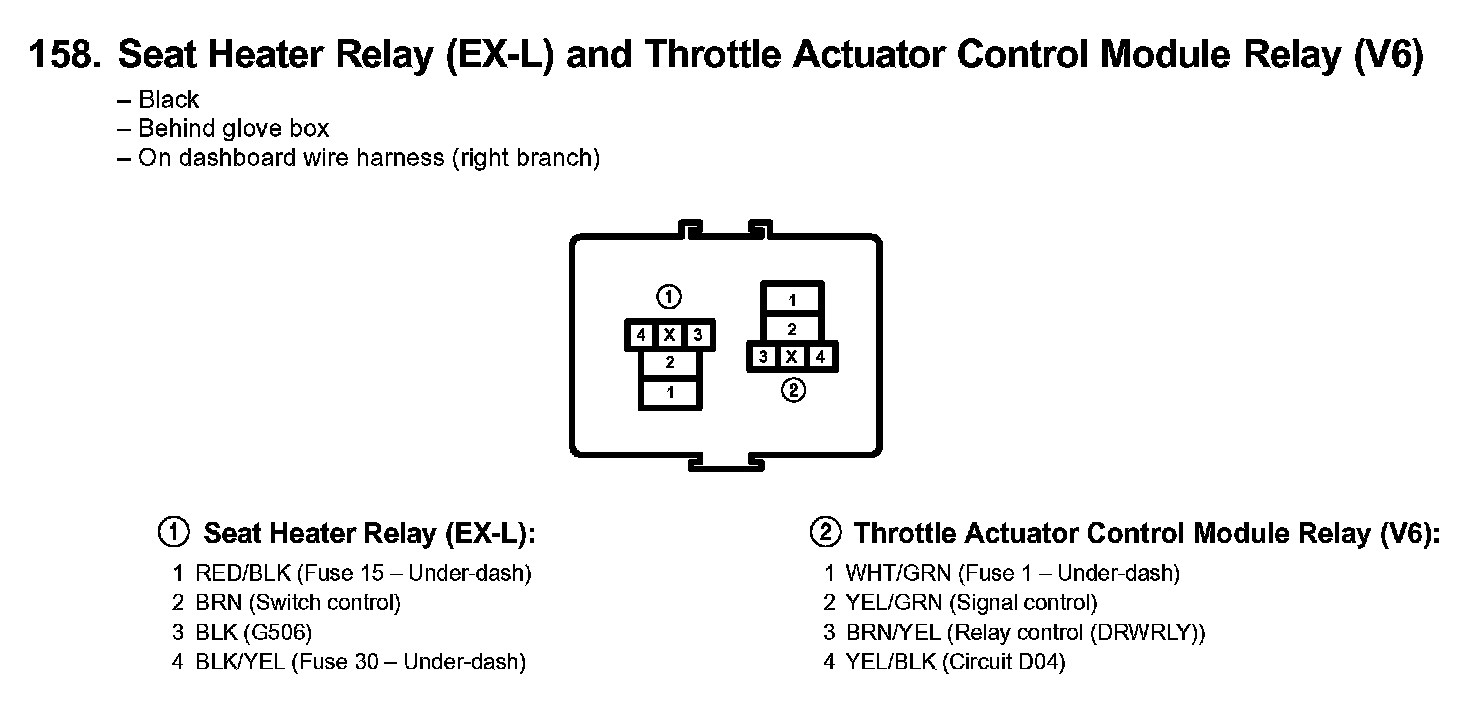

158. Seat Heater Relay (EX-L) And Throttle Actuator Control Module Relay:
