Gear Lockout Solenoid, M/T
Gear Lockout Solenoid, M/T

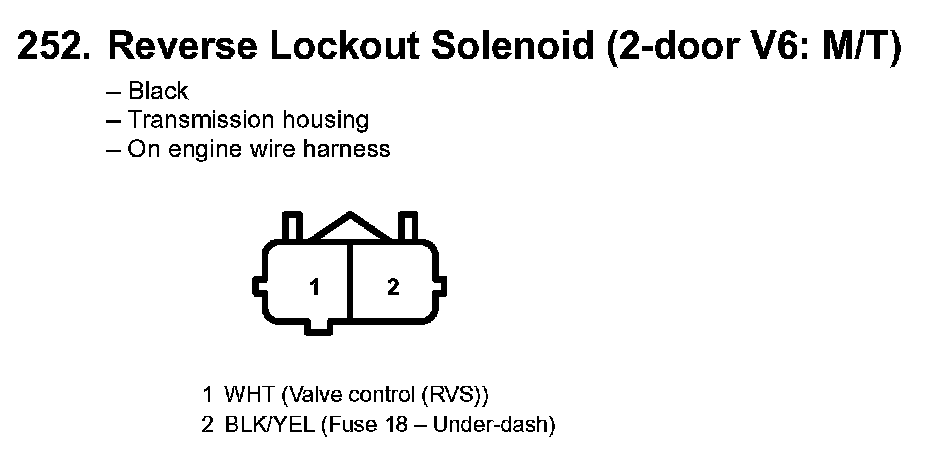

252. Reverse Lockout Solenoid (2-door V6: M/T):
