Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay

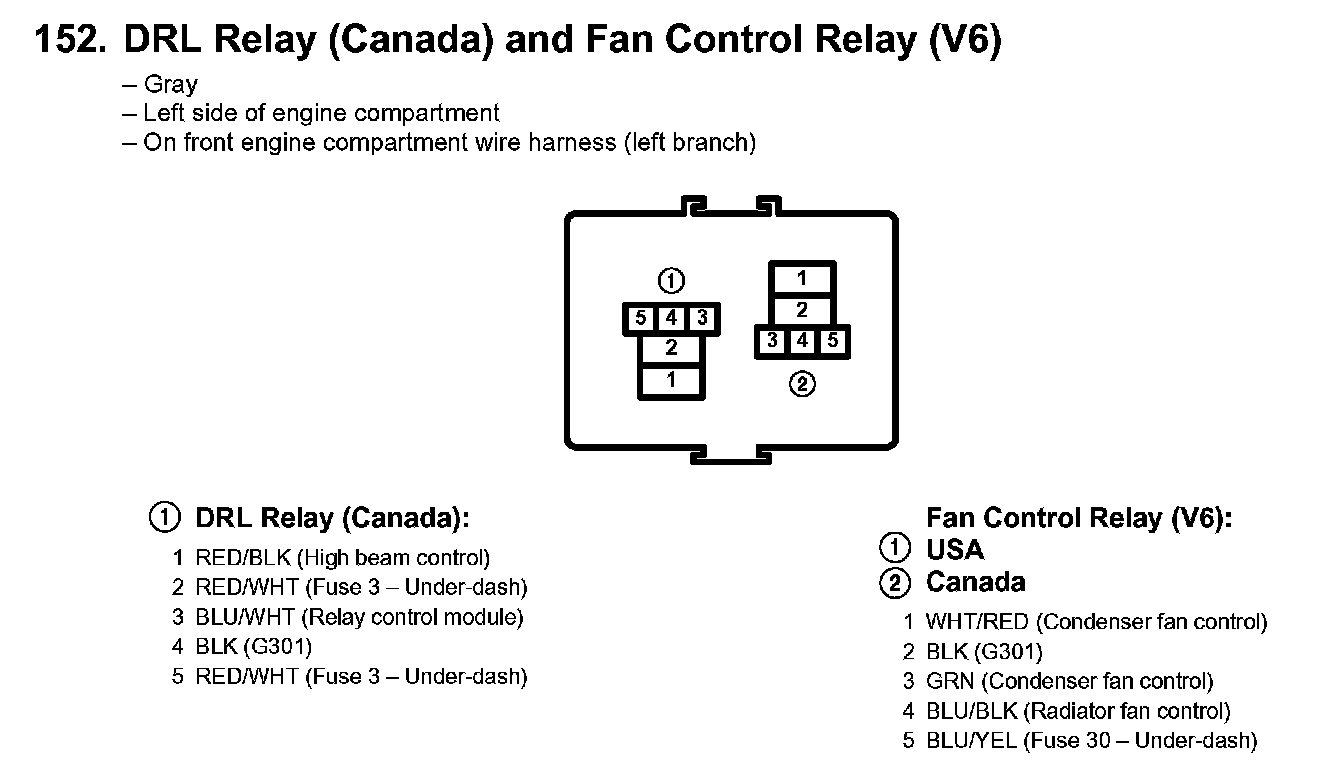

152. DRL Relay (Canada) And Fan Control Relay (V6):
