Home >> Honda >> 2003 >> Accord V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Torque Converter Clutch, A/T

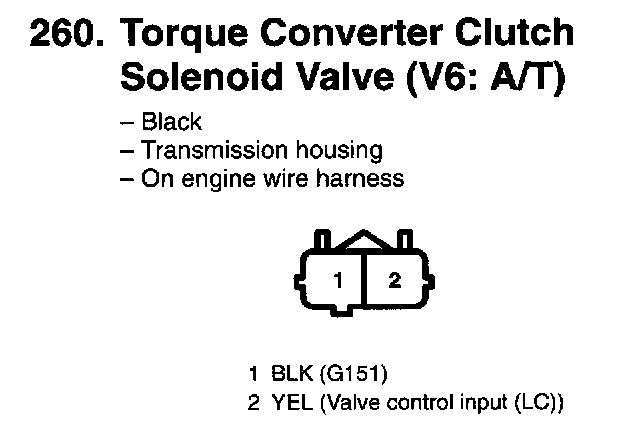

Torque Converter Clutch, A/T

(V6: A/T):
