Home
>>
Honda
>>
2003
>>
Accord V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Variable Induction Control Valve
Variable Induction Control Valve

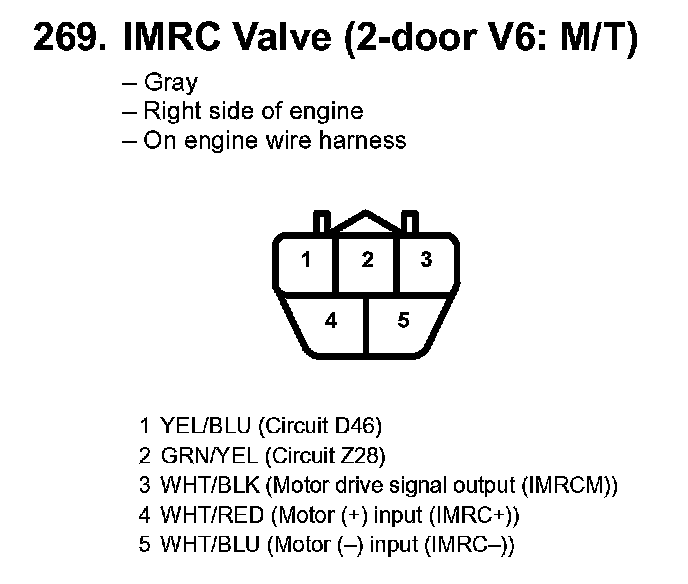

269. IMRC Valve (2-door V6: M/T):
