Seat Position Sensor Harness
Seat Position Sensor Harness

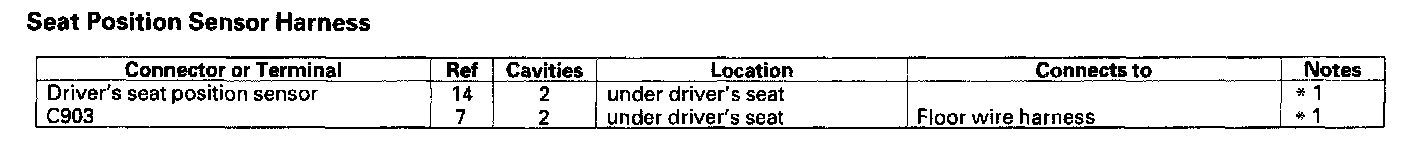

Seat Position Sensor Harness:

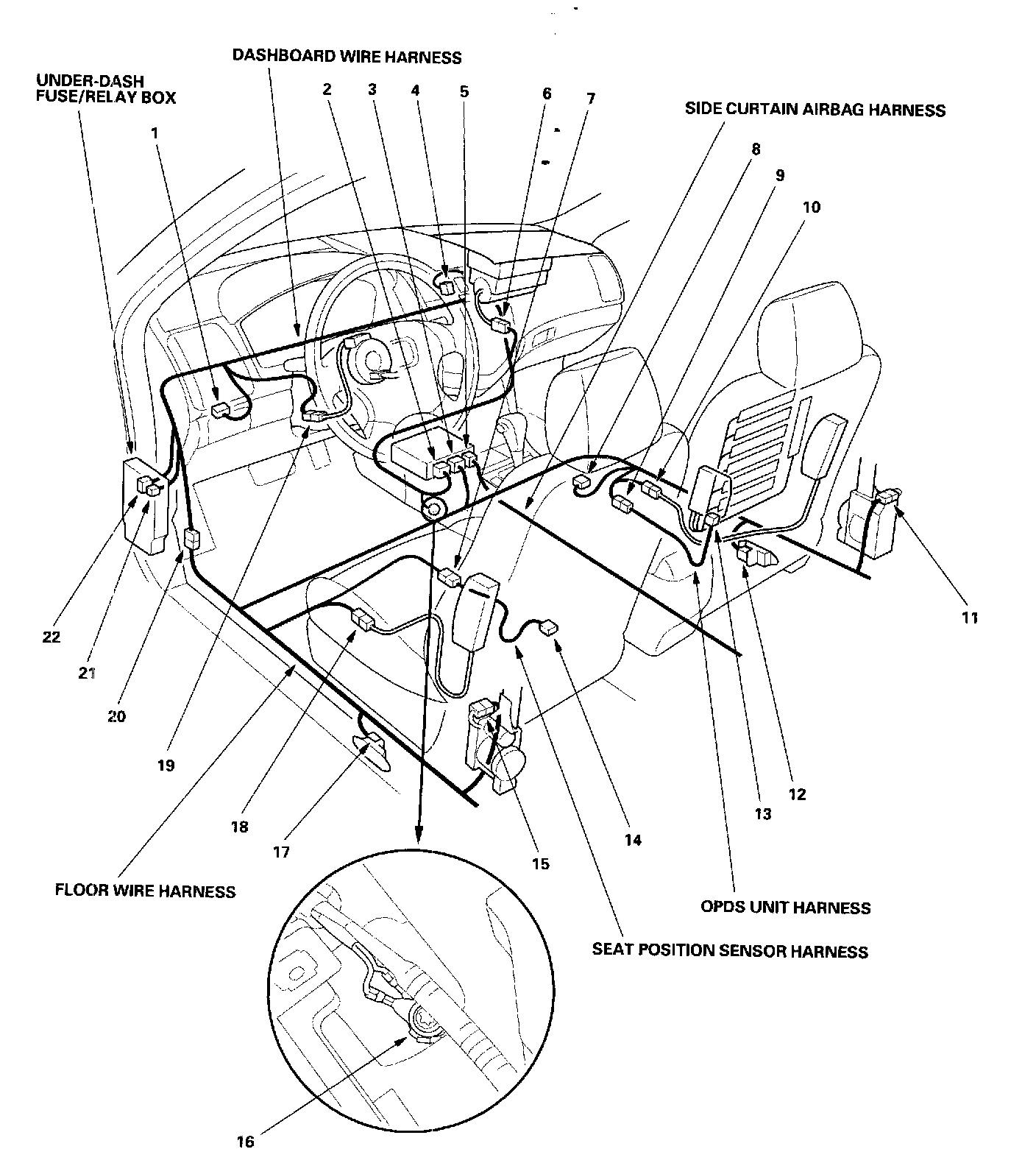

Harness Location View:
