Electrical Diagrams

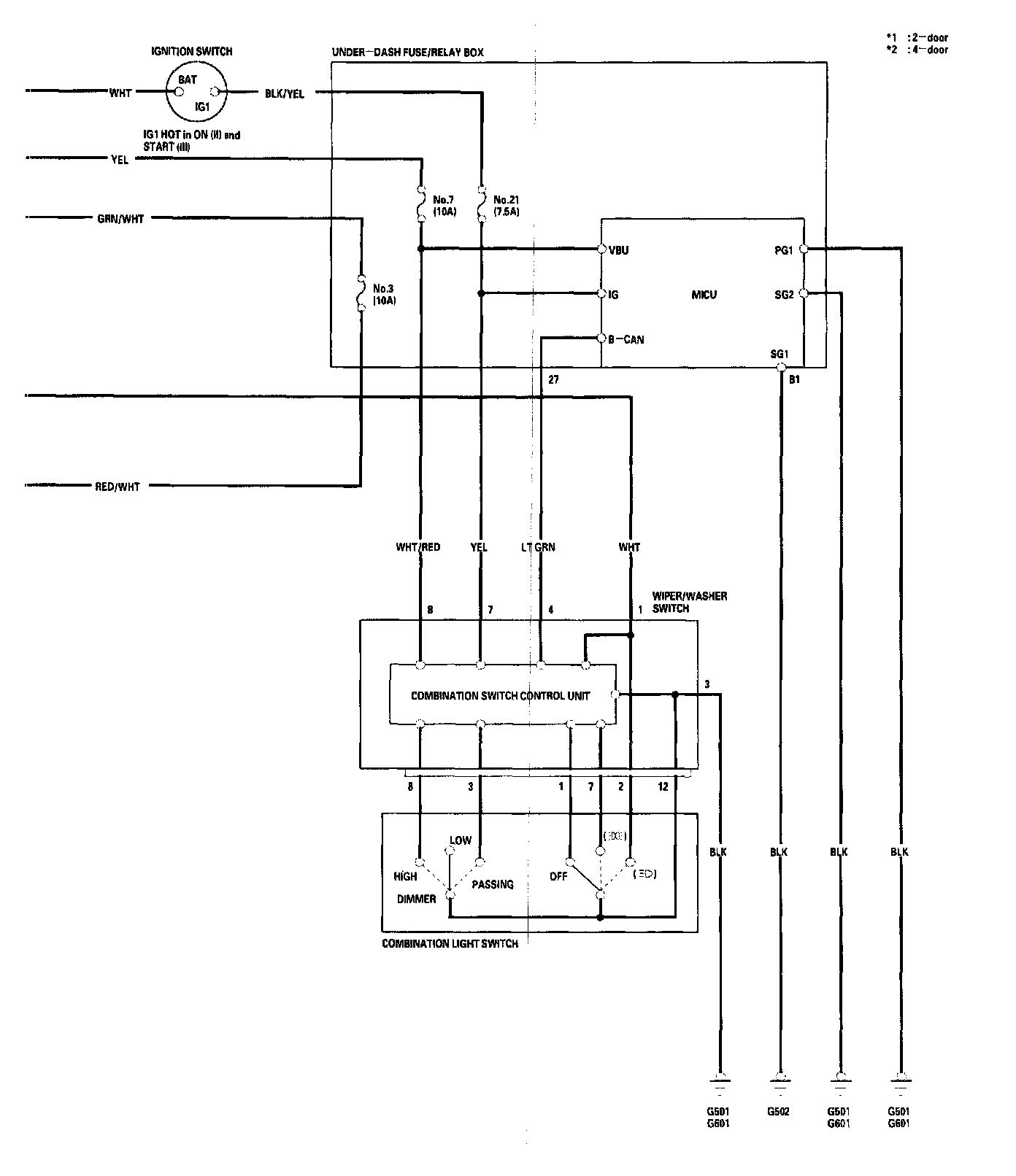

Exterior Lights - Circuit Diagram (USA) Part 1:



Exterior Lights - Circuit Diagram (USA) Part 2:



Exterior Lights - Circuit Diagram (Canada) Part 1:



Exterior Lights - Circuit Diagram (Canada) Part 2:
