Home >> Honda >> 2003 >> Accord V6-3.0L >> Repair and Diagnosis >> Locations >> Harness Locations >> EVAP Canister Vent Shut Valve Sub-Harness (SULEV)

EVAP Canister Vent Shut Valve Sub-Harness (SULEV)

Harness Location View:



Harness Location View:

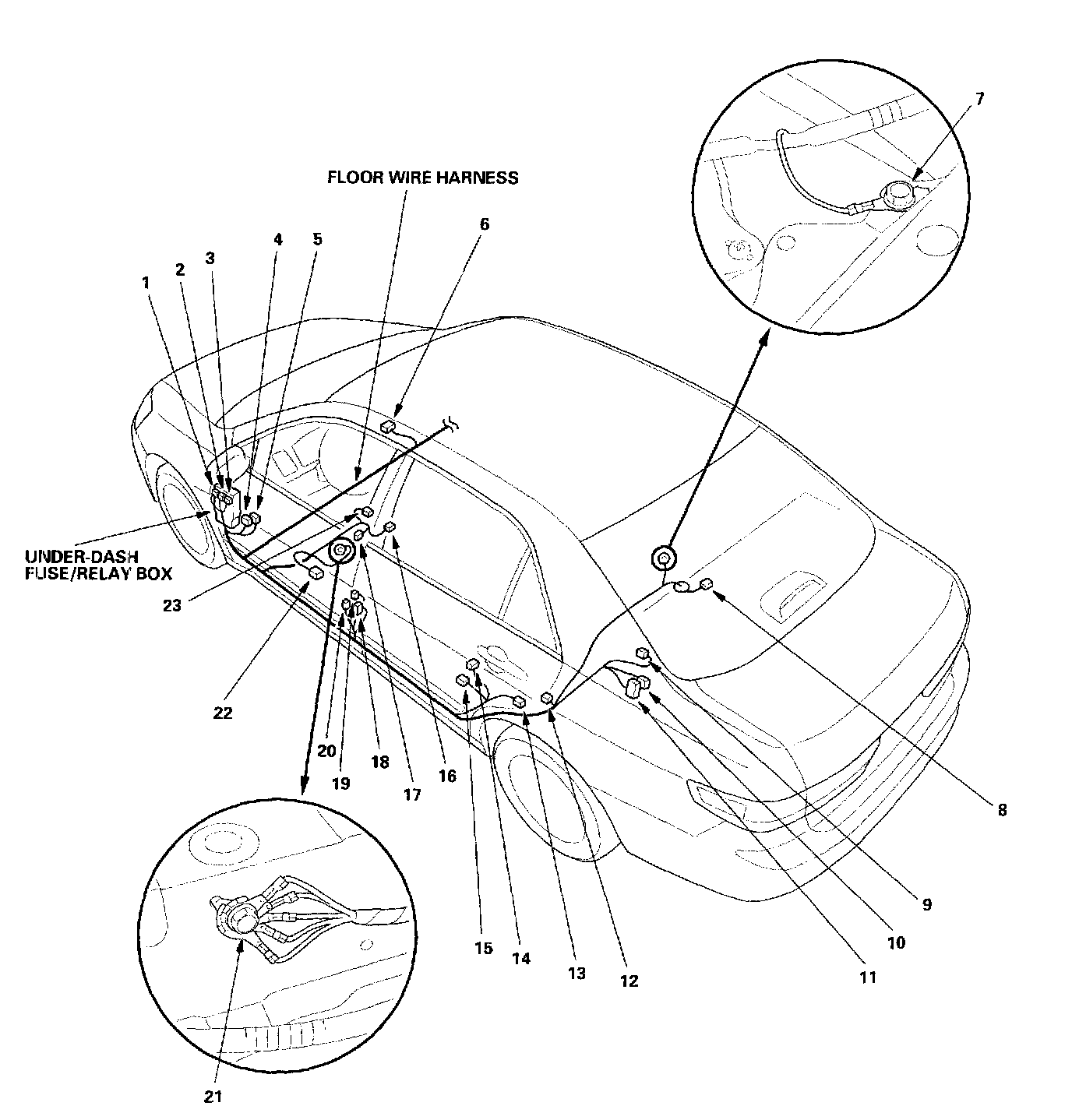

Floor Wire Harness (left Side) (4-door):

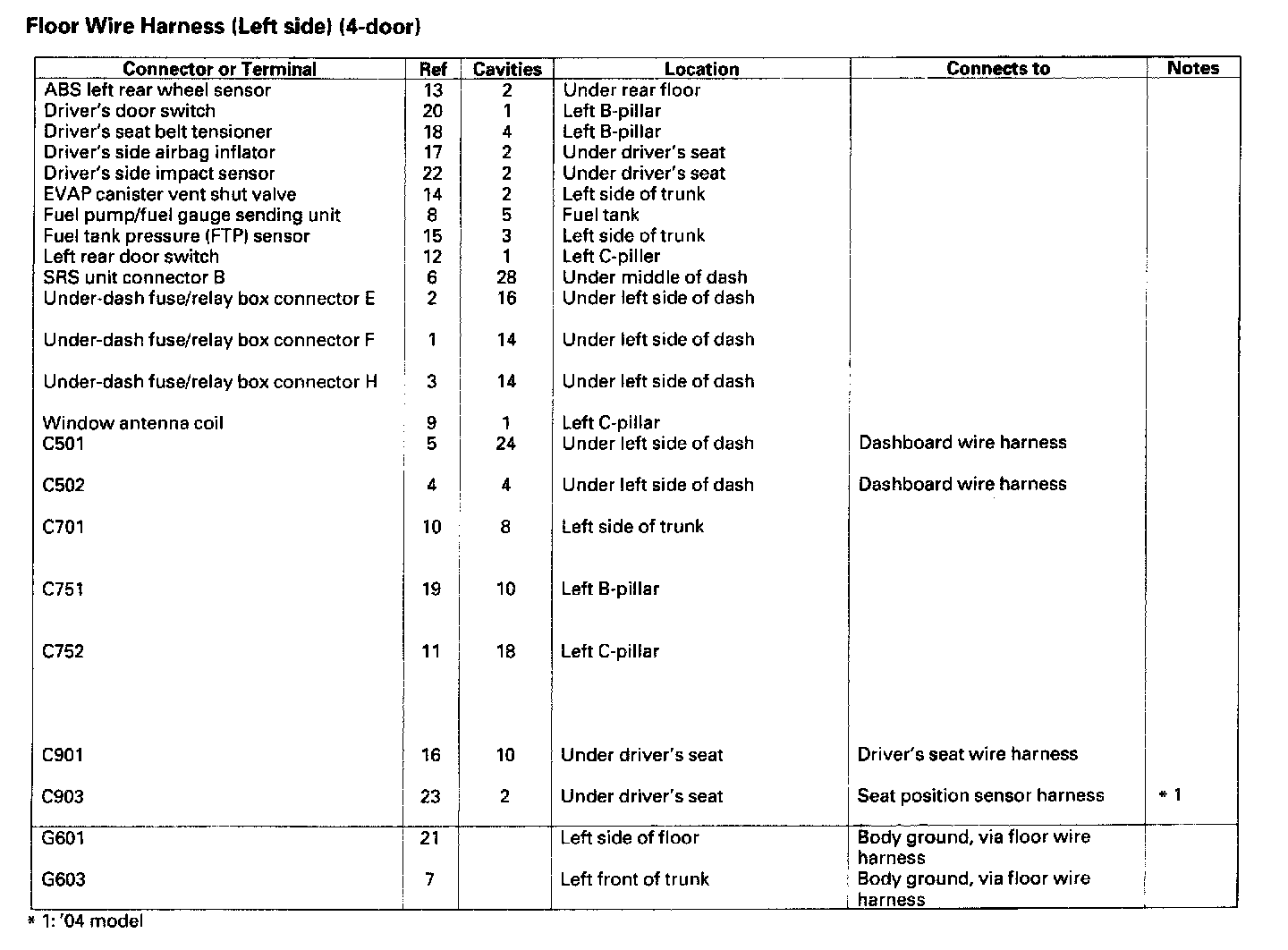

Floor Wire Harness (Left Side) (4-door):
