Trunk / Liftgate: Testing and Inspection
Trunk Latch Switch Test1. Open the trunk lid.

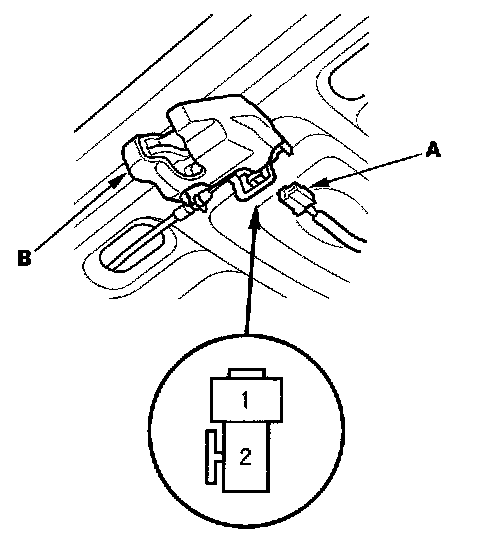

2. Disconnect the 2P connector (A) from the trunk lid latch (B).
3. Check for continuity between the No.1 and No.2 terminals.
- There should be continuity with the trunk lid open.
- There should be no continuity with the trunk lid closed.
4. If the continuity is not as specified, replace the trunk lid latch switch.
