Power Mirror

Power Mirror Replacement

1. Remove the door glass fully.

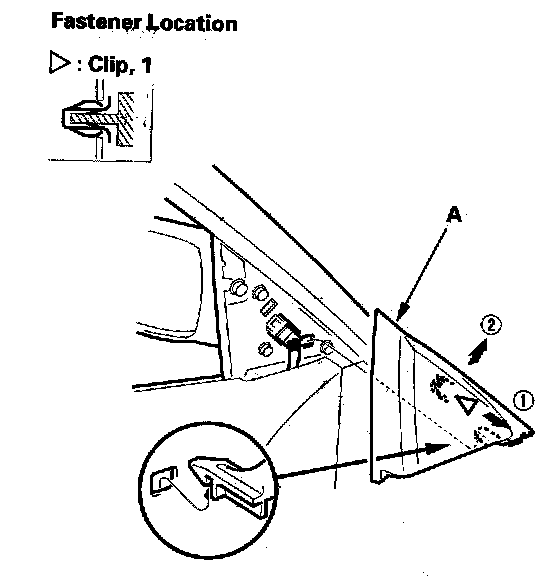

2. Carefully pry out the mirror mount cover (A) by hand in the sequence shown.




3. Disconnect the connector (A).
4. While holding the mirror, remove the nuts securing the mirror.

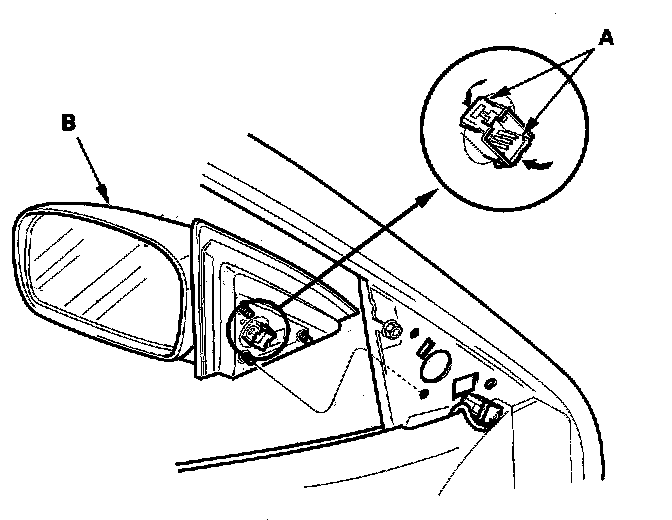

5. While holding the mirror/ push in on the connector clips (A), then push out to remove the mirror (B). Take care not to scratch the door.
6. Install the mirror in the reverse order of removal, and make sure the connector is plugged in properly.
