Cruise Control Servo Cable: Service and Repair

Actuator/Cable Replacement

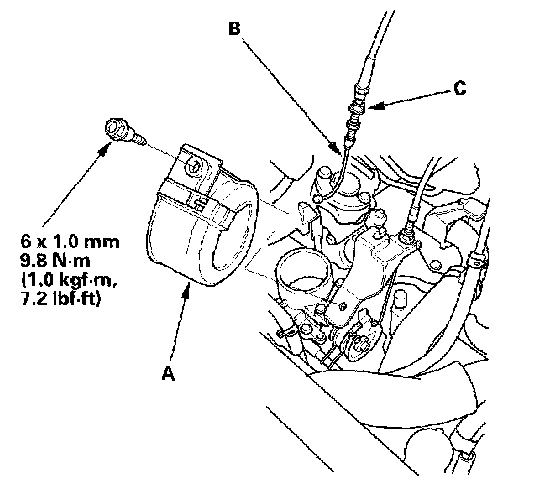

1. Remove the throttle cable cover (A), fully open the cruise control link by hand, then remove the cruise control cable (B) from link. Loosen the lockout (C), and remove the cable from the bracket.

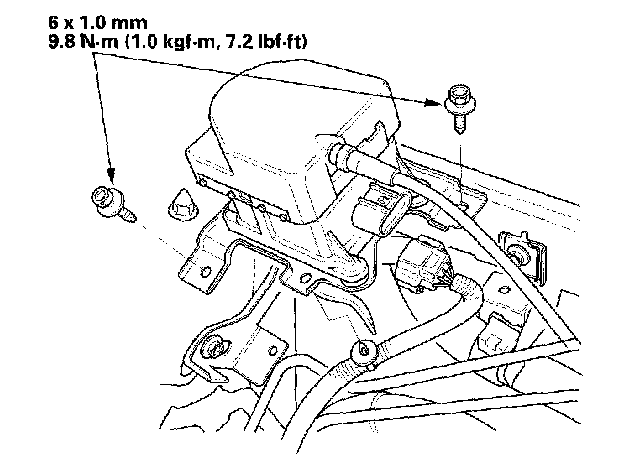

2. Disconnect the 4P connector, and remove the two bolts securing the actuator.

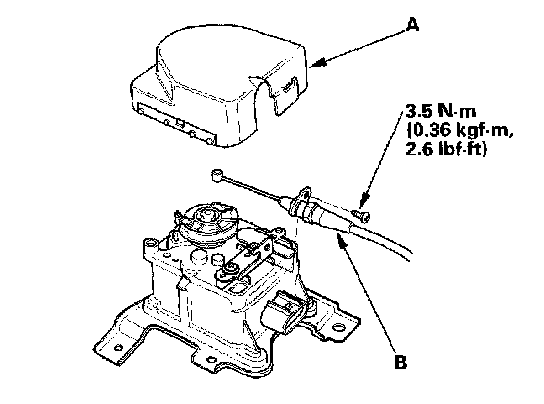

3. Remove the actuator cover (A), then remove the actuator cable (B) from the actuator.
4. Install in the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable.
