Home >> Honda >> 2003 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door Window Motor

Front Door Window Motor

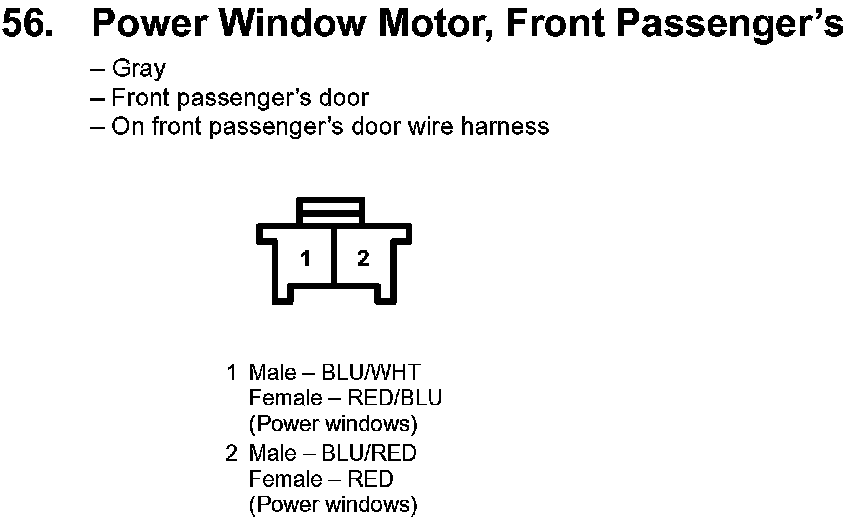

56. Power Window Motor, Front Passenger's:



138. Power Window Motor, Driver's:
