Home
>>
Honda
>>
2003
>>
Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Tank Pressure Sensor
Fuel Tank Pressure Sensor

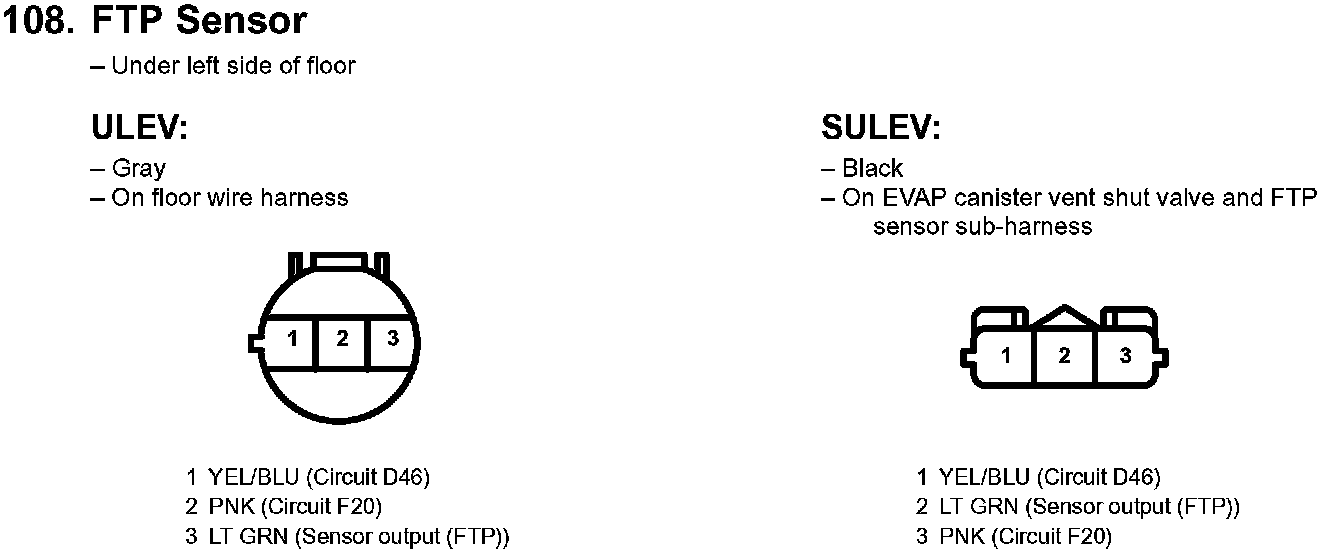

108. FTP Sensor:
