Connector Views
>>
Headlamp
>>
Low Beam Relay
Low Beam Relay

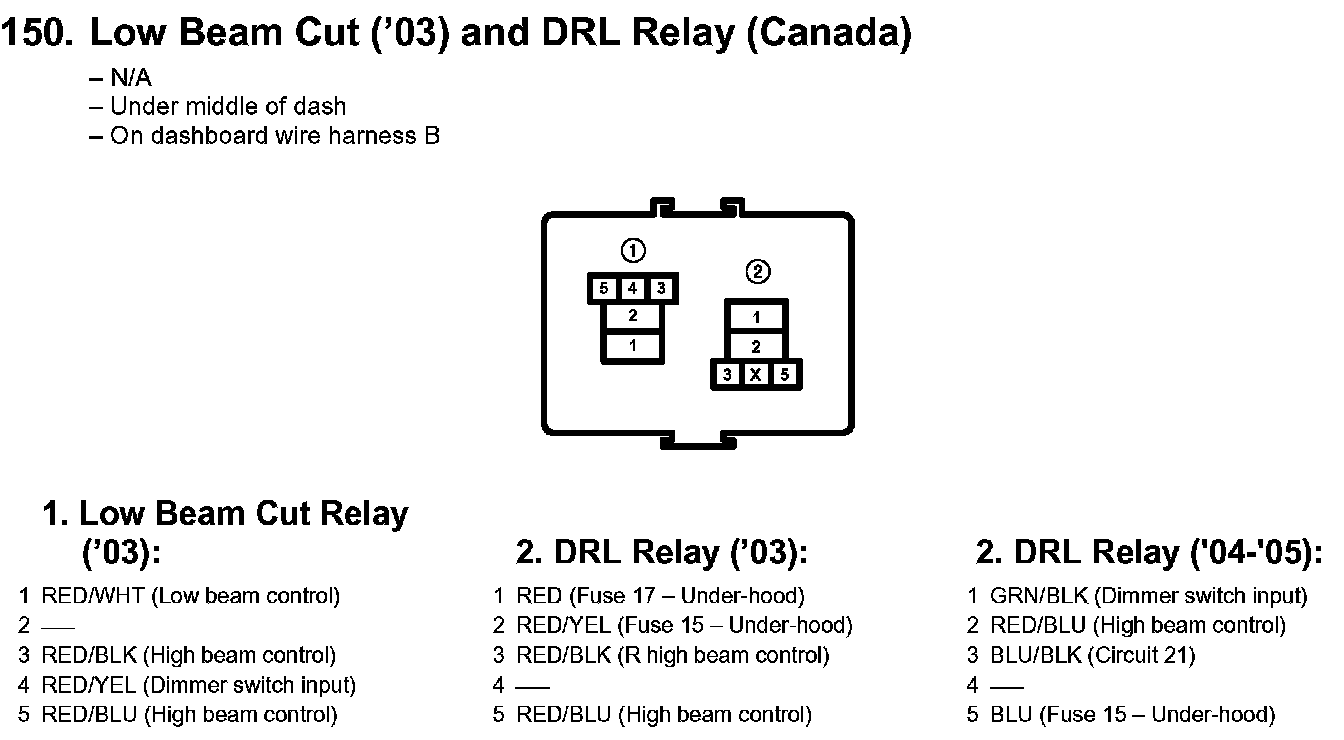

150. Low Beam Cut ('03) And DRL Relay (Canada):
