Power Door Lock Actuator

30. Door Lock Actuator, Driver's:

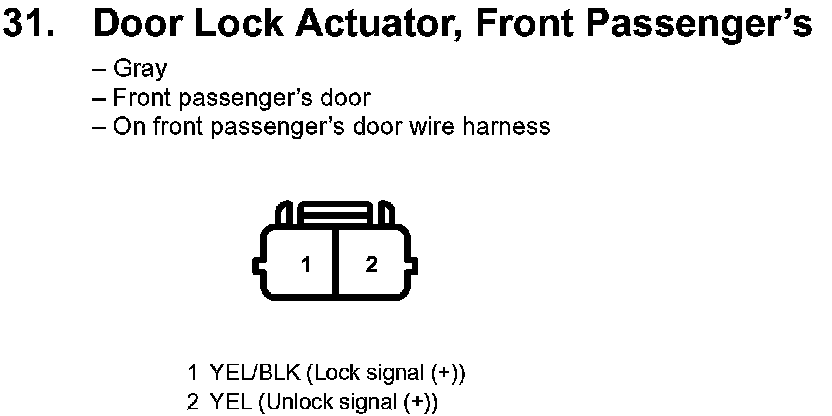

31. Door Lock Actuator, Front Passenger's:



32. Door Lock Actuator, Left Rear:



33. Door Lock Actuator, Right Rear:
