Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
Speaker

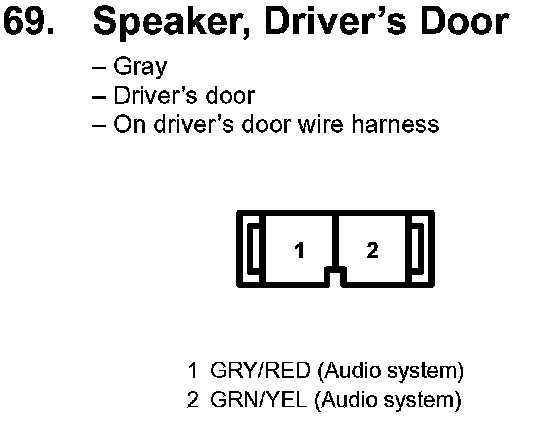

69. Speaker, Driver's Door:

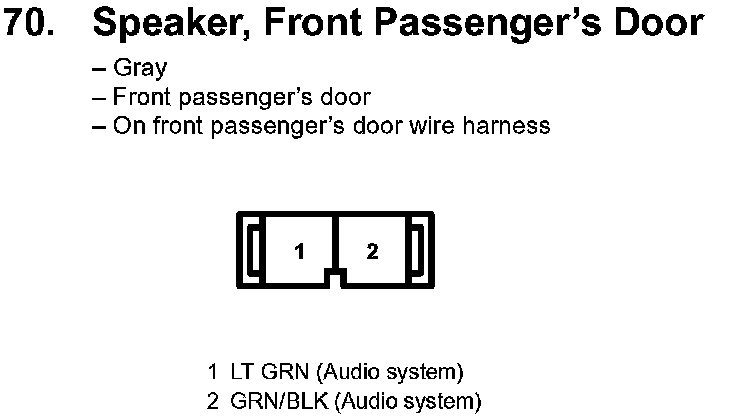

70. Speaker, Front Passenger's Door:
71. Speaker, Left Rear:
72. Speaker, Right Rear:
